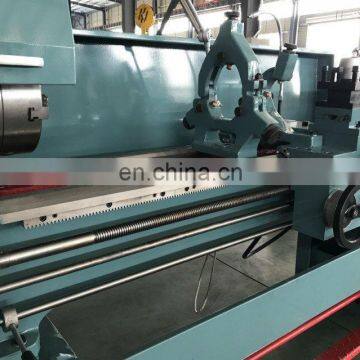

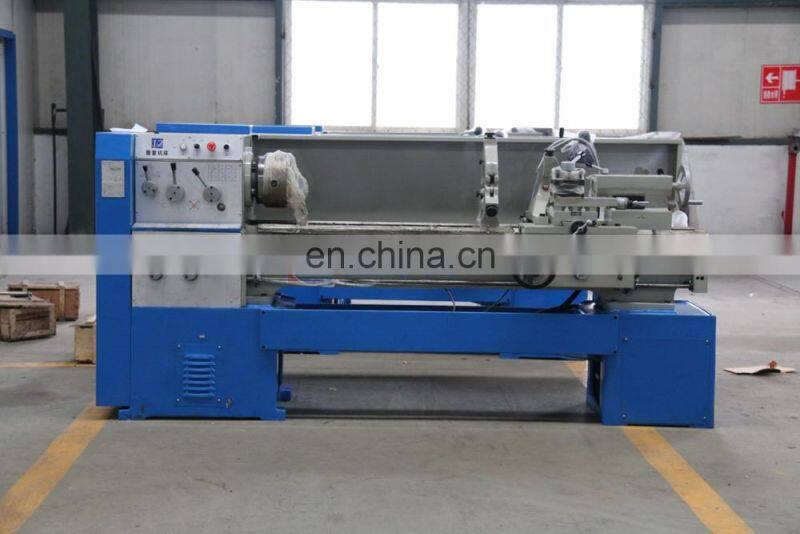

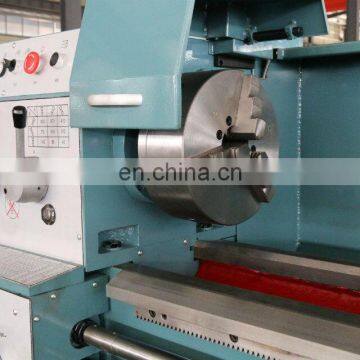

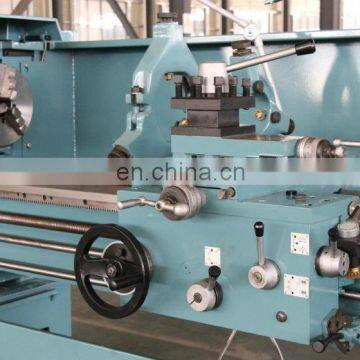

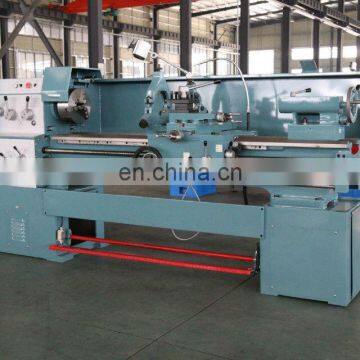

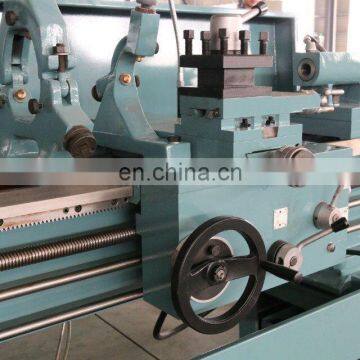

Precision Conventional C6260 Gap Bed Lathe Machine for sale
Product description:
1.Bed rail by super audio quenching and precision grinding.
2.Precision grinding of the main shaft box, low noise.
3.More thread type.
4.Electrical safety performance is good, high reliability.
5.With electromagnetic brake, the color of available options.
Product main technical Specifications:
Specifications | C6260 | |
Capacity | Max. Swing over bed | 600mm |
Max. rotating diameter | 400mm | |
Max. swing over gap | 820mm | |
Center distance | 750,1000,1500,2000mm | |
Spindle hole | 52mm(82mm) | |
Spindle | Spindle nose | ISO-C6(C8) |
Spindle tap | MT6 | |
Spindle speeds(Number) | 36-1600rpm (12 Steps) | |
Feed | Metric threads range(Kinds) | 0.5-14mm (18 Kinds) |
Inch threads range(Kinds) | 2-40/inch (28 Kinds) | |
Module threads range(Kinds) | 0.25-3.5mπ (17 Kinds) | |
Compound rest travel | 150mm | |
Cross slide travel | 180mm | |
Cross-section size of tool shank | 22×22mm2 | |
Tailstock | Dia. of tailstock sleeve | 75mm |
Taper of tailstock sleeve | MT5 | |
Travel of tailstock sleeve | 160mm | |
Main motor power | 7.5kw | |
Machine size (L*W*H mm) | Overall dimensions for750mm | 2100×1150×1550mm |
Overall dimensions for1000mm | 2350×1150×1550mm | |
Overall dimensions for1500mm | 2850×1150×1550mm | |
Overall dimensions for2000mm | 3350×1150×1550mm | |
Weight(kg) | Weight for 750mm | 1800kg |
Weight for 1000mm | 1900kg | |
Weight for 1500mm | 2100kg | |
Weight for 2000mm | 2300kg | |
| | | |
| C6136 C6140 Lathe Machine Price | C6261 Gap Bed Lathe Price | CW6180E Heavy Duty Lathe Price |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprisewith glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
"THE BEST QUALITY ,CREATED BY LUZHONG"
All of our machines are subject to strict quality control.Especially in the production process.
The Machines like lathe machine , cnc lathe machine ,cnc milling machine , cnc turning center ,Radial drilling machines, drilling milling machines ... ... have production lines as below:
1.High strength Casting making .
2.Processing production.
3.High precision quenching process.
4.Assembling process.
5.Spray paint process.
6.And also the finished product come out .
Our Company Tengzhou Luzhong Machine Tool Co.,Ltd has the certifications as :CE ,ISO ,SGS ,TUV ,SONCAP certificates and on on .
In the past years , we joint the machine exhibition every year .We have experiences in servicing customers for over 20 years .
1.Why choose us ?
We are a cnc machine manufacturer can provide the high quality, competitive price and good after-sale service.
We have our own technical team, can provide the customized solutions according to your request( your workpieces ,Your drawings and so on)
We go the full 24-hour performance and accuracy test before shipment.
2.What machines can be available in your factory?
We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
3.What certifications you have ?
We have certifications like:CE certifications
CO certifications
ISO certifications and also CIQ certifications and so on .
4.What payment terms you can accept?
Mostly using TT.
But LC also available
5.What services you can offer ?
Warranty for one year .
English manual and video for machine using and maintenance.
OEM,ODM is available in our factory.
24 hours online technical service
Engineers available to service machinery overseas
Free customers training in our plant.
