HQ400/3V Variable Speed Combination Lathe Mill Drill Machine

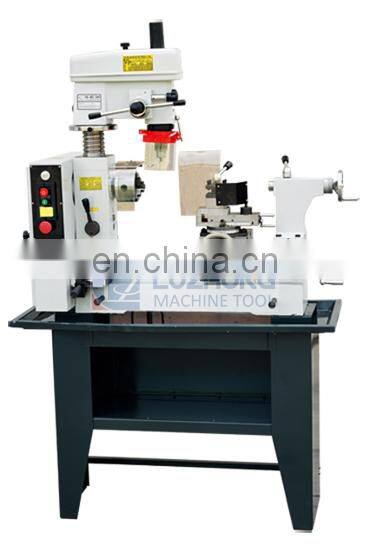

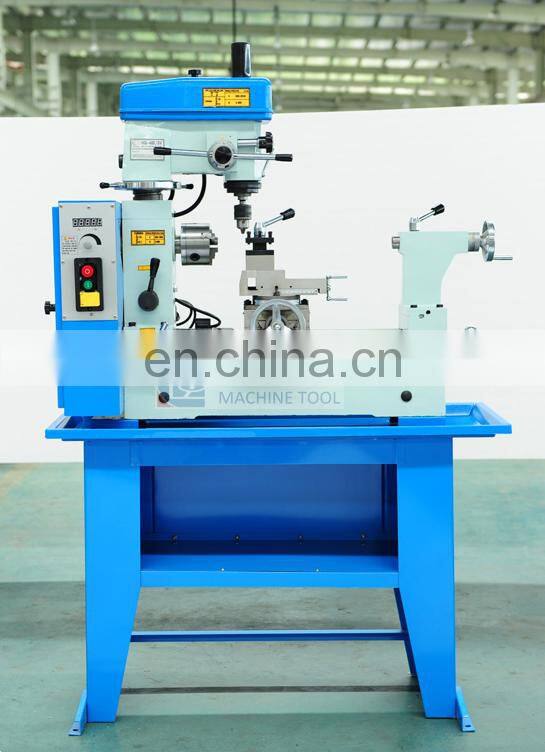

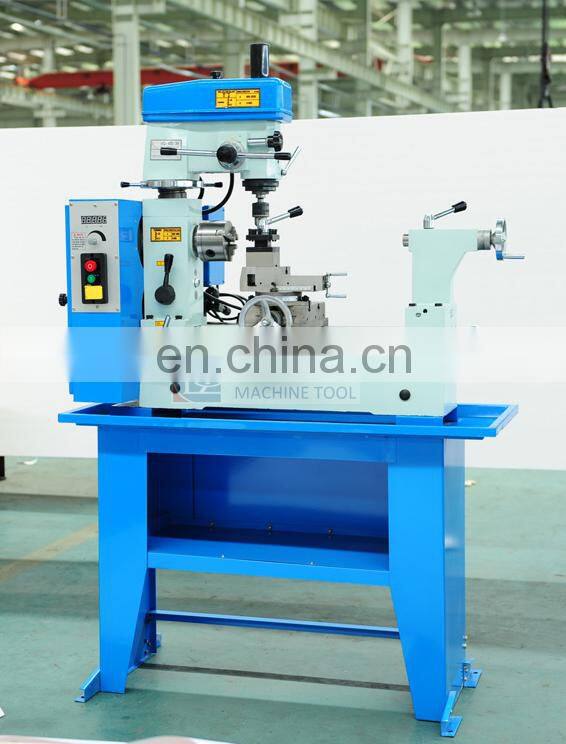

HQ400/3V Variable Speed Combination Lathe Mill Drill Machine photo-1

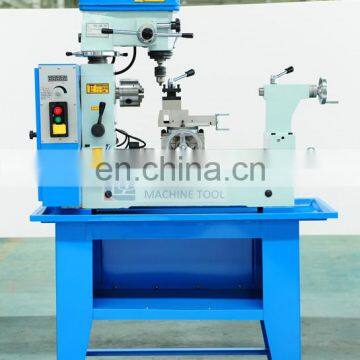

HQ400/3V Variable Speed Combination Lathe Mill Drill Machine photo-2

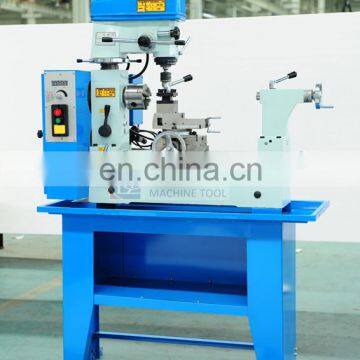

HQ400/3V Variable Speed Combination Lathe Mill Drill Machine photo-3
US$ 970 - 1,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Luzhong
Place of Origin:
Shandong, China
Model Number:
HQ400/3V
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Luzhong
Place of Origin Shandong, China
Model Number HQ400/3V
After-sales Service Provided No overseas service provided
Condition New

HQ400/3V Variable Speed Combination Lathe Mill Drill Machine

Product Description

 HQ400/3V Variable Speed Combination Lathe Mill Drill Machine

  Product main technical specifications:

Specifications

HQ400-3V

Turning

Swing over bed

420 mm

Distance between centers

400 mm

Max. longitudinal travel

380 mm

Max. cross travel

120 mm

Taper of spindle

M.T.3

Spindle hole

20mm

Step of spindle speed

Variable speed

Range of spindle speed

0-600 r.p.m 600-1800 r.p.m

Barrel travel

70 mm

Barrel taper

M.T.3

Metric thread range

0.7-2mm

Inch thread range

7-30T.P.L

Longitudinal range of automatic feeding

0.088-0.28mm/r

Cross range of automatic feeding

/

/

Drilling & Milling

Max.drilling capacity

15 mm

Worktable size

200*150 mm

Max.end mill capacity

20 mm

Max.face mill capacity

63 mm

Spindle travel

85 mm

Headstock travel of up and down

80 mm

Spindle taper

M.T.3

Step of spindle speed

  Variable speed

Range of spindle speed

0-660 r.p.m 660-2030 r.p.m

Swivel angle of headstock

±360°

Motor

Motor power

1.1kw

Shipping data

Packing size

1032*580*1000mm

N.weight/G.weight

185kg/220kg

Loading amount

44pcs/20container



Details Display

HQ400/3V Variable Speed Combination Lathe Mill Drill Machine

 HQ400/3V Variable Speed Combination Lathe Mill Drill Machine



HQ400/3V Variable Speed Combination Lathe Mill Drill Machine

Related Products

HQ400/3V Variable Speed Combination Lathe Mill Drill Machine

HQ400/3V Variable Speed Combination Lathe Mill Drill MachineHQ400/3V Variable Speed Combination Lathe Mill Drill Machine
C series Lathe MachineCA Series Lathe Machine
HQ400/3V Variable Speed Combination Lathe Mill Drill MachineHQ400/3V Variable Speed Combination Lathe Mill Drill Machine
CJM320B Mini Lathe MachineCW6180E Lathe Machine
Company Profile

HQ400/3V Variable Speed Combination Lathe Mill Drill Machine





Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.



Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .



HQ400/3V Variable Speed Combination Lathe Mill Drill Machine

Certificate

HQ400/3V Variable Speed Combination Lathe Mill Drill Machine

FAQ

HQ400/3V Variable Speed Combination Lathe Mill Drill Machine



1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .


2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .



3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.



4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.



5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .



5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
