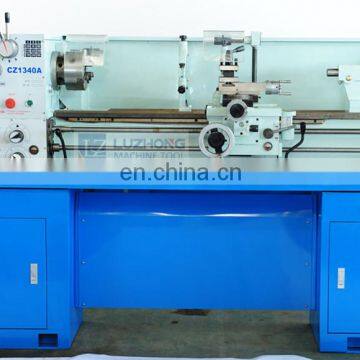

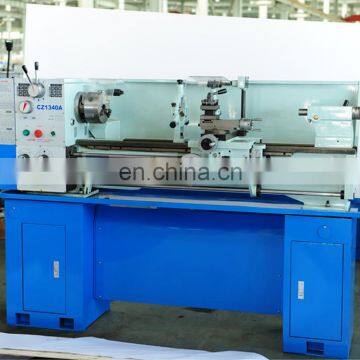

CZ1340A CZ1440A China Metal Gap Bed Lathe Machine for Sale
The main performance characteristics:
The clutch inside headstock realize the spindle to change FWD/REV direction.
It avoids electric motor to be changed frequently
Supersonic frequency hardened bed ways
Precision roller bearing for spindle
High quality steel, ground and hardened gear inside headstock
Easy and fast operating gear box
Enough strong power motor
ASA D4 camlock spindle nose
Various thread cutting available
Product main technical parameters:
ITEM |
| CZ1340A | CZ1440A |
Swing over bed | mm | φ330 | φ350 |
Swing over carriage | mm | φ195 | φ215 |
Swing over gap | mm | φ476 | φ500 |
Width of bed-way | mm | 186 | 186 |
Distance between centers | mm | 1000 | 1000 |
Taper of spindle |
| M.T.5 | M.T.5 |
Spindle diameter | mm | φ38 | φ38 |
Step of speed |
| 18 | 18 |
Range of speed | rpm | Low step 60~1100 | Low step 60~1100 |
High step 85~1500 | High step 85~1500 | ||
Head |
| D1-4 | D1-4 |
Metric thread |
| 26kinds (0.4~7mm) | 26kinds (0.4~7mm) |
Inch thread |
| 34kinds(4~56T.P.I) | 34kinds(4~56T.P.I) |
Moulder thread |
| 16 kinds(0.35~5M.P) | 16 kinds(0.35~5M.P) |
Diametral thread |
| 36 kinds(6~104D.P) | 36 kinds(6~104D.P) |
Longitudinal feeds | mm/r | 0.052~1.392 (0.002”~0.0548”) | 0.052~1.392 (0.002”~0.0548”) |
Cross feed s | mm/r | 0.014~0.38 (0.00055”~0.015”) | 0.014~0.38 (0.00055”~0.015”) |
Diameter lead screw | mm | φ22(7/8”) | φ22(7/8”) |
Pitch of lead screw |
| 3mm or 8T.P.I | 3mm or 8T.P.I |
Saddle travel | mm | 1000 | 1000 |
Cross travel | mm | 170 | 170 |
Compound travel | mm | 74 | 74 |
Barrel travel | mm | 95 | 95 |
Barrel diameter | mm | φ32 | φ32 |
Taper of center | mm | M.T.3 | M.T.3 |
Motor power | Kw | 1.5(2HP) | 1.5(2HP) |
Motor for coolant system’s power | Kw | 0.04(0.055HP) | 0.04(0.055HP) |
Machine(L×W×H) | mm | 1920×760×760 | 1920×760×760 |
Stand(left) (L×W×H) | mm | 440×410×700 | 440×410×700 |
Stand (right)(L×W×H) | mm | 370×410×700 | 370×410×700 |
Machine | Kg | 500/560 | 505/565 |
Stand | Kg | 70/75 | 70/75 |
| |
| C series Lathe Machine | CA Series Lathe Machine |
| |
| CJM320B Mini Lathe Machine | CW6180E Lathe Machine |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
