CJM250 CJM320 Small Bore Metal Lathe Mini Lathe Machine

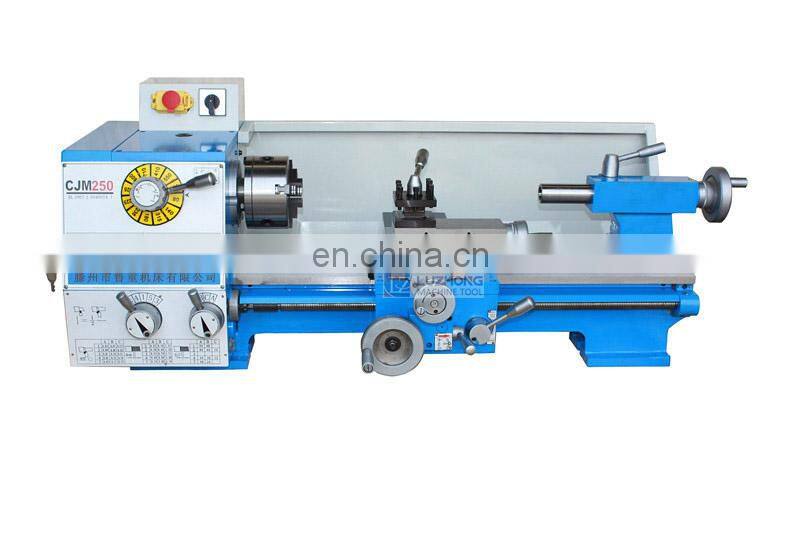

CJM250 CJM320 Small Bore Metal Lathe Mini Lathe Machine photo-1

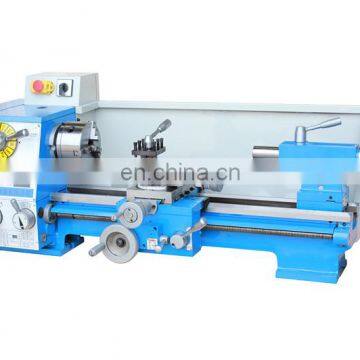

CJM250 CJM320 Small Bore Metal Lathe Mini Lathe Machine photo-2

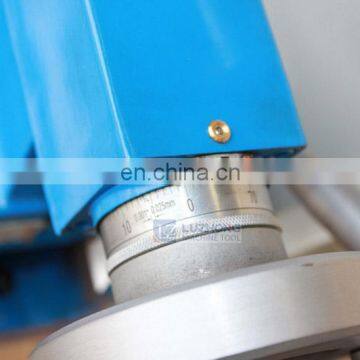

CJM250 CJM320 Small Bore Metal Lathe Mini Lathe Machine photo-3

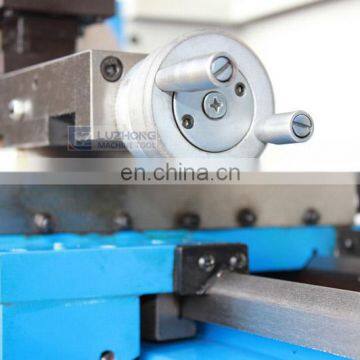

CJM250 CJM320 Small Bore Metal Lathe Mini Lathe Machine photo-4

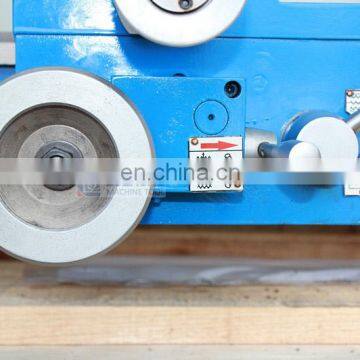

CJM250 CJM320 Small Bore Metal Lathe Mini Lathe Machine photo-5

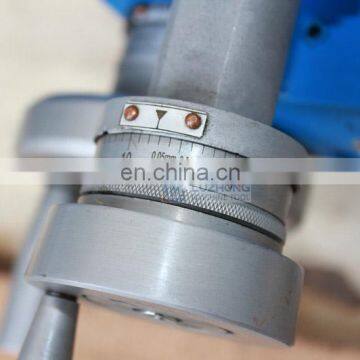

CJM250 CJM320 Small Bore Metal Lathe Mini Lathe Machine photo-6
US$ 1,100 - 1,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Luzhong machine Tool
After-sales Service Provided:
Engineers available to service machinery overseas
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
Any pory in China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Luzhong machine Tool
After-sales Service Provided Engineers available to service machinery overseas
Condition New

CJM250 CJM320 Small bore metal lathe mini lathe machine

Product Description



CJM250 CJM320 Small bore metal lathe mini lathe machine

Product description:

1.Most economical,widely useful hobby lathe.
2.Power longitudinal  feed allows threading.
3.V-way a depot double triangle and rectangle sideway.
4.Easy access to safety switches.
5.Spindle is supported by precision tapered roller bearing.
6.Headstock be gear drive power.
7.Large MT4 spindle bore.
8.High precision chuck.
9.Induction cuts with cross & longitudinal power feed

Product main technical Specifications:

Specifications

Units

CJM250

Lathe bed maximum turning diameter

mm

250

Skateboard largest work piece turning diameter

mm

500

Maximum work piece diameter rotary table

mm

150

Spindle hole diameter

mm

26

Taper of spindle

mm

No.4

Spindle

mm

80—1600r.p.m  12

The maximum horizontal stroke of cutter

mm

130

The knife frame maximum longitudinal travel

mm

75

Processing metric thread number

mm

15

Processing range of metric threads

mm/r

0.25-2.5

Longitudinal feed spindle turret at every turn

mm

0.03-0.275

The transverse feed amount per turn spindle turret

mm

0.015-0.137

The maximum amount of movement of the tailstock sleeve

mm

60

Taper the tailstock sleeve

mm

No.3

Electric machinery

w

750W/380V/50HZ

Gross / net weight

kg

180/163

Dimensions (length * width * height)

mm

1130×550×405

Packing size (length * width * height)

mm

1200×620×600

Detail diplay


CJM250 CJM320 Small bore metal lathe mini lathe machineCJM250 CJM320 Small bore metal lathe mini lathe machine
