cnc milling machineXK7132 cnc milling machine steel
The main performance characteristics:
1, The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2, The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3, The pre tension precision ball screw drive

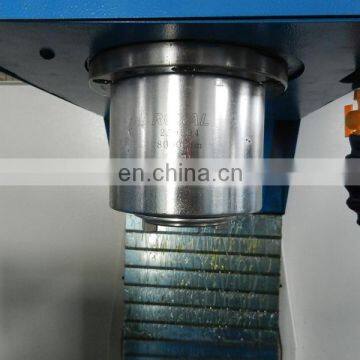

4, The high speed, high precision, high rigidity spindle unit
5, The intermittent automatic lubrication
6, Automatic scraping knife system
Application:
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
Product main technical specifications:
Specifications |
Units |

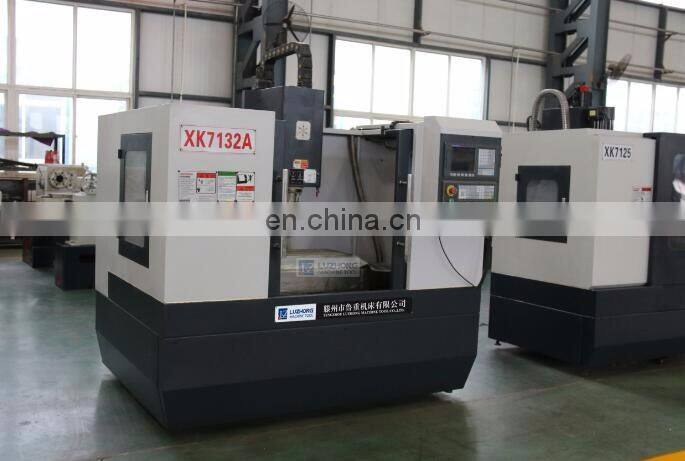

XK7132A |
X-axis travel |
mm |
500 |
Y-axis travel |
mm |
320 |
Z-axis travel |
mm |
350 |

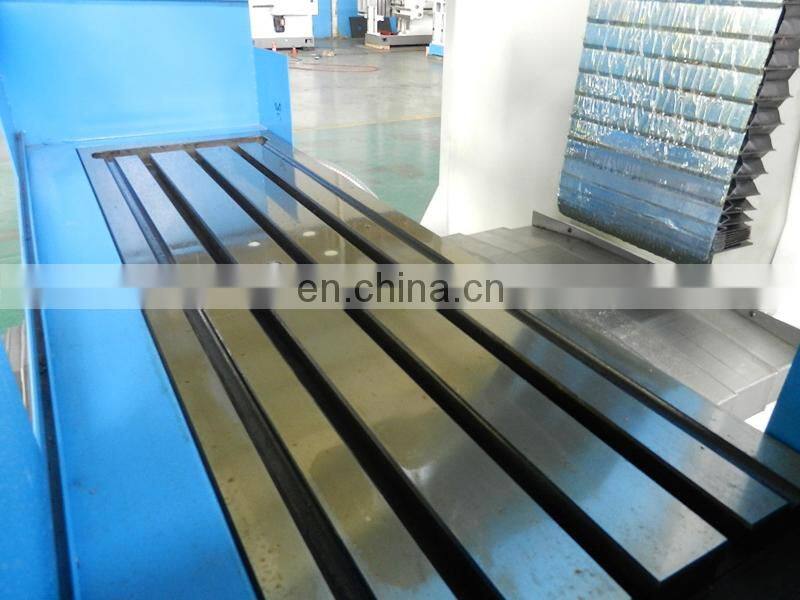

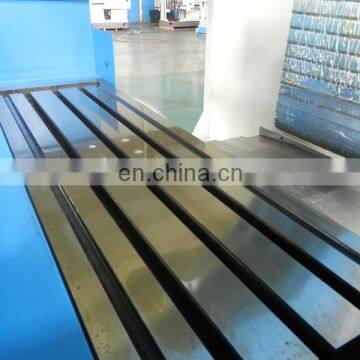

Table size |
mm |
800x320 |
Spindle power |
kw |
2.2 |
Maximum spindle speed |
rpm |
80-6000 |
Rapid traverse (X/Y/Z) |
mm/min |
18000/18000/18000 |
Spindle nose to table |
mm |
120-470 |
Spindle center to column surface distance rail |
mm |
350 |
Positioning accuracy |
mm |
0.007 |
Repeat accuracy |
mm |
0.003 |
Machine weight |
kg |
2500 |
Dimensions |
mm |
2250x2200x2400 |
|
|
|
| VMC850 CNC Machining Center | DX6050 CNC Engraving Milling | XH2315 Gantry CNC Milling Center |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprisewith glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
"THE BEST QUALITY ,CREATED BY LUZHONG"
All of our machines are subject to strict quality control.Especially in the production process.
The Machines like lathe machine , cnc lathe machine ,cnc milling machine , cnc turning center ,Radial drilling machines, drilling milling machines ... ... have production lines as below:
1.High strength Casting making .
2.Processing production.
3.High precision quenching process.
4.Assembling process.
5.Spray paint process.
6.And also the finished product come out .
Our Company Tengzhou Luzhong Machine Tool Co.,Ltd has the certifications as :CE ,ISO ,SGS ,TUV ,SONCAP certificates and on on .
In the past years , we joint the machine exhibition every year .We have experiences in servicing customers for over 20 years .
