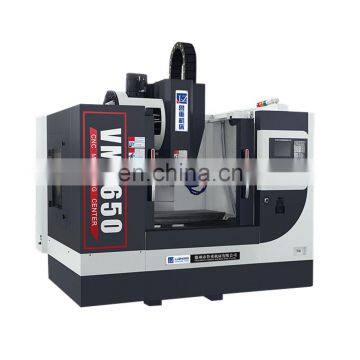

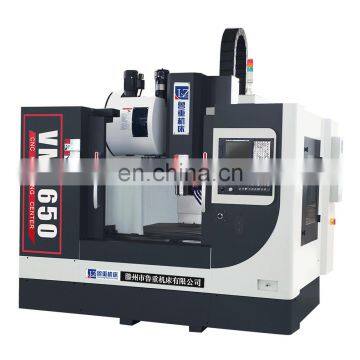

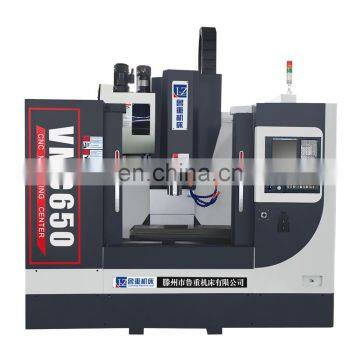

Vertical Machining Center VMC650 CNC Milling Machine
specifications |
unit |
VMC650 |
Table size |
mm |
800x400 |
Table maximum load |
kg |
450 |
X/Y/Z axis travel |
mm |
650x400x500 |
|
Distance between spindle center and column surface |
mm |
476 |
|
Distance between spindle end face and worktable surface |
mm |
100-600 |
X/Y/Z max. feed speed |
mm/min |
8000 |
X/Y/Z max.rapid traverse |
m/min |
24/24/20 |

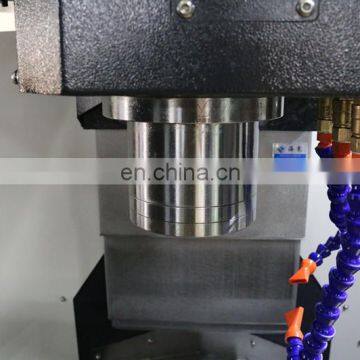

Max. spindle speed |
r/min |
8000(10000 optional) |
Spindle taper |
|
BT40 |
Spindle motor |
kw |
5.5/7.5 |
X/Y/Z axis servo motor |
kw |
1.0/1.0/1.5 |
X/Y/Z motor connection |
|
direct |

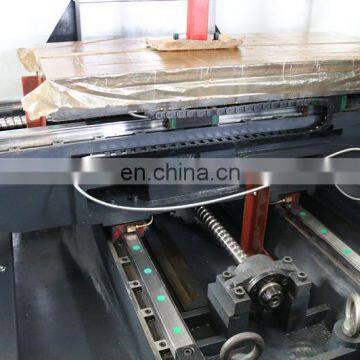

X/Y/Z guide rail form |
|
3 axis linear guide rail |
T slot(number-width-pitch) |
|
3-18-125 |
Repeat positioning accuracy |
mm |
±0.004 |
Tools type |
|
Armless/arm |
Tool magazine capacity |
|
Armless:16/arm:16 |
Max.tool weight |
kg |
7 |
Max. tool length |
mm |
250/350 |
Electric capacity |
KVA |
10 |
Machine dimension |
mm |
2300x2200x2400 |
Machine weight |
kg |
4500 |
|
|
| VMC650 Vertical Machining Center | VMC850 Vertical Machining Center |
|
|
| VMC1370 Vertical Machining Center | XH2308 Gantry Machining Center |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
