Product Details
Brand Name: | Luzhong Machine | Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Condition: | New |
Product Description

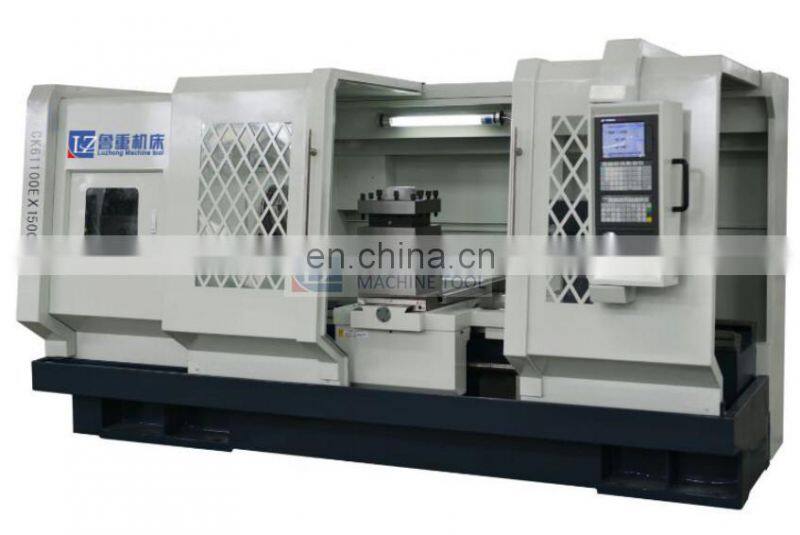

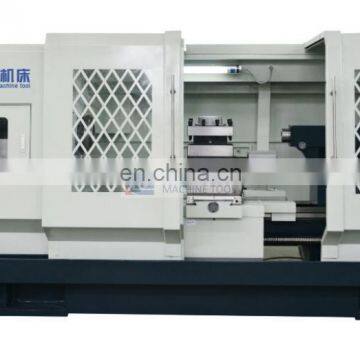

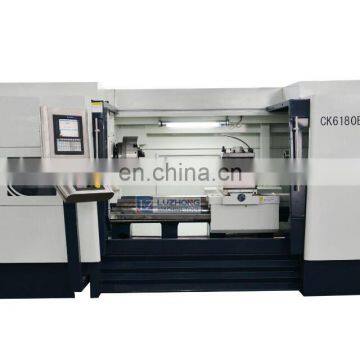

CK6163E CK6180E CK61100E Heavy Dury CNC Lathe Machine
Product description:
This machine can undertake a variety of turning workpiece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.

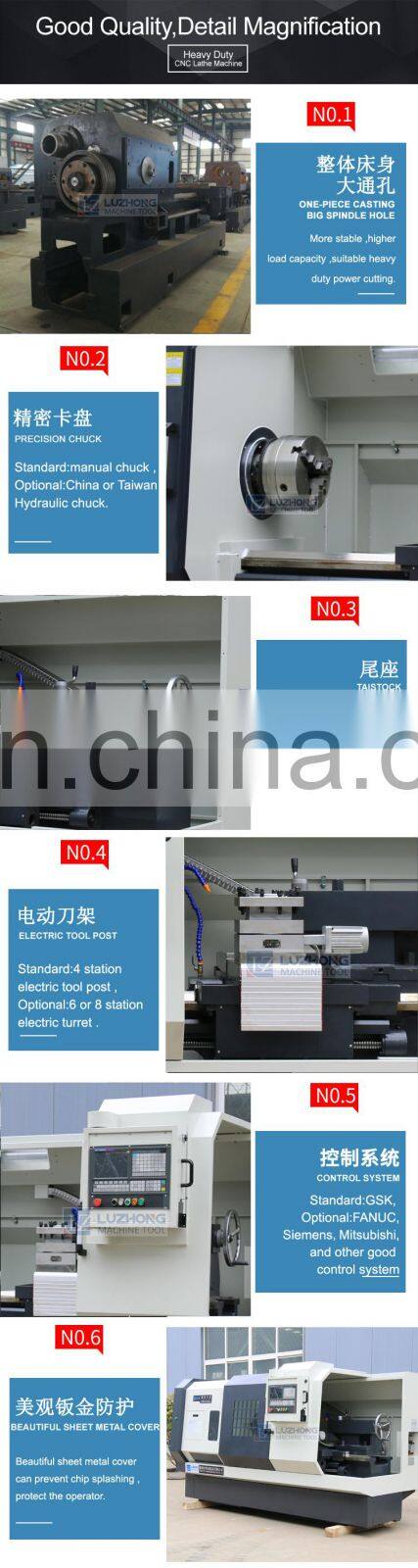

The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed structure, high integral rigidity.
Product main technical specification:
Item | Specifications | Unit | CK6163E | CK6180E | CK61100E | ||
Technical specification | Max.swing over bed | mm | 630 | 800 | 1000 | ||
Max.swing over cross slide | mm | 350 | 500 | 700 | |||
Max.turning length | mm | 1000-12000 | |||||
Bed width | mm | 550 | |||||
piece weight | T | 2 | |||||
Main drive | Form | Three gear mechanical transmission, frequency conversion stepless speed regulation | |||||
Range of spindle speeds | R/min | 25-800 | |||||
Terminal structure |
| C11(D11) | |||||
Hole diameter of Spindle | mm | 105 | |||||
Spindle hole fore-end taper |
| Metric 120 1:20 | |||||
Model of main motor |
| YVP160M-4-11KW | |||||
Feeding system | Maximum cross travel of turret |
| X:530 Z:1200.1650,3100, | ||||
Ball-screw diameter *pitch | mm | X:3205 Z:5010-6312 | |||||
Speed of quick travel | mm/min | X:4000 Z:5000 | |||||
Setting accuracy | mm | X:0.03 Z:0.04 | |||||
Resetting accuracy | mm | X:0.012 Z:0.016 | |||||
Precision pf workpiece |
| IT6-IT7 | |||||
Surface roughness | mm | Ra1.6 | |||||
Sleeve diameter of tailstock | mm | 100 | |||||
Tailstock | Sleeve travel of tailstock | mm | 250 | ||||
Cone hole taper tailstock’s sleeve | Morse | Morse 6 | |||||
Turret | Standard configuration |
| Four-station Vertical electric al turret | ||||
Alternative configuration |
| Horizontal Six-station electric al turret | |||||
Resetting accuracy | mm | 0.01 | |||||
Tool section size | mm | 32x32 | |||||
Control system | Standard configuration |
| NHC-210A GSK980TD | ||||
Alternative configuration |
| KND. FANUC. SIEMENS | |||||
Servo motor |
| X:130SJT-M210A Z:175SJT-M300B | |||||
Machine appearance | Length x Width x Width | mm | 8200(10200)(12000)x1820x1780 | 8200x(10200)(12200)x1820x1710 | |||
Size /weight | Net weight | kg | 4100 |
CK6140 CNC Lathe Machine | CAK6150V CNC Lathe Machine |
TCK420 Slant Bed CNC Lathe Machine | TCK6336 Slant Bed CNC Lathe Machine |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
