Single spindle automatic cnc lathe chuck type machine CK6150A
A. Standard configuration and specification
1.System: GSK,

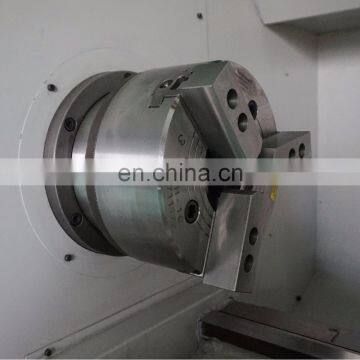

2.Manual 3-jaw chuck, 4-station electric tool post.
3.Manual tailstock, Semi-Rugged
4.Cooling system;Lighten system; Automatic lubrication system;
ITEMS |
Specifications |
Max. swim over bed |
Φ500mm |
Max. swim over carriage |
Φ280mm |
Max. length of work piece |
750mm/1000/2000mm |
Width of the machine |
400mm |
Size of three-jaw chuck |
250mm |
Range of spindle speed |
150-2000rpm |
Spindle bore |
Φ82mm |
Taper of spindle bore |
Type of spindle head D-8 |
Stations of tool carrier |
4/6/8 |
Min. setting unit of motor |
(Z) long 0.001mm, (X) cross 0.001mm |
Moving speed of post |
(Z) long 8 m/min, (X) cross 6 m/min |
Taper of tailstock quill |
MT5 |
Max. range of tailstock quill |
150mm |
Motor power |
7.5KW |
Packing size(length ×width ×height) |
2470mm//2970mm/3470 mm×1400mm×1650mm |
Net weight |
3000/3200/3500kg |
B. Main features
1. The base of the machine is made of cast iron which is heavy enough and of good rigidity and stability.
2. independent spindle, stepless speed regulation, with lower noise and high- standard machining accuracy, is an environmental- protective machine.
3. The spindle is the high- rotate speed and sophisticated bearing, with smooth surface. The extra size diameter of the spindle bore isφ82mm while the diameter of chuck is φ250mm.
C. Instructions of other devices:

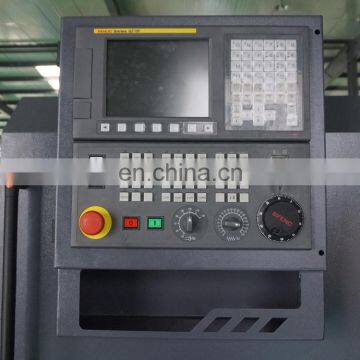

Brands of standard configuration of CNC |
GSK980TB2 |
Structure style of spindle |
Independent spindle, stepless frequency control |
Position of CNC system |
on the right side, right-left move |
lighting system |
standard T8 fluorescent lamp |
Cooling system |
water cooling |
Lubrication system |
automatic lubrication controlled by microcomputer |
Brands of motor-driven tool carrier |
Hongda and Sanhe |
Type of cabinet base |
Whole cast iron |

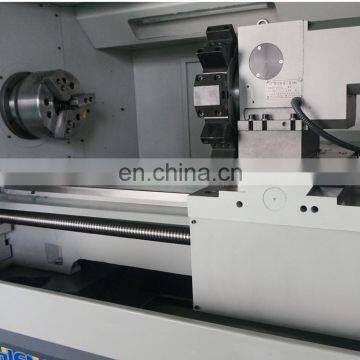

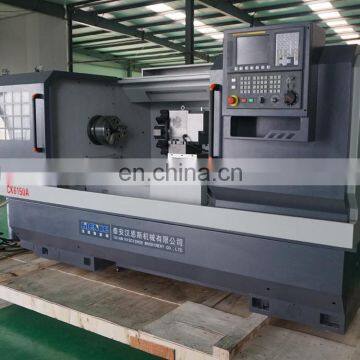

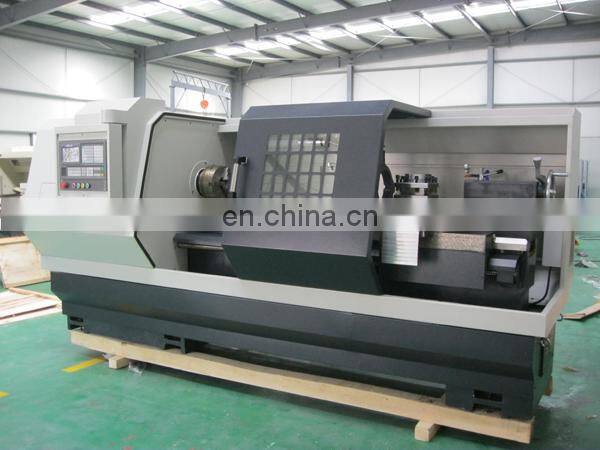

D.Pictures of CK6150A

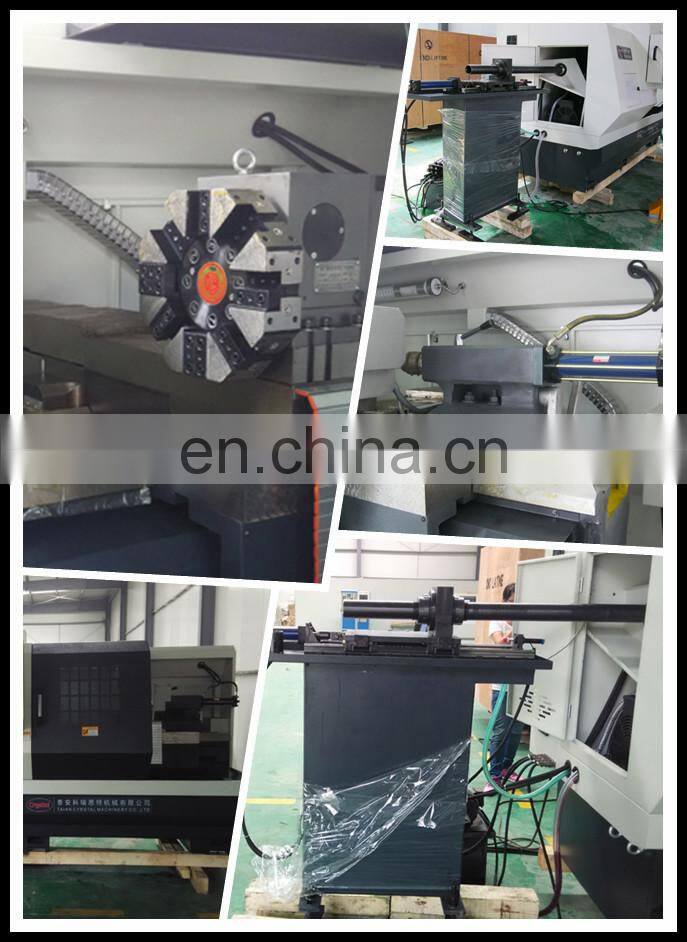

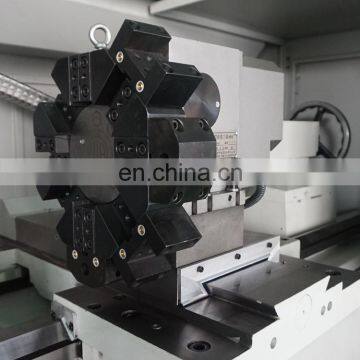

E. Optional configuration
F. Our company
F. Packaging & Shipping
G. Our Services
1.Warranty is one year, we would offer the parts
(quality problem) free of charge during this period
2.GSK CNC system, servo driven,warranty is 3 years
Siemens system (Have customer service service point in the world)
3.24 hours technical suport e-mail and
4.User manual and detailed video
