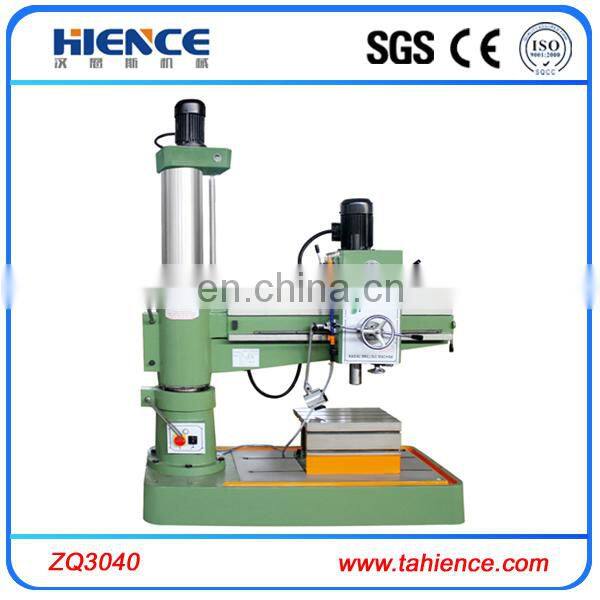

New Vertical Heavy Radial Drilling Machine for Sale ZQ3040x16

FOB Price

US$ 3,700 - 4,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HIENCE	Place of Origin	Shandong, China
Model Number	ZQ3040*16	Certification	CE,ISO,SGS
After-sales Service Provided	No overseas service provided	Weight	3800KGS
Dimension(LWH)	24009802580mm	Voltage	380V
Condition	New	Power(W)	2.2kw
CNC or Not	Normal	Drilling Speed	0.10-0.25mm/r

Chinese manufacturer 40mm drilling capacity radial arm drilling machine ZQ3040x16

A. Standard Specification

Items	ZQ3040×16
Max drilling diameter (mm)	40
Distance between spindle center line and column(mm)	300-1300
Distance between spindle nose and work table(mm)	250-1200
Distance of headstock horizontal movement(mm)	1000
Elevating distance of rocker(mm)	670
Spindle taper	MT4
Spindle speed series	6
Spindle speed	75-1220rpm
Spindle travel(mm)	270
Spindle feeding speed(mm/r)	0.10; 0.16 0.25
Elevating speed and spindle (r/min)	1.3
The turning angle of rocker	±180°
The spindle allowed maximum feeding resistance(N)	6300
Main motor power(kw)	2.2
Elevating motor power(Kw)	0.55kw
Coolant pump power (kw)	0.04
Weight (kg)	3800
Overall dimension	24009802580

B.Pictures

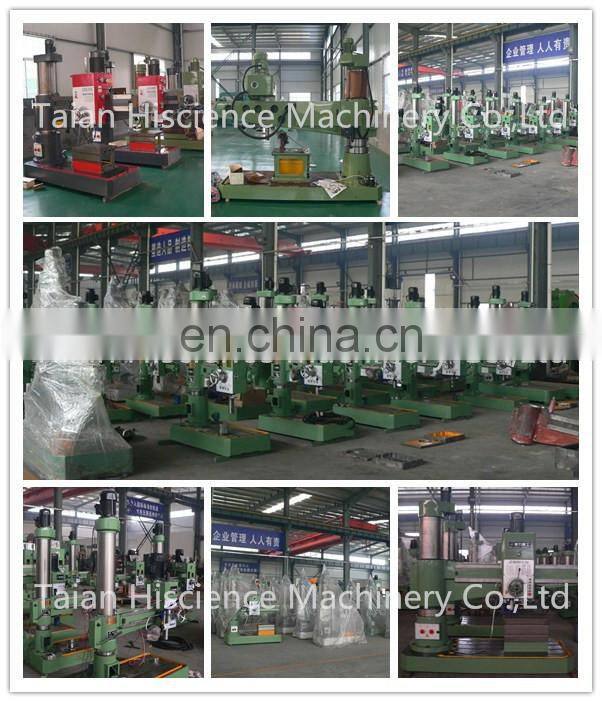

C. Our company

D. Packaging & Shipping

G. Our Services

1.Warranty is one year, we would offer the parts

(quality problem) free of charge during this period

2.GSK CNC system, servo driven,warranty is 3 years

Siemens system (Have customer service service point in the world)

3.24 hours technical suport e-mail and

4.User manual and detailed video
