Vertical Milling Machine Specifications ZX6350ZA

Horizontal Lathe Co., Ltd.
Vertical Milling Machine Specifications ZX6350ZA thumbnail-1
Vertical Milling Machine Specifications ZX6350ZA thumbnail-2
Vertical Milling Machine Specifications ZX6350ZA thumbnail-3
Vertical Milling Machine Specifications ZX6350ZA thumbnail-4
Vertical Milling Machine Specifications ZX6350ZA thumbnail-5
Vertical Milling Machine Specifications ZX6350ZA thumbnail-6
Vertical Milling Machine Specifications ZX6350ZA photo-1

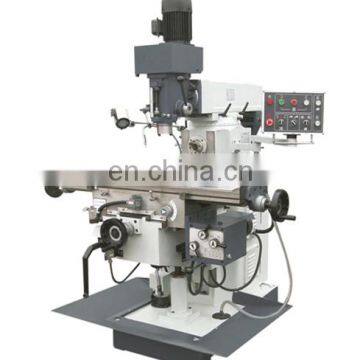

Vertical Milling Machine Specifications ZX6350ZA photo-2

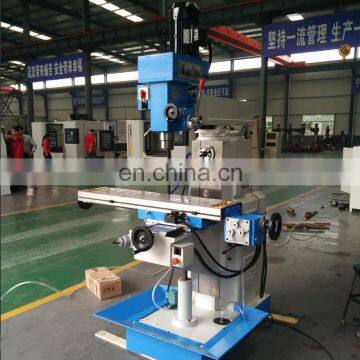

Vertical Milling Machine Specifications ZX6350ZA photo-3

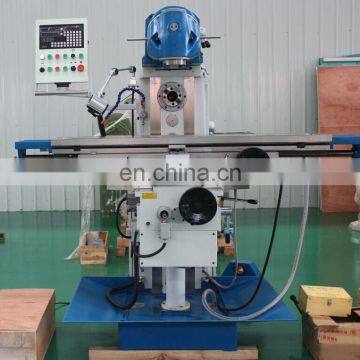

Vertical Milling Machine Specifications ZX6350ZA photo-4
Vertical Milling Machine Specifications ZX6350ZA photo-5
Vertical Milling Machine Specifications ZX6350ZA photo-6
US$ 6,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HIENCE
Place of Origin:
Shandong, China
Model Number:
ZX6350ZA
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HIENCE
Place of Origin Shandong, China
Model Number ZX6350ZA
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Product Description
Specification
Units
ZX6350ZA
Spindle taper
　
7:24 ISO40
Max drilling dia
mm
50
Max vertical milling dia
mm
25
Max boring dia
mm
120
Max tapping dia
mm
M16
spindle travel
mm
120
vertical spindle center  to column
mm
200--500
vertical spindle nose to table
mm
90--380
Horizontal spindle nose to table
mm
0--290
spindle speed range
r.p.m
115--1750(8 steps)

40--1300(12 steps)
table size
mm
1250*320
table travel
mm
600*300*290
T slot
3*14*70
main motor power
kw
0.85/1.5(V)

2.2(H)
coolant pump motor power
W
40
Overall size
mm
1680×1480×2150
N.W/G.W
kg
1450
Our Company
Factory
Packing & Delivery
Packaging
Size
1680×1480×2150
Weight
1450KG



Packaging Details
The normal package is wooden box(Size: L*W*H). the wooden box will be fumigated.
