Full Automatic Diamond Cut Alloy Wheel Lathe Rim Repair Machine AWR28HPC

Full Automatic Diamond Cut Alloy Wheel Lathe Rim Repair Machine AWR28HPC photo-1
Full Automatic Diamond Cut Alloy Wheel Lathe Rim Repair Machine AWR28HPC photo-2

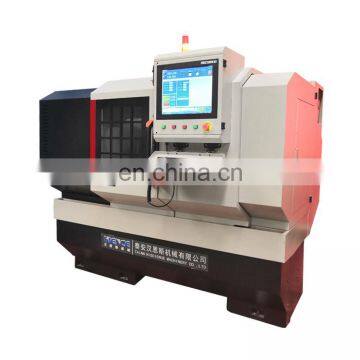

Full Automatic Diamond Cut Alloy Wheel Lathe Rim Repair Machine AWR28HPC photo-3
Full Automatic Diamond Cut Alloy Wheel Lathe Rim Repair Machine AWR28HPC photo-4
Full Automatic Diamond Cut Alloy Wheel Lathe Rim Repair Machine AWR28HPC photo-5
Full Automatic Diamond Cut Alloy Wheel Lathe Rim Repair Machine AWR28HPC photo-6
Full Automatic Diamond Cut Alloy Wheel Lathe Rim Repair Machine AWR28HPC photo-7
US$ 13,000 - 16,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HIENCE
Place of Origin:
Shandong, China
Model Number:
AWR28H-PC
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Ningbo Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Brand Name HIENCE
Place of Origin Shandong, China
Model Number AWR28H-PC
Condition New
Product Description

Product Application

Our company has developed newest PC controller type wheel repair lathe to repair damaged wheel face. The machine use 17'' touch industrial PC, so the machine get rid of complicated operation and many useless CNC controller button. And all steps will finished on PC.

ITEMS
AWR28H-PC
Max. swing over bed (mm)(inch)
Φ770(30')
Max. Diameter of wheel(mm) (inch)
Φ710(28')
Max. Stroke of the X-axis(mm)
390
Max. Stroke of the Z-axis (mm)
880
Width of the rail (mm)
300
Length of the rail (mm)
1320
Size of the three-jaw chuck (inch)
13'
Range of spindle speed (RPM)
50~2000
Spindle speed control
Automatic
Spindle bore (mm)
Φ82
Taper of spindle bore
1:20(Φ90)
Taper of spindle nose
A2-10
Adjustable stroke of carrier in X direction
100mm
Max. size of tool post
25×25mm
Stations of tool carrier
4 position
Min. setting unit of motor
(Z) long   0.001mm, (X) cross   0.001mm
Moving speed of post
(Z) long    8m/min, (X) cross   6m/min
Motor power
7.5KW
Machine size
2200/1620/1870
Package size
2300/1720/2170
Weight
2600KGS

Main Features

1.Our machine can probe and cutting alloy wheels automatic.
2.Can probe and cut different difficult deep dish wheels by longer probe and longer cutter.
3.Can realized different cutting effect according to your request by adjust detection parameters, can realize rainbow line.
4.Can save program for next same models wheels, so no need to probe again for same model wheels. Can save time and money.
5.We offer detailed training video and manual with machine, you can learn the machine by yourself.
