China Tire Changer Automatic Machine TC30H

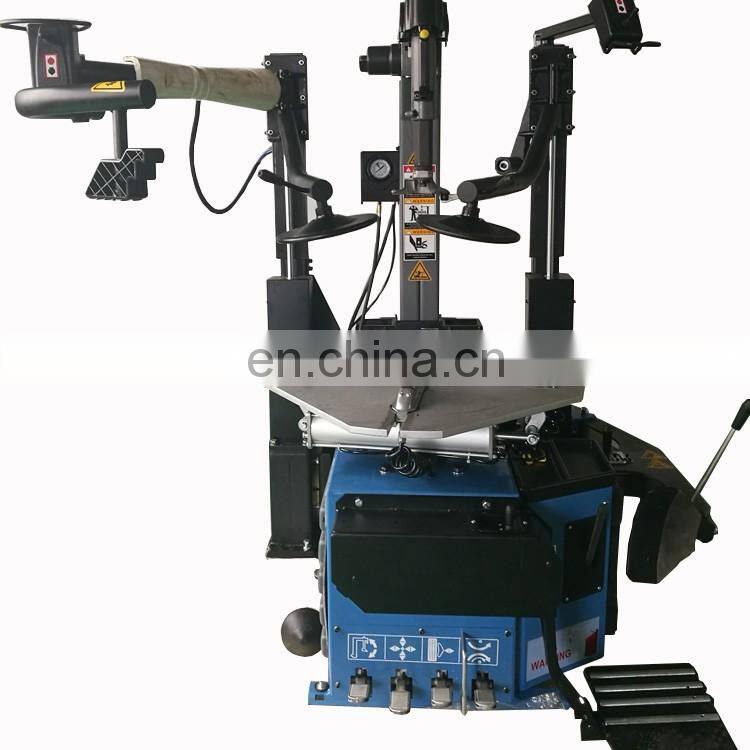

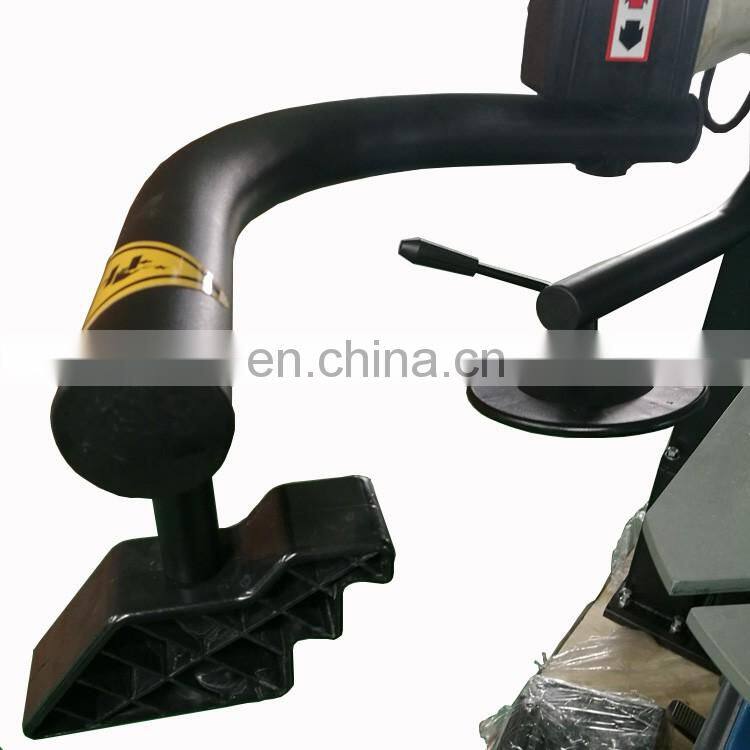

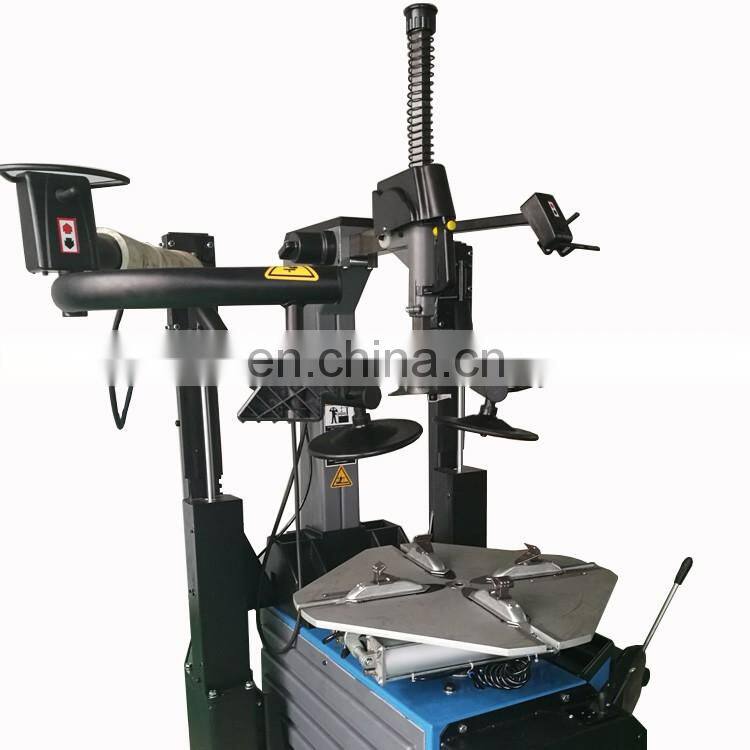

China Tire Changer Automatic Machine TC30H photo-1
China Tire Changer Automatic Machine TC30H photo-2
China Tire Changer Automatic Machine TC30H photo-3
China Tire Changer Automatic Machine TC30H photo-4
China Tire Changer Automatic Machine TC30H photo-5
China Tire Changer Automatic Machine TC30H photo-6
US$ 3,000 - 3,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HIENCE
Place of Origin:
Shandong, China
Model Number:
TC30H
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name HIENCE
Place of Origin Shandong, China
Model Number TC30H
Warranty 1 Years, 1 year
Power Supply 380V
Operating Pressure 8-10bar
Motor Power 0.75/1.1kw
Product Description
Model
TC30H
Rim clamping size
10'' to26''
Max.wheel diameter
1200mm
Wheel width
3''-15''
Operating pressure
8-10bar
Motor power
0.75/1.1kw
Noise Level
<75dB
Weight
700KGS
Packing size
(Machine)1100*860*1020mm
(Help arm)1280*550*450mm

Main Features

1.Equipped with standard configuration, Max inside clamp to 30 inch, which increase the demounting size.
2.Double bending techniques,5mm steel board-made column ensures handing tires in high intensity.
3.The pedal has step function, which can install the tire accurately and time saving.
4.The tool box under the column and bead breaker is convenient for putting the tools and parts.
5.IT model with the quick inflation device improves the inflation efficiency.
6.The two helpers and handle the low profile, stiff tire within the range of the technical date, and other helper is optional for the machine.
7.The turntable is equipped with the wear resistant washer and scale.
8.The horizontal arm use 55mm square steel and hard chromium plating, which can ensure intensity and endurance.
9.The use of S41 hexangular shaft secures the anti-bend strength of the hexangular shaft.
10.Horizontal arm is equipped with the horizontal lock cylinder, the lock of which is better.
11.The standard lifting system can save more time and effort when demounting the tire which iw above 24 inch.
