Cheap high speed high accuarcy Swiss type cnc lathe machine for sale
H-F203E
Standard specification
Description |
Unit |
Specification |
|
(Main spindle) |
Stroke |
mm |
75 (Standard) ; 120 (Optional); 210 (Optional) (All travel synchronised guide sleeve) |
Max. RPM |
rpm |
100~12000 |
|
Max. turning diameter |
mm |
20 |
|
Additional positive brake |
° |
Infinite |
|
Main spindle bore diameter |
mm |
22 |
|
(Tooling) |
Number of O.D tools |
ea |
5 |
OD tool size |
mm |
12X12 |
|
Number of front work tools |
ea |
4 |
|
Max. drilling diameter(front) |
mm |
7(ER11) |
|
Max. tapping diameter(front) |
mm |
M6(ER11) |
|
|
(Motor) |
Number of cross driven tools |
ea |
4 |
Cross driven tools Max .rpm |
rpm |
5000 |
|
Max. drilling diameter( radial direction) |
mm |
8(ER16) |
|
Max. tapping diameter( radial direction) |
mm |
M6(ER16) |
|
Maximum diameter of saw blade milling tools( radial direction) |
mm |
30(ER16) |
|
Main spindle motor |
kw |
2.2/3.7 |
|
Cross driven tools motor |
kw |
0.75 |
|
Servo motor |
kw |
(X,Z,Y)0.75 |
|
Lubricant motor |
kw |
0.25 |
|
Coolant pump |
kw |
0.85 |
|
Rapid traverse rate |
m/min |
X/Y 30,Z24 |
|
|
(Others) |
Coolant tank capacity |
L |
100 |
Lubrication tank capacity |
L |
10 |
|
Center height |
mm |
1050 |
|
Dimensions(L×W×H) |
mm |
1750×910×1700 |
|
Machine weight |
kg |
1780 |
|
Power consumption |
kw |
7 |
|
|
CNC controller |
Standard |
LNC-T568 |

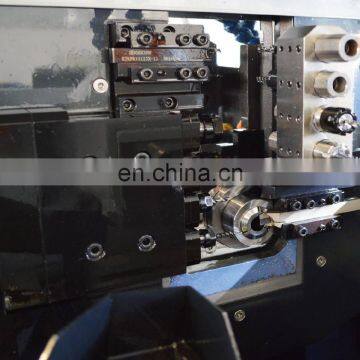

Standard Pictures of H-F203E
