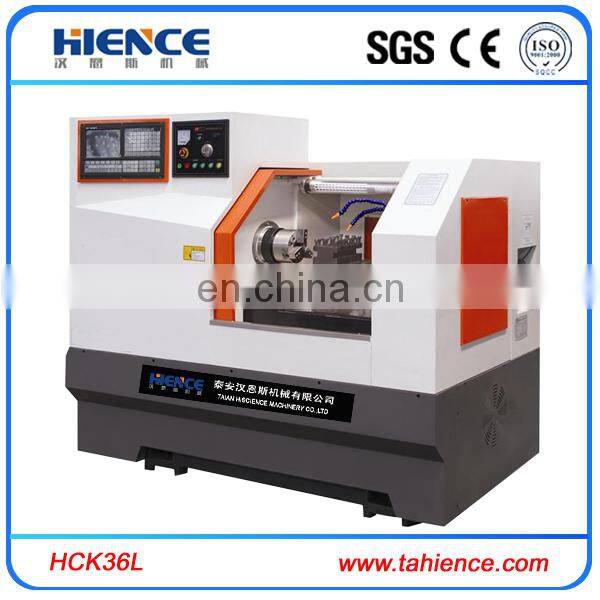

Super precision cnc lathe machine HCK36L
A.Configuration and Specification
GSK9 system, servo spindle motor. Servo spindle unit

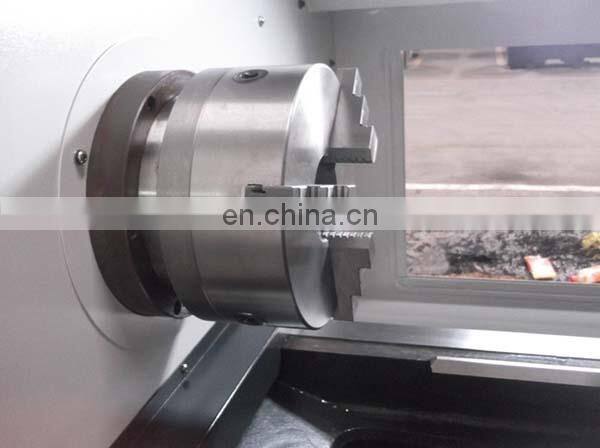

6inch hydraulic chuck with hydraulic station. Gang type tool holder
Schneider key electric components. Hardened Guideway
Automatic lubrication system, coolant system, lighting system
Oil type bar feeder.
Items |
Units |
Specification |
Max.swing over bed |
Mm |
Ø 360 |
Max.swing over carriage |
Mm |
Ø 110 |
Max processing diameter |
Mm |
Ø 350 |
Max processing length |
mm |
250 |
Chuck size |
Inch |
6’’ |
X axis travel |
Mm |
340 |
Z axis travel |
Mm |
250 |
Type of guideway |
|
Linear guide way from Taiwan |
Max spindle speed |
Rpm |
6000 |
Spindle nose |
|
A2-5 |
Diameter of bar bore |
Mm |
Ø 38 |
Fast moving speed of X/Z |
MM |
15/20 |
Main motor power |
Kw |
4 |
Type of tool holder |
|
Gany type tool holder |
Min setting unit of X/Z |
Mm |
0.001 |
Positioning precision of X/Z |
Mm |
0.016/0.020 |
Repeatability Accuracy of X/Z |
mm |
0.007/0.008 |
L*W*H of the machine |
Mm |
2000*1400*1580 |
Weight |
Kg |
1500 |
B. peculiar setup
Optional brands of CNC systems |
SIEMENS,FANUC |

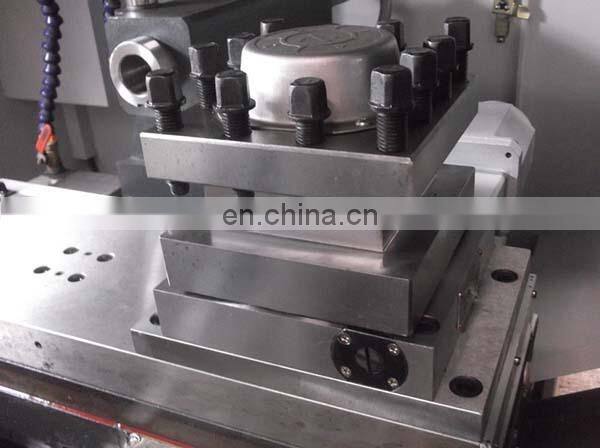

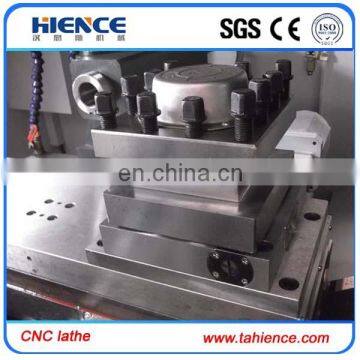

Optional types of the tool post |
horizontal Six-station, horizontal eight-station |
Optional types of the workpiece clamping |
hydraulic chuck,pneumatic chuck,spring chuck |
Optional types of the tailstock |
Hydraulic tailstock,pneumatic tailstock |
Optional patterns of feeding |
Automatic feeding(Customized programs alone)
|
