Hobby flat bed cnc cutting lathe machine H35
A.Standard Configuration and Specification
1.System:GSK928TD-L,servo motor and drive
2.3-jaw chuck, row type tool holder.
3. Without tailstock, Semi-Rugged
4.Cooling system;Lighten system; Automatic lubrication system;
Item |
H35 |
Max. swing dia. over bed |
230mm |
Max. swing dia. over cross slide |
125mm |
Max. processing length |
280mm |
Spindle nose |
A2-5 |
Dia. of spindle |
48mm |
Through hole dia. of drawing pipe |
41mm |
X/Z repeated position accuracy |
0.012/0.013mm |
X/Z travel |
300/320mm |
x/z rapid feeding speed |
5/10m/min |
Spindle speed |
150-2500rpm |
Tool holder |
gang type tool post |
Tool bar section |
16X16mm |
Main motor power |
3kw |
Invertor power |
4kw |
X/Z axis torque |
4N.M/4N.M |
Dimension |
1460*1120*1750mm |
Net weight |
850kg |
B.Main features
1. Single spindle
2. May fix with hydraulic chuck system.
3. Integrated automatic lubrication system.
4. High precision CNC lathe with good performance-price radio.
5. Electronic hand wheel equipped easy operation.
6. The carriage adopts plastic paste processing wear small, high precision, long life.
7. Feed of X Z shaft is driven by ball screw with servo-motor.
8. Rotary various work piece surface automatically turning, precision machining.

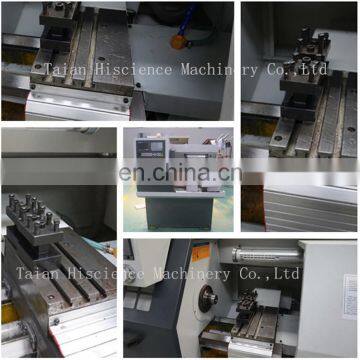

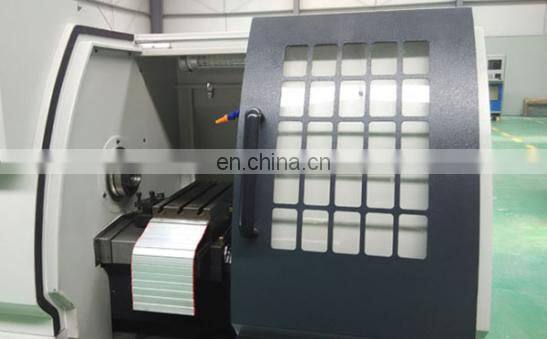

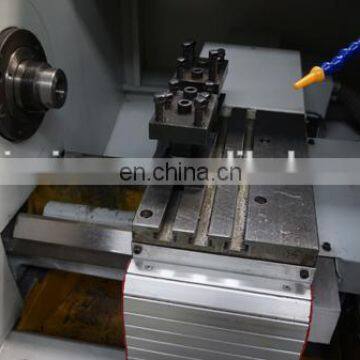

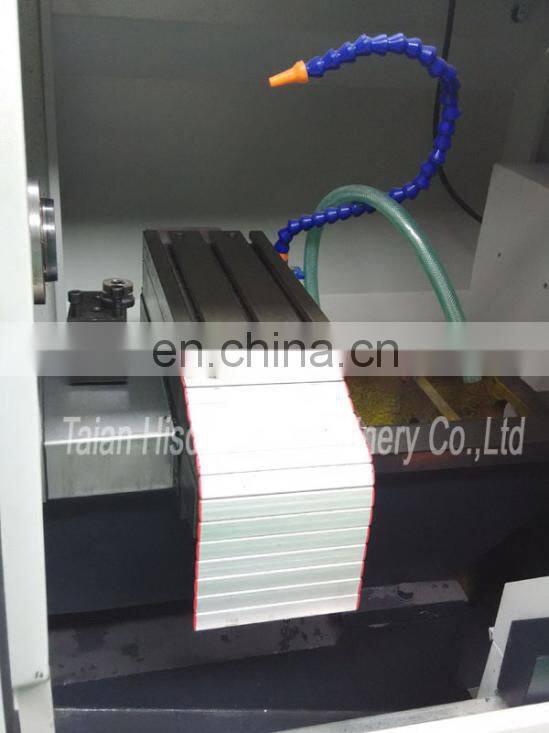

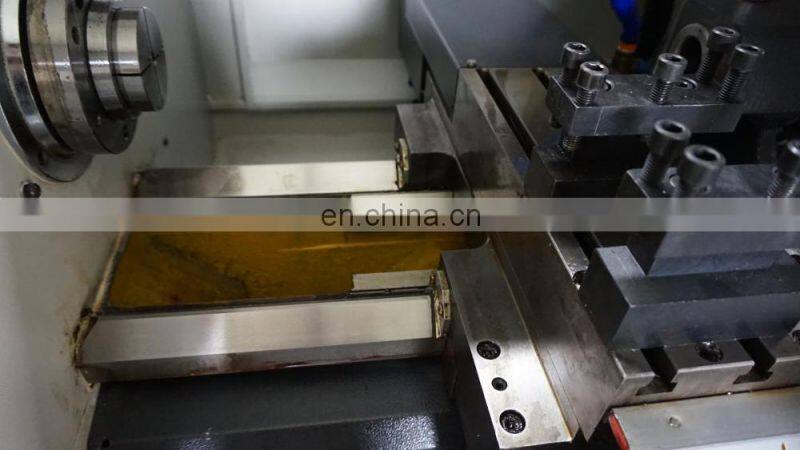

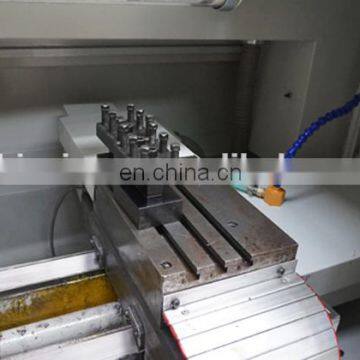

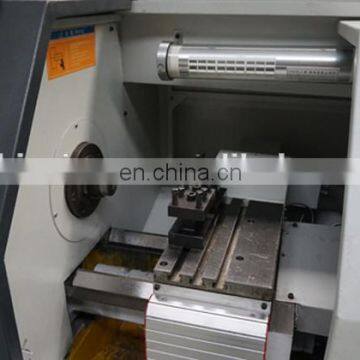

C.Pictures of H35
