Mini hobby cnc lathe machine ML210
A.Standard configuration And specification
CNC system: BBF from Beijing.
4 tool post, tailstock
| Items | Specification |
| Max turning diameter | 210mm |
| The length of lathe bed | 400mm |
| The width of the lathe bed | 100mm |
| Spindle speed | 50-2250 r/min |
| Spindle specification | MT3 |
| spindle motor power | 600W |
| X-axis stroke | *80mm |
| Z-axis stroke | 250mm |
| X-axis moving speed | 1000mm/min |
| Z-axis moving speed | 2000mm/min |
| X-axis motor torque | 2N |
| Z-axis motor torque | 1.5N |
| X-axis feeding speed | 250mm/min |
| Z-axis feeding speed | 500mm/min |
| Number of cutting tool | 4 |
| Turret angle | 360 |
| Rotation accuracy | 0.005mm |
| Tailstock taper | MT2 |
| Tailstock stroke | 50mm |
| Repeat positioning precision | 0.01mm |
| Weight(Net/Gross) | 115/160KG |
B.Features
This machine can be equipped with servo motor,main motor adopts brushless motor.
A linear model, index and S type multiple deceleration methods to choose.
The built-in PLC program,the currently running PLC program can choose.
PLC program online display, real-time monitoring, real-time signal Tracking.
Support for the statement type of macro programming,Support with parameters of macro program calls the rigid tapping and flexible tapping can by the parameter set.
With rotation, scaling, polar coordinates,Fixed cycle and a variety of slotting compound cycle function.
With functions of historical alarm and resume operation,Easy operation and maintenance management.
The multilevel password protection function,convenient facilities management.

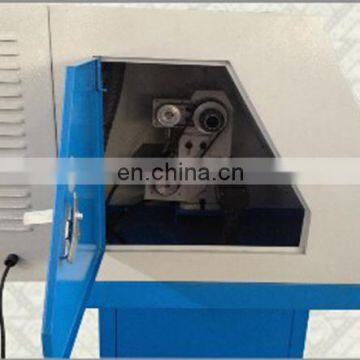

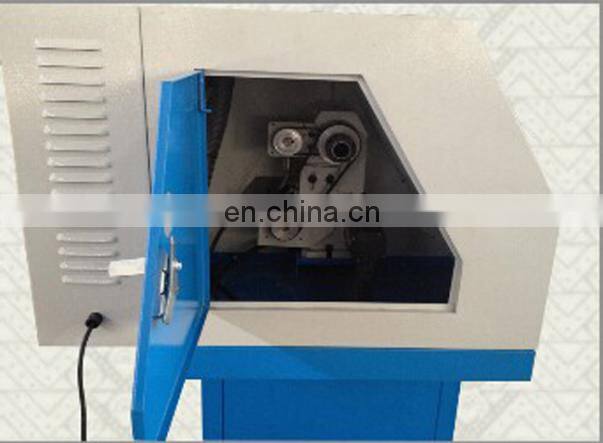

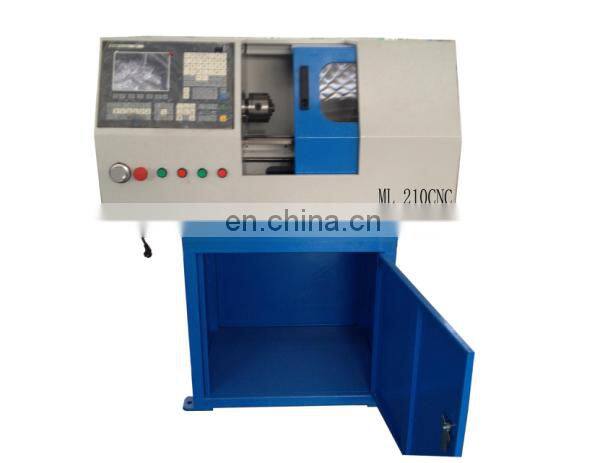

C.Pictures of ML210
