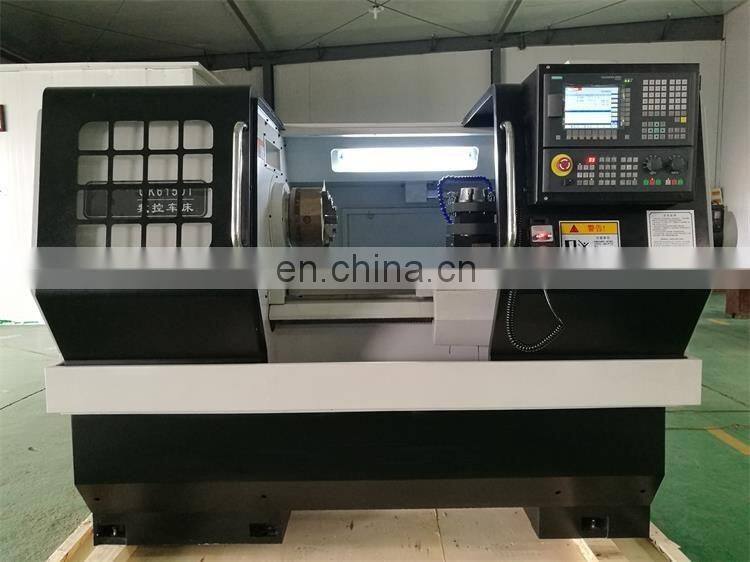

Horizontal Flat Bed Economic CNC Lathe CK6150T
Item |
Unit |
Technical parameters CK6150T |
Maximum tactical diameter of the lathe’s body |
mm |
φ500 |
Maximum tactical diameter of work-piece on the sliding plate |
mm |
φ290 |
Maximum workpiece length |
mm |
750/1000 |
Bed foot structure |
|
Separate bed foot |
Lathe bed width |
mm |
360 |
Main transmission form |
|
Independent spindle |
Speed mode |
|
Frequency stepless speed |
Range of spindle speed |
r/min |
150~2000 |
The form of the spindle head |
|
8-A2 |
Hole diameter of spindle |
mm |
φ70 |
Spindle centering axial taper |
|
1:4 |
Spindle taper |
|
1:20 |
Chuck dia. |
mm |
φ250 |
Main motor power |
KW |
7.5 |
Turret maximum stroke |
mm |
X:300; Z:760/1020 |
Fast-moving feed |
mm/min |
X:6000 Z:8000 |
Repeat positioning accuracy |
mm |
X:0.01 Z:0.015 |
Workpiece accuracy |
|
IT6-IT7 |
Workpiece surface roughness |
|
Ra1.6 |
Dia. of tailstock quill |
mm |
φ70 |
Tailstock quill stroke |
mm
|
120 |
Taper of tailstock quill |
|
MT5 |
Repeat positioning accuracy |
mm |
0.008 |
Section of turning tool |
mm |
25×25 |
Size(L×W×H) |
mm |
2300/2600×1500×1600 |
Net weight |
Kg |
2900/3200 |
Standard configuration: China cnc lathe machine price

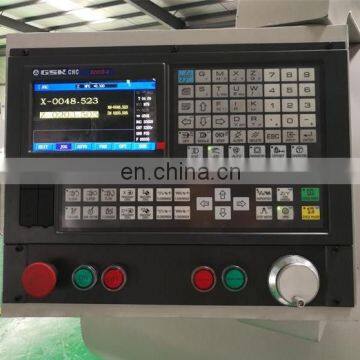

1.Cnc system :GSK928(China 's first brand)English interface
2.4-position tools
3.Automatic lubrication pump
4.Manual 3-jaw chuck Φ200mm
5.Manual tailstock
6.Voltage:3 phase 380v 50HZ(If you need other voltage ,please tell me in advance)
7.Water cooling system
lights
9.Tailstock Center
10. Meter / Inch Box
11.Tool Box with Tools
12. Operation & Service ManualCommunity Gear

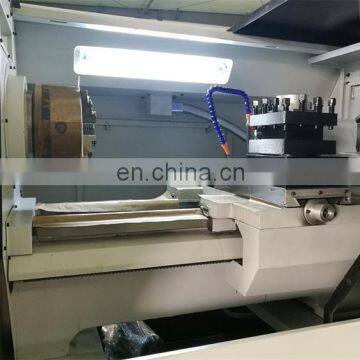

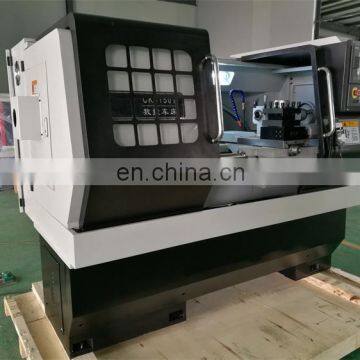

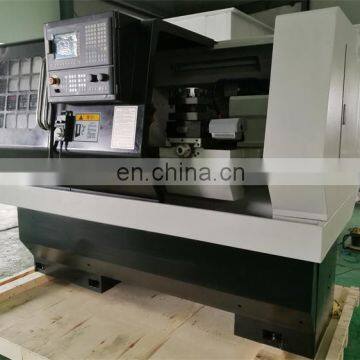

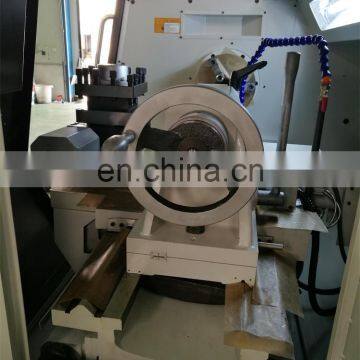

Reference pictures
Select configure
1.CNC system: Siemens808D,(warranty service)
2.Hydraulic chuck , pneumatic chuck,
3.Hydraulic tailstock, pneumatic tailstock,
4.Automatic feeder,
5.Horizontal six-station turret.
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
A: warranty is one year, but we will offer lifetime service for machine.
