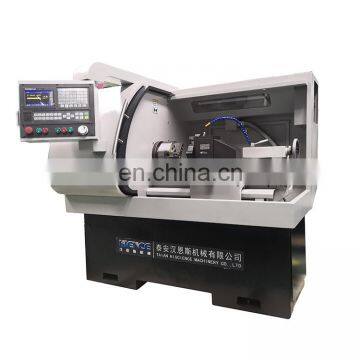

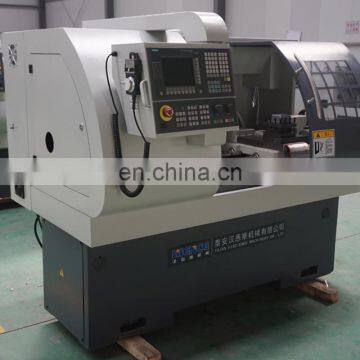

Horizontal Automatic Metal Cnc Turret Lathe Machine Prices Tool Equipment CK6432A

FOB Price

US$ 7,000 - 9,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HICNCE		Place of Origin	Shandong, China
After-sales Service Provided	Engineers available to service machinery overseas		Condition	New

1.System:GSK928TD-L,servo motor and drive

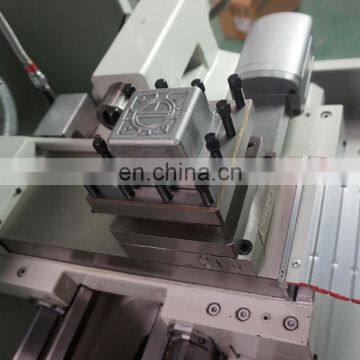

2.3-jaw chuck, 4-station electric tool post.

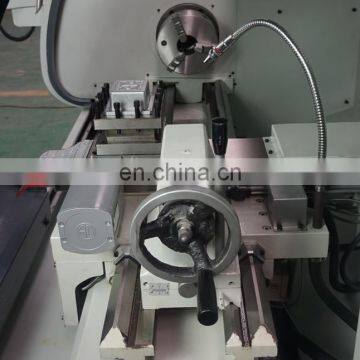

3.Manual tailstock, Semi-Rugged

4.Cooling system;Lighten system; Automatic lubrication system;

ITEMS	Specifications
Max. swim over bed	Φ360mm
Max. swim over carriage	Φ150mm
Max. length of work piece	450/700mm
Range of spindle speed	150-2500rpm
Spindle bore	Φ60mm
Taper of spindle bore	MT6
Stations of tool carrier	8 tool post
Max size of cutter arbor	16mm×16mm
Min. setting unit of motor	(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post	(Z) long 8 m/min, (X) cross 4 m/min
Taper of tailstock quill	MT4
Max. range of tailstock quill	100mm
Motor power	4KW
Packing size(length ×width ×height)	1850 mm×1100mm×1550mm
Net weight	1500kg

Optional brands of CNC systems	SIEMENS,FANUC, KND, SYNTEC
Optional types of the tool post	horizontal Six-station, horizontal eight-station
Optional types of the workpiece clamping	hydraulic chuck,pneumatic chuck,spring collets
Optional types of the tailstock	Hydraulic tailstock,pneumatic tailstock
