Chinese Small Metal Swiss Type Cnc Lathe Fanuc Automatic Machine Manufacturer H-F203E

FOB Price

US$ 30,000 - 36,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HIENCE		Place of Origin	Shandong, China
After-sales Service Provided	Engineers available to service machinery overseas		Condition	New

Description		Unit	Specification
Main spindle	Stroke	mm	75 (Standard) ; 120 (Optional); 210 (Optional) (All travel synchronised guide sleeve)
	Max. RPM	rpm	100~12000
	Max. turning diameter	mm	20
	Additional positive brake	°	Infinite
	Main spindle bore diameter	mm	22
Tooling	Number of O.D tools	ea	5
	OD tool size	mm	12X12
	Number of front work tools	ea	4
	Max. drilling diameter(front)	mm	7(ER11)
	Max. tapping diameter(front)	mm	M6(ER11)
Motor	Number of cross driven tools	ea	4
	Cross driven tools Max .rpm	rpm	5000
	Max. drilling diameter( radial direction)	mm	8(ER16)
	Max. tapping diameter( radial direction)	mm	M6(ER16)
	Maximum diameter of saw blade milling tools( radial direction)	mm	30(ER16)
	Main spindle motor	kw	2.2/3.7
	Cross driven tools motor	kw	0.75
	Servo motor	kw	(X,Z,Y)0.75
	Lubricant motor	kw	0.25
	Coolant pump	kw	0.85
	Rapid traverse rate	m/min	X/Y 30,Z24
Others	Coolant tank capacity	L	100
	Lubrication tank capacity	L	10
	Center height	mm	1050
	Dimensions(L×W×H)	mm	1750×910×1700
	Machine weight	kg	1780
	Power consumption	kw	7
	CNC controller	Standard	LNC-T568

91.8% Response Rate

100% Response Rate

Our Company

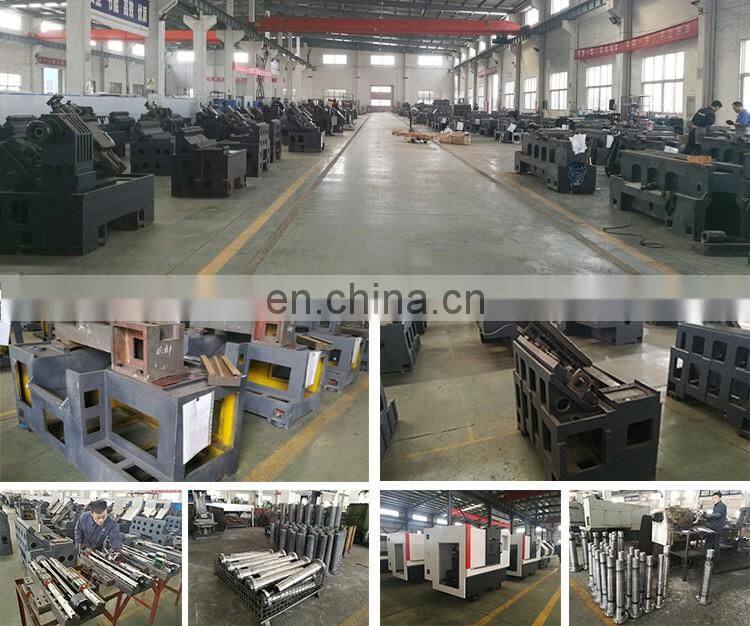

Factory

Packing & Delivery

Packaging
Size	1750×910×1700
Weight	1780kg
Packaging Details	The normal package is wooden box(Size: LWH). the wooden box will be fumigated.
