Home > Products > Titanium material > Supplier ASTM B861 Titanium seamless tube and pipe or heat exchanger use of ASTM B338 Pipe

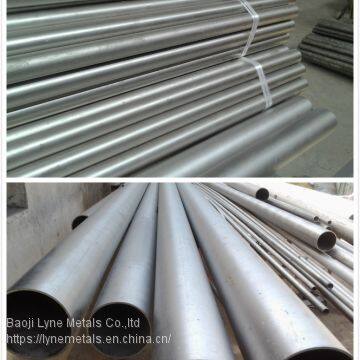

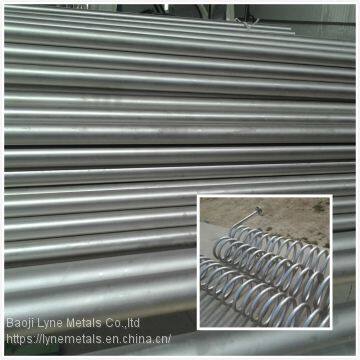

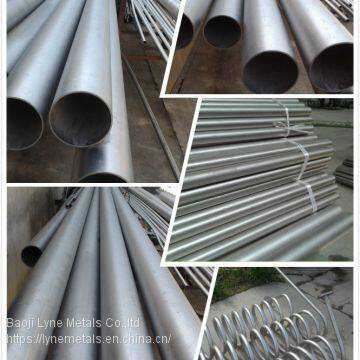

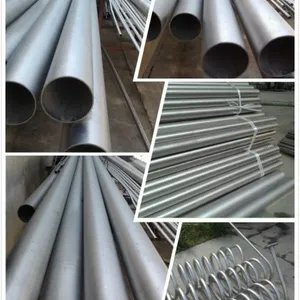

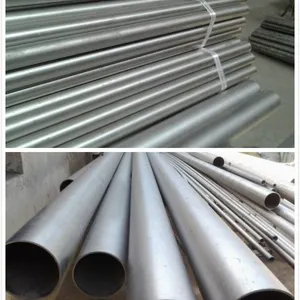

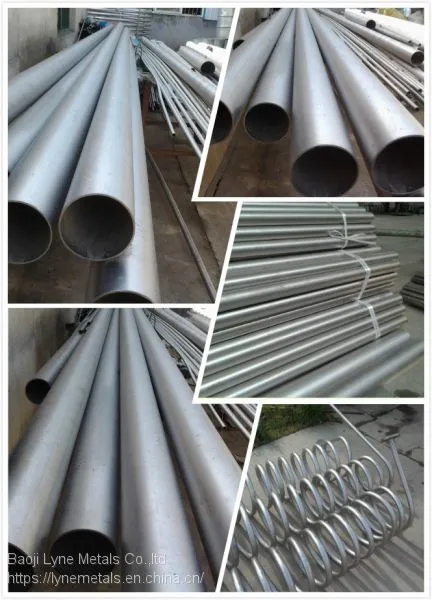

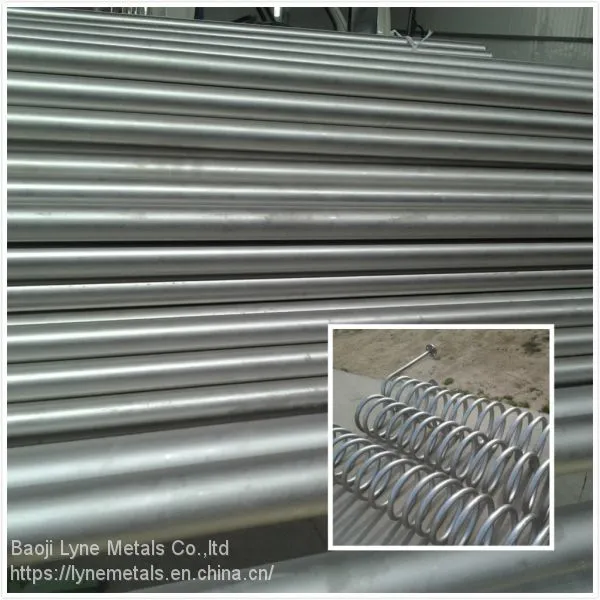

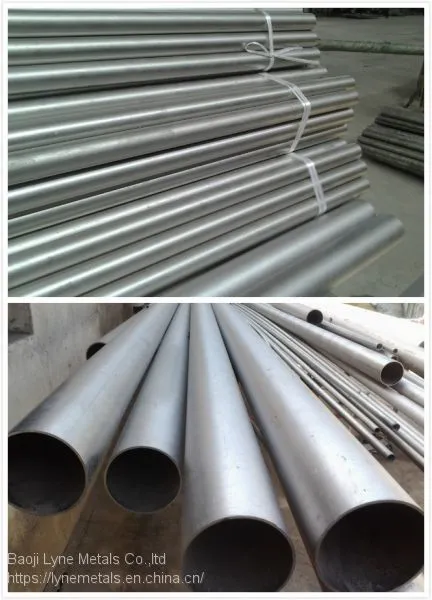

Supplier ASTM B861 Titanium seamless tube and pipe or heat exchanger use of ASTM B338 Pipe
- 10 Ton / Tons per Month
- shanghai
- T/T L/C Cash Other
- 20 days
-
Supplier EFW Titanium /Nickel welding pipe and Pipe fittings witn RT test
-
Titanium pure or alloy forged flange or Machined parts with NPT screw
-
Supplier Titanium alloy GR5 round plate or disc for Coating using
-
TIG welding pipe or tube for titanium or nickel GR2 GR7 GR12
-
Customized unique astm b861 gr7 titanium bicycle pipes
-
Best price grade 5 titanium tube
Product Details
| Brand Name: | LYNE | Place of Origin: | China | Model Number: | 2 |
| Material: | TITANIUM | Length: | 1000-9000MM | Application: | Industrial |
| Technique: | Welded | Standard: | ASTM B862 | Grade: | gr2 |
| Wall Thickness: | Sch10-80s | Outer Diameter: | DN100-1200 | Inside Diameter: | NB100-NB800 |
Product Description
Titanium pipe /tube
1. Grades:A) Gr1 (Cp Titanium, Low oxygen) B) Gr2 (Cp Titanium, standard Oxygen) C) Gr5(Ti-6Al-4V)D) Gr7(Ti-Pd, Standard Oxygen)E) Gr9(Ti-3Al-2.5V)F) Gr11(Ti-Pa, Low Oxygen)G) Gr12(Ti-Mo-Ni)H) Gr16(Ti-Pd, Standard Oxygen)I) Gr17(Ti-Pd, Low Oxygen)
2. Products treatment: Hot rolled, Annealed, Pickled( according to cutomers' requirement.
3. Physical property of all titanium Grades we could provide:
Material | Tensile strength(MPa) | Yield strength(MPa) | Elongation (%) |
Gr1 (CP1 Titanium, low oxygen) | ≥240 | ≥138 | ≥24 |
Gr2 (CP2 Titanium, standard Oxygen) | ≥345 | ≥275 | ≥20 |
Gr3 (CP3 Titanium, standard Oxygen) | ≥450 | ≥380 | ≥18 |
Gr7 (Titanium, 0.12-0.25%Pd) | ≥345 | ≥275 | ≥15 |
Gr9 (Ti-3Al-2.5V) | ≥620 | ≥483 | ≥10 |
Gr11(Ti-Pd0.12-0.25%, low Oxygen) | ≥240 | ≥138 | ≥24 |
Gr12(Ti-0.3%Mo-0.8%Ni) | ≥483 | ≥345 | ≥18 |
Gr16(Ti+Pd0.04-0.08%, standard Oxygen) | ≥345 | ≥275 | ≥20 |
Gr17(Ti+Pd0.04-0.08%, low Oxygen) | ≥240 | ≥138 | ≥24 |
4. Processes of titanium:
