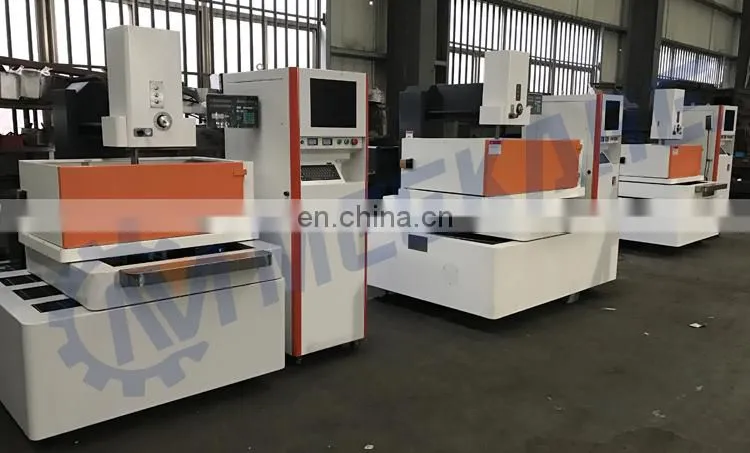

High-precision Cutting Fzt 500 Cnc Edm Topscnc Wire Cut Machine Price

Technical Parameters:

Features:

◆ Adopt Taiwan high level linear guide rail, Taiwan double-nut precision ball screw, and high strength body structure design.

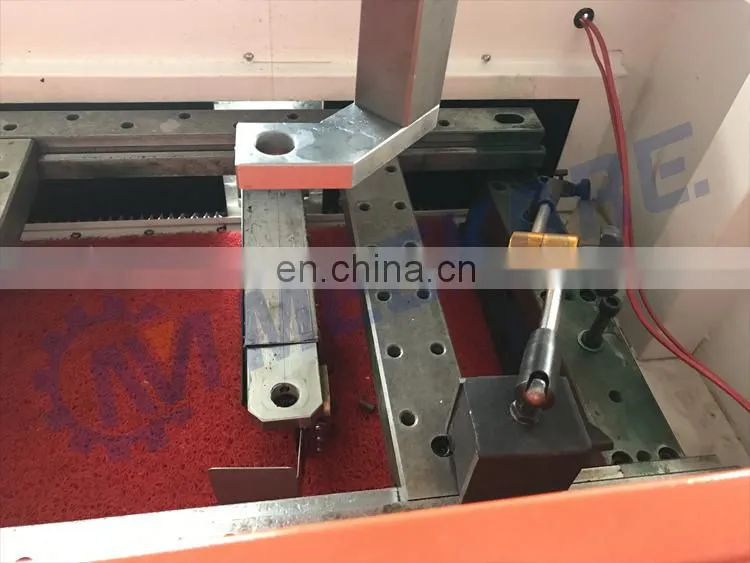

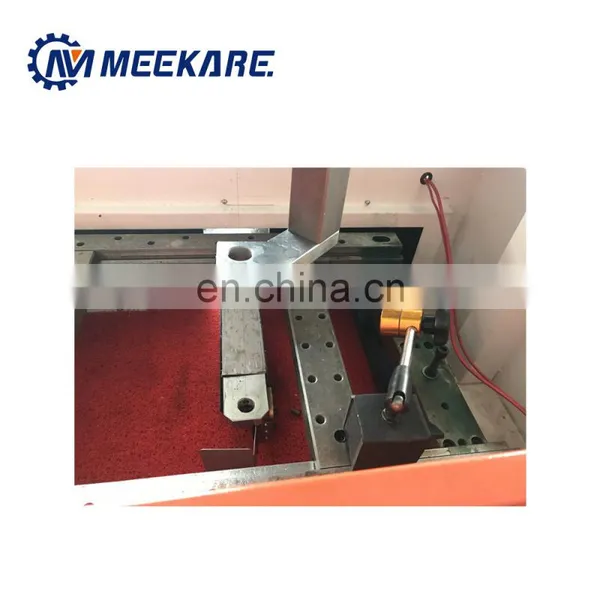

◆ Compound type clamp, which is suitable for different shapes workpiece' multi-points position clamping.
◆ High precision optical electronic scale, digital display, can realize X, Y-axis real-time location tracking.
◆ New type multi-layer high-density filter device, with large water tank, high pressure pump water circulation system, making jet more uniform, significantly extending cutting fluid'scycle life, and reduce the cost.

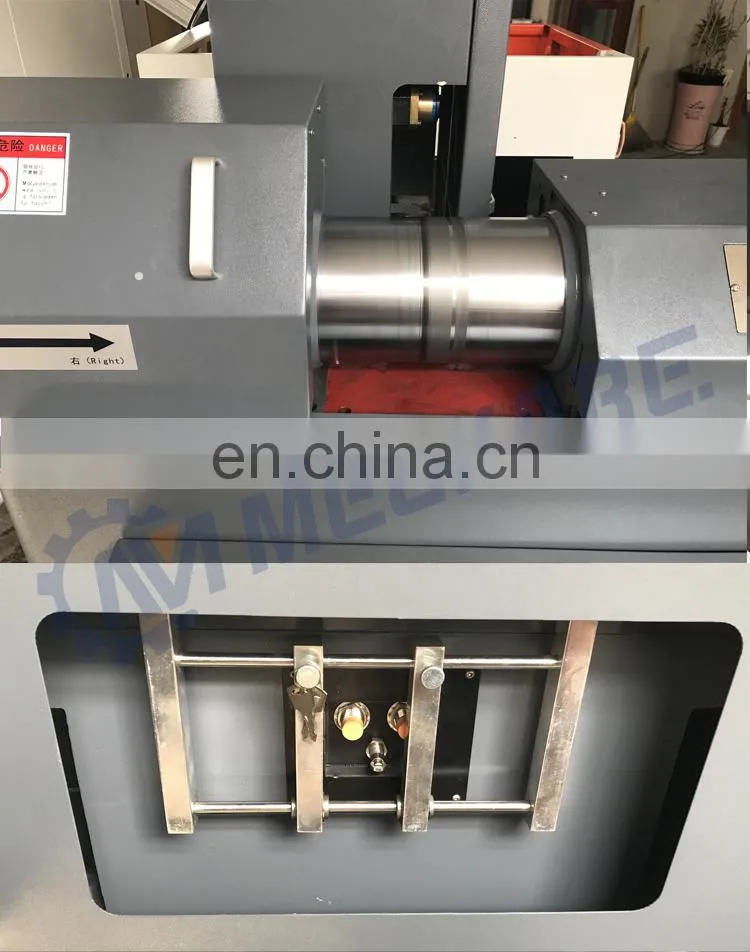

◆ Wire tube is driven by frequency conversion, Taiwan linear guide rail, flexible non-contact reversing switch, reduce the impact of changing direaction, make it more smoothly, to ensure the smooth finish.
◆ Unique molybdenum wire tension mechanism overcomes the shortcomings of simple hammer mechanism's slow reaction to wire tension fluctuation, effectively guarantee workpiece's verticality and eliminate surface streaks.

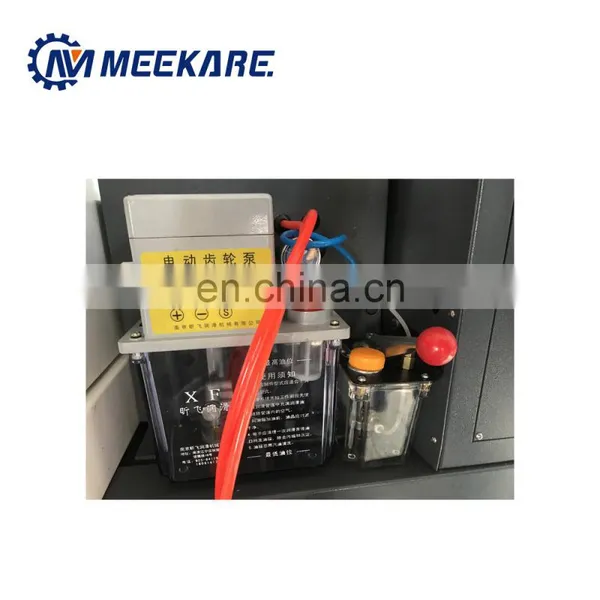

◆ Automatic lubrication system ensures all moving parts are fully lubricated, making them more resistant to wear and extend using life. Machine oil return system ensures machine's cleanliness.
◆ UV axis taper mechanism adopts Taiwan linear guide rail, can realize taper machining, and increase mechanism's rigidity and wire moving's stability.

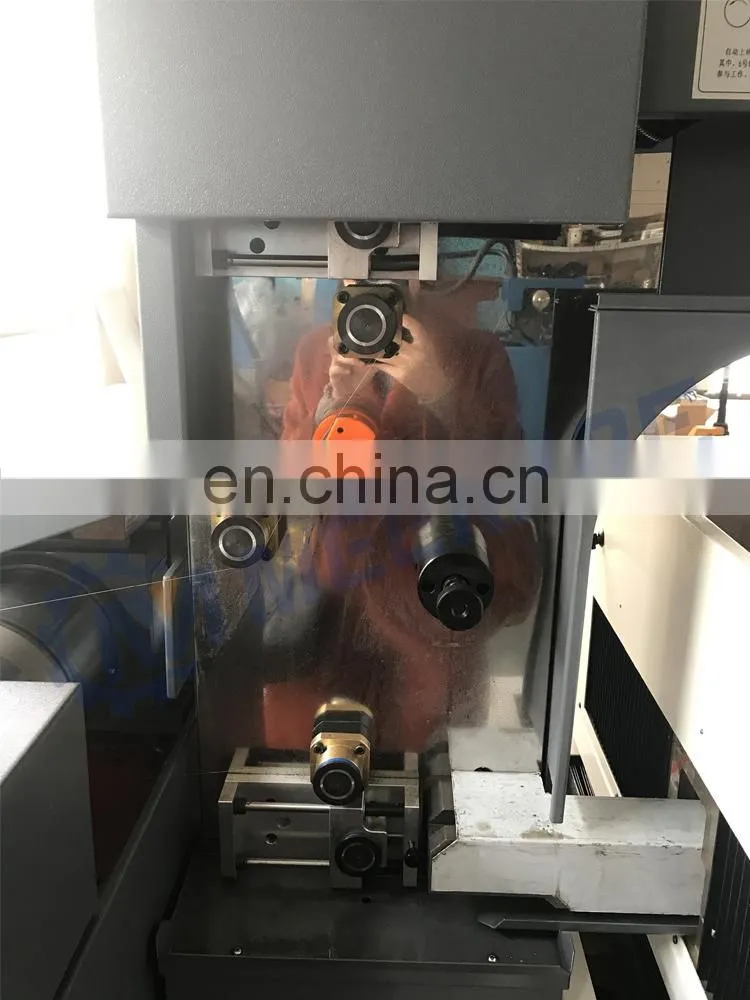

◆ Unique wire-stabilizing mechanism, optimized guide wheel assembly, gem up and down wire-guiding mouth, electric lift type up wire-guiding mouth can make gem wire-guiding mouth get maximized close to workpiece surface during machining, minimize molybdenum wire's shake, avoid cutting surface' line marks, and improve machining surface's accuracy and finish.
◆ Whole machine adopts new type full protective structure, more environmentally friendly and overall appearance more beautiful.
◆ Can use various cutting methods to realize 2-7 times multi-cut, making final product's cutting effect can be comparable to slow speed EDM Wire Cut Machine.

Optional Configuration:

◆ Servo drive: AC servo drive system, can realize machine's fast moving and positioning.
◆ Handheld unit: Adopts imported manual control box components, making machine's operation more simple and faster.
◆ Cosed-loop control: The system has closed-loop control function, high precision electronic ruler and machine realize synchronous moving, and give feedback to servo and control system, to realize machine's high accyracy machining.

Main purpose and scope:

Widely used in fields of mold, bulk production, electronic equipment, precision machinery, medical equipment, auto parts, aerospace and military industries, etc.
1. Mainly suitable for machining kinds of stamping die, mold powder metallurgy, mosaic cavity mold, drawing die, corrugated board molding.
2. Can be used for machining tiny holes, shaped groove, narrow, standard defects and complex-shaped workpiece.
3. Can be used for machining model forming parts, tool cam and special cam gear.
4. Can be used for machining high hardness materials, cutting into thin slices, cutting precious metal materials.
