Help CenterTop Sale Horizontal Cnc Drilling and Tapping Machine Automatic
Related Products
-
Best Price Vertical PLC Drilling and Tapping Machine for SaleUS$ 1,000 - 5,000MOQ: 1 Set -
Best Price Horizontal Used Cnc Drilling and Tapping Machine for SaleUS$ 2,000 - 5,000MOQ: 1 Set
-
Horizontal Used Drilling and Tapping Machine AutomaticUS$ 2,000 - 5,000MOQ: 1 Set
-
Used Core Drilling and Tapping Machine Automatic for SaleUS$ 2,000 - 5,000MOQ: 1 Set
-
Plumbing Fittings Auto Parts Double Spindle Cnc Drilling and Tapping MachineUS$ 1,000 - 8,000MOQ: 1 Set
Related Machine >>" href="http://delinfaucet.en.china.cn/">(>>" href="http://delinfaucet.en.china.cn/"> we have the whole foundry produciton line machinery,which widely used to processing plumbing, sanitaryware, car spares, vaives, iron cast lines and so on.>>" href="http://delinfaucet.en.china.cn/"> )
Main equipments : automatic SPM machining equipment , such as horizontal CNC drilling / milling / tapping machine ; Double head drilling and tapping machine, automatic sand moulding machine, low-pressure die casting machine, gravity casting machine, furnace, core shooting machine, mixing sand machine, shot blasting machine (abrator),polishing machine etc.
1. Characteristics & Applications

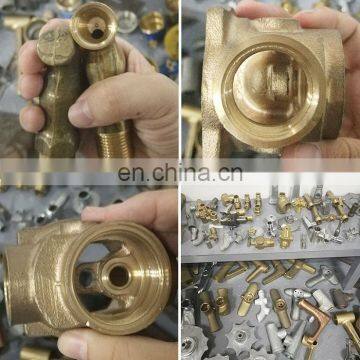

Machines are suitable for drilling and tapping plumbing fittings,hardware,sanitary ware,auto parts which gravity model casting with brass,zinc,aluminium,steel,iron ore and alloy,ferrous metal and non-ferrous metal.
1.Applicable for processing parts of large batch, one-off drilling and threading extending high efficiency.
2.Both the left and right workbench adopt cylinder for minimal vibration.
3.Clamp system uses cylinder to hold the mould for fast fixing.
4.Slider system adopts guide way ultrasonic frequency quenching and lubrication system for better capability.
5.Manually oil injector, manually feeding lubricating oil before and after the processing can maintain the machine in good function.
6.Tapping main shaft performs self-acting feed by leading screw so as to realize tapping and ensure its feeding stability.
2. Specifications
| Weight of electric tapping machine | 1300 kg |
| Biggest drilling diameter | 50 mm |
| Biggest tapping diameter | 45 mm |
| drilling power | 3 kw / 4 p |
| tapping power | 2.2 kw / 6p |
| Size of electric tapping machine | 650 x 1130 x 1630 mm |
| Size of working plate | 500 x 225 mm |
| Drilling speed | 790 - 1200 r / min |
| Tapping speed | 435 - 620 r / min |
| Go up and down distance | 350 mm |

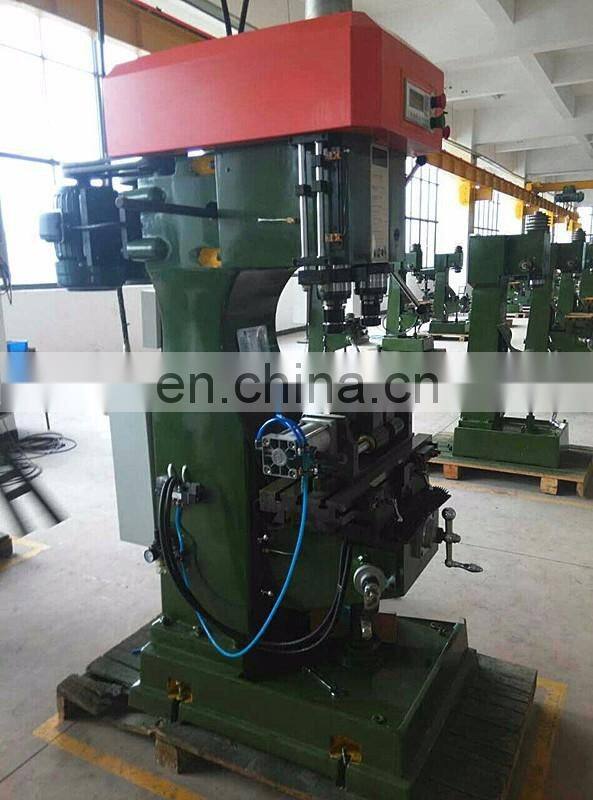

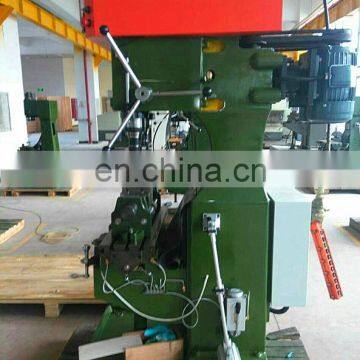

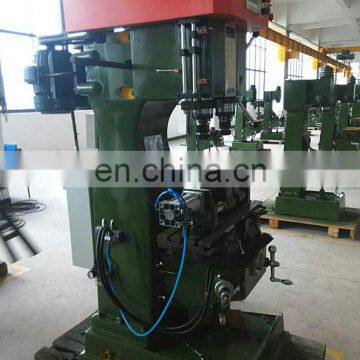

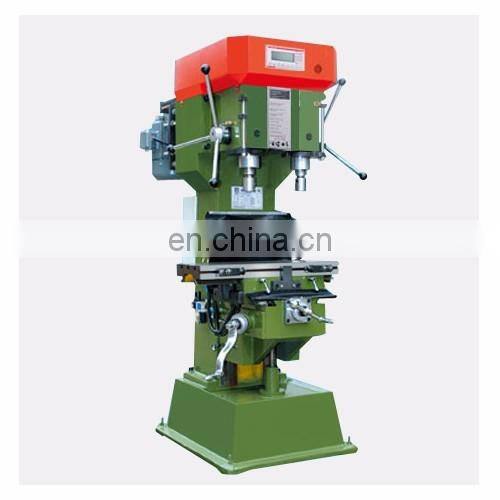

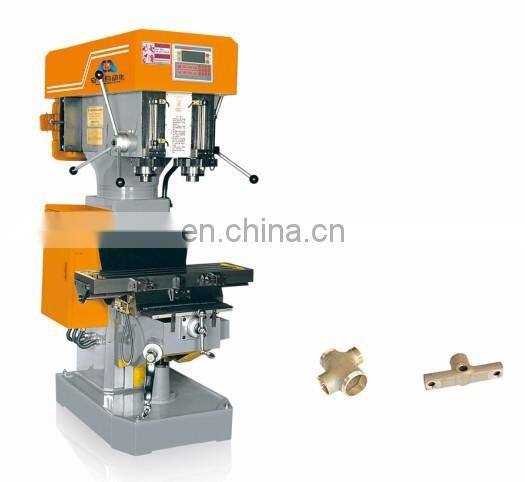

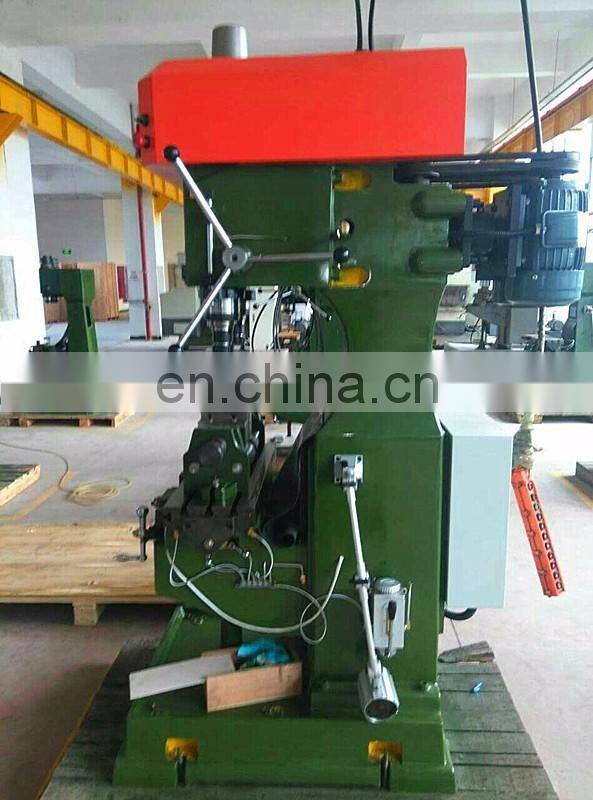

3.Photos of Machine

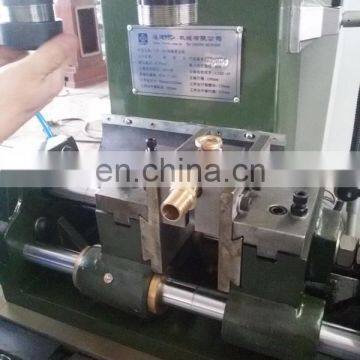

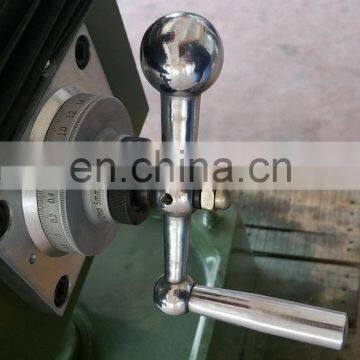

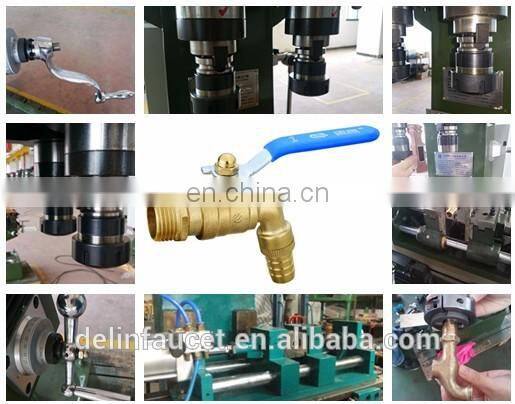

4. The Details of Machine
5. Main Function Features Of Machinery
1. Belt driving, low noisy.
2. Suitable for drilling and tapping hardware applications, sanitary industry, and small bent pipe.
3. The spindle can assemble the rubber, cloth, hemp, and sand wheel and sang belt of diameter ≤ 350 mm, breadth ≤ 75 mm .
4. Spindle feeding can be not only automatically but manually, change and operation easily.
5. Auto feeding can use fixed distance operation,it will go back to the start place automatically.
6. The Process Of Faucets
Main products: Automatical molding machine, Low-pressure die casting machine, Gravity casting machine, Furnace, Core shooting machine, Mixing sand machine, abrator, drilling and tapping machine etc. Widely used in plumbing, sanitaryware, car spares, vaives, iron cast lines and so on.
For drilling and tapping machine automatic:
1,Before the shipment, we will spray anti-rust oil on the machine's surface .
2,Then use the plastic film packaging to prevent moisture and rust.
3,Finally, put the machine in wooden cases, use solid seaworthy wood box package with steel belt, it will be save space as much as possible for container loading.
1.Company Profile
Our company was established in 1998. The products spread all over domestic market, as well as nearly twenty countries. In India, Iran, Vietnam and other internatioanl exhibition booth. Meanwhile it has enlarged many sales and aftersale service centers. And a top-level talents team are ready for service at any time, and this promises all kinds of customers' problems can be dealt promptly.
2.Exhibitions & Some Cooperation Partners
3.Certficates
You Can Contact Christy Zheng :
QQ : 442547145
Wechat : 442547145
Whatsapp / Tell : 0086+13163971881
Send Your Inquiry Details In The Below For Free ,
Just Click " Send " Now !
