Plumb fittings casting iron machine metal faucet door handle manufacturing machine foundry pieces casting brass machine

1. Die Casting Machine Main Function Features



(1) Circuits are all controlled by PLC,data setting adopts touch screen ,electrical components are

imported from Japan and hydraulic components are as well imported from outside.



(2) For gravity model casting with brass and ferroalloy.



(3)Front casting,lateral casting and secondary casting are optional.



(4) Individual cooling time of model is adjustable.



(5) The dismantling ,assembly and cleaning of model are convenient.



(6) Two functions of manual and automatic circulation are available.Totalizing counter and preset

counter are arranged to record the piece number of on duty production.



(7) Adjustment range of model is defined to make the using of different models easy and reduce

requirement of model's exterior physical dimension.



(8) This casting machine can store 100 sets model casting operation programs and you can set your

password.

2. Casting Macine Specification

Biggest Size of The Mould	Φ 550 mm
Heaviest Weight of The Mould	150 kg
Largest Merger Distance	≤  280 mm
Hydraulic Pressure	40 - 60 kPa
Angle of Lateral Casting	0° - 90°
Frontal Casting Angle	0° - 110°
Hydraulic Lube	165 L
Net Weight of The Whole Machine	2000 kg
Size of Appearance of Machine ( L * W * H )	2350 × 2100 × 1860 mm
Installing Top Core Available	Itinerary of Top Core 20 mm
Total Power	5.5 kw

_{* some parameters can be customised by client's requirement.}

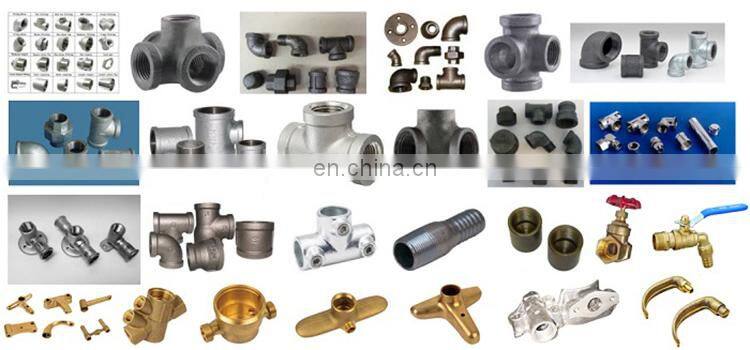

Finished Products Showing

Related machine >>" href="http://delinfaucet.en.china.cn/">(>>" href="http://delinfaucet.en.china.cn/"> we have the whole produciton line machines widely used to processing plumbing, sanitaryware, car spares, vaives, iron cast lines and so on.>>" href="http://delinfaucet.en.china.cn/"> )
Main products : Automatic Machining Equipment , such as Horizontal CNC Drilling / Milling / Tapping Machine ; Automatical molding machine, Low-pressure die casting machine, Gravity casting machine, Furnace, Core shooting machine, Mixing sand machine, Shot blasting machine (abrator),Polishing machine ect.

For the die casting machine :

1,Before the shipment, we will spray anti-rust oil on the casting machine's surface .

2,Then use the plastic film packaging to prevent moisture and rust.

3,Finally, put the machine in wooden cases, use solid seaworthy wood box package with steel belt, it will be save space as much as possible for container loading.

1. Before payment

a. Free contact for the most suitable casting machine.

b. Free professional design for each customer especially.

c. Welcome to visit our factory.

2. After-Sales Service

We will send engineers / technicians to make commissioning at buyer’s factory, train the casting machine works well, and also supply the technical support for free and spare parts at good price always.

3. Guarantee Period

One year. During the guarantee period, the seller guarantee to solve all problems may occur due to machine's quality or wrong design, and to provide all necessary spare parts for repair, Seller can send the technician to buyer's factory on seller's account if problem is serious and can't be solved by Buyer.

4. Payment Terms

30% as deposit, 70% after the casting machine is ready before delivery.

5. Lead Time

Our delivery time generally it is 20-30 days if the casting machines are in stock, or it is 30-50 days if the machines are not in stock, it is according to quantity.

Nan'an Delin Machinery Manufacturing Co., Ltd.

1. We are one manufacturer of metal foundry machinery and machining machinery.

2. We are production automatic molding machine, die casting machine, compound CNC polishing machine , SPM machine(compound CNC milling machine), furnace, core shooting machine, mixing sand machine and so on.

3. Our machines are extensively used in producing and machining plumbing, sanitary ware, car spare part, valve for brass, aluminum, zinc and iron cast line etc.

4. We have professional technical support and after sale service. With a complete line machines, good quality, reasonable prices and stylish designs.

Customer Visit

Home And Abraod Exhibition

>>" href="http://delinfaucet.en.china.cn">

Certificate Of Machine

Q1: Can i have your quotation?

     A: First, for the price of brass alloy casting machine, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable casting machine.

Q 2: How to operate and maintain the casting machine?

     A : First, we will provide a professional and detailed USER GUIDE to you with the casting machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.

Q 3: Where is your factory located ? How can I visit it ?
     A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.

Q 4 :What’s dimension of your workpiece ?

      A : In order to configure suitable size machine for you. we should get your info. We can professional design as your requirement.

Q 5: Can you guarantee you quality?

     A : Of course. We are the manufacture factory ,more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

For more technical details, pictures and video please contact Rophy !
