High Speed VBM-2518L Double Axis Roller Linear Guide Milling Machine CNC Gantry Machining Center Chinese Price

Horizontal Machining Center Co., Ltd.
High Speed VBM-2518L Double Axis Roller Linear Guide Milling Machine CNC Gantry Machining Center Chinese Price thumbnail-1
High Speed VBM-2518L Double Axis Roller Linear Guide Milling Machine CNC Gantry Machining Center Chinese Price thumbnail-2
High Speed VBM-2518L Double Axis Roller Linear Guide Milling Machine CNC Gantry Machining Center Chinese Price photo-1

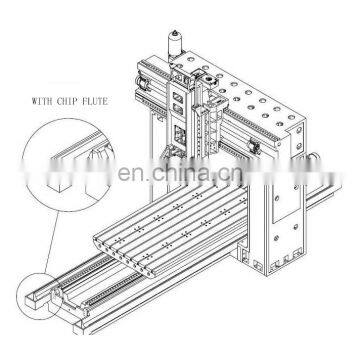

High Speed VBM-2518L Double Axis Roller Linear Guide Milling Machine CNC Gantry Machining Center Chinese Price photo-2
US$ 140,000 - 170,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
VBM
Place of Origin:
Guangdong, China
Type:
Gantry
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name VBM
Place of Origin Guangdong, China
Type Gantry
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year warranty
Weight 24000kg
Dimension(L*W*H) 7000mm*4500mm*4000mm
Voltage 380V
Condition New
Power(W) 40kw
Machine Description

Feature:

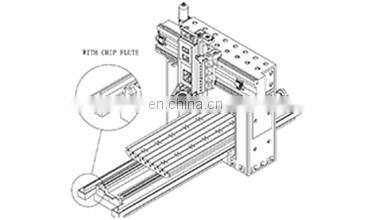

◆X, Z axis are linear guide rail,Y axis is sliding guide rail.
◆With FANUC CNC control system,high performance and high efficiency.
◆High acceleration positioning,the best torque acceleration and deceleration movement.
◆The spindle is made in Taiwan, spindle motor pulley and belt.
◆High speed and high rigidity 6000/8000rpm spindle(Optional).
◆Spindle specifications with BT50.
◆X, Z axis stainless steel rail protection; Y axis armored leather tiger protective cover.

Horizontal description of the horizontal machine tool: X direction is the moving direction of the moving piece;

Y is the moving direction of the moving part; Z is the moving direction of the moving part.

Item
Unit
VBM-2518L
Work table size
mm
2500*1600
The largest load
kg
5000
Gantry width
mm
2000
Three axis rapid move speed
mm
2500/2000/1000
T slot(number-size x spacing)
9-22 x 180
Highest spindle rotation speed
rpm
6000
Spindle specification
BT50-∅190
Precision positioning
±0.015/300
Repeat precision positioning
mm
±0.01
CNC Control System
FANUC OI-MF+Coolant Systems(5)
Spindle(drive ratio)
Belt Type(1:1)
Machine Dimensions
mm
7000*4500*4000
The Weight(about)
kg
24000
Spindle to work table surface distance
250-1250

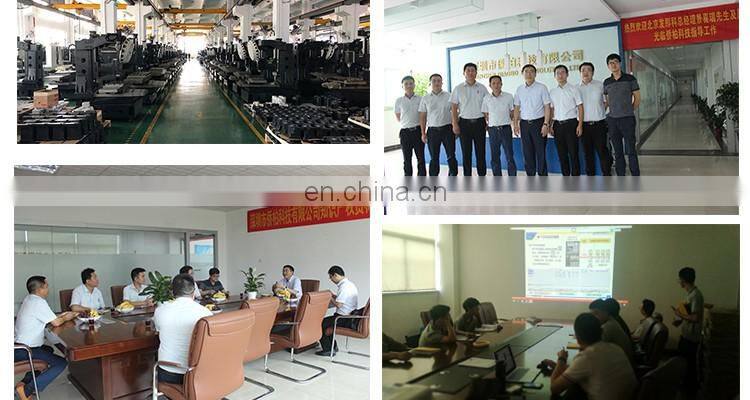

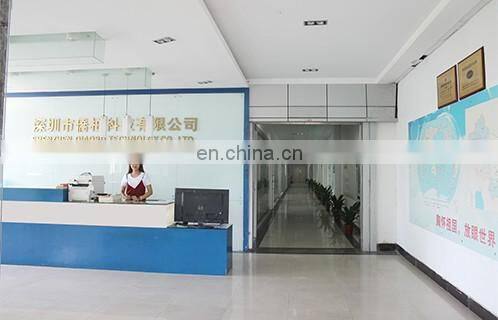

Our Company

        Shenzhen Qiaobai Technology Co., Ltd. is a high-tech enterprise mainly engaged in the development, research, production, and sales of drilling and tapping machines, high-speed precision engraving and milling machines and comprehensive machining centers.

        At present, the company has a series of drilling and tapping machines, high-speed precision engraving and milling machines and integrated machining centers. The company's products are suitable for automotive industry injection molds, metal molds, engraving and engraving molds, mobile phones, 3C and 4G industries, heat exchanger chambers. Such as: car tires, small appliances, footwear, trademarks, graphite electrodes, toys, wafers, micro-chapters, printing, crafts, watches, zippers, hardware accessories, furniture, sports equipment, glasses, embossing wheels With aerospace parts, carburetor and more.

Quality Assurance

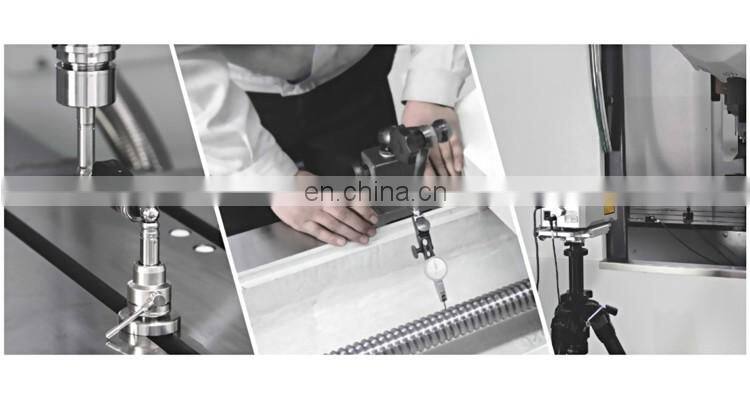

Strict quality management and precision instruments:

◆The British Renishaw ball barometer is used for cycle testing.All inspections before the machine are taken out to ensure mechanical accuracy.

◆Proofing samples before finished product shipments are all tested by three-dimensional precision.

◆Spindle and spindle motors are all subject to strict dynamic balance correction to avoid resonance when the spindle is running at high speed to ensure the stability of the machine and reduce noise.

◆Use the British Renishaw laser interferometer to correct the pitch of the screw rod to ensure the positioning accuracy and repeatability of the machine.Each machine must be inspected before exiting the machine.

Certifications
Packing & Delivery

◇Ship via Vacuum Wooden Case.

 ◇We will ship by the whole container directly for CNC Milling Machine.



Our Service


☆We promise support 1 year warranty for the whole machine.


☆We will try to become your close partner and become better.


☆We will online for 24 hours to give you professional service.


☆Our engineers are available to service abroad to solve problem.


☆We will do some trainings for you before the machine ship to you.


☆We will do well for the packaging to ensure the machine without damage.
