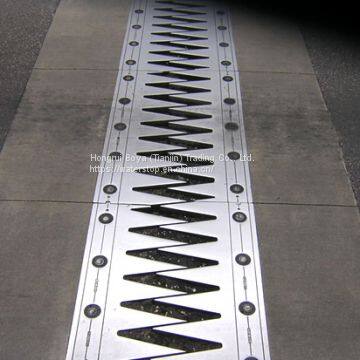

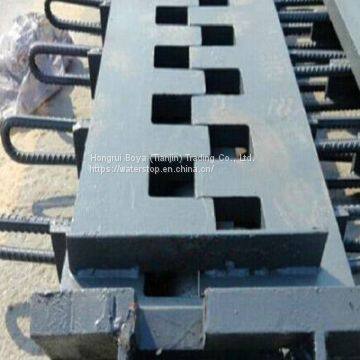

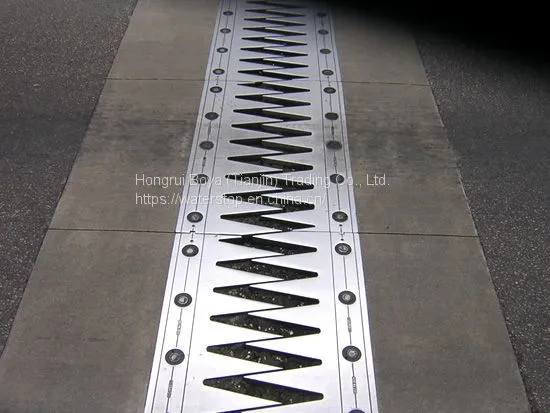

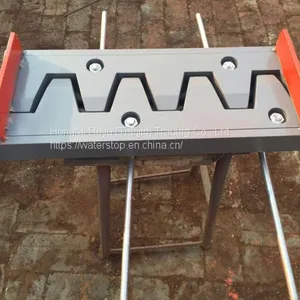

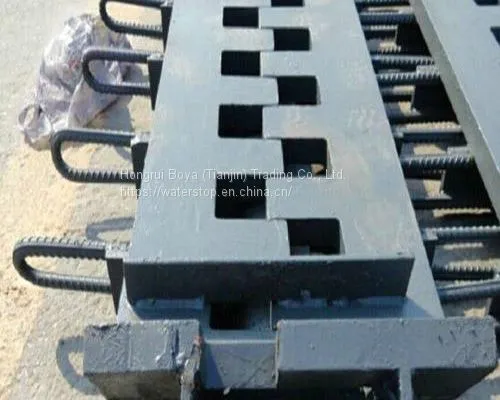

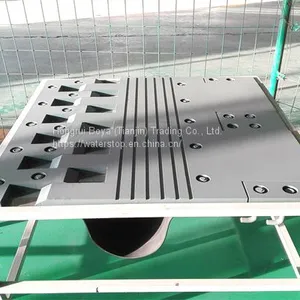

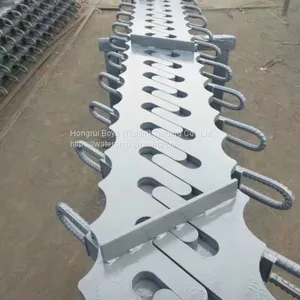

Steel Sliding Plate Finger expansion joints
Finger/comb/teeth type expansion joints in bridges contains steel edge profiles, featuring connection surfaces for deck waterproofing membranes, which are connected to the bridge deck by anchor loops. Finger Joints are cantilevered or simply supported steel tooth expansion joints. They are composed of pairs of independent elements with parallel teeth provided in lengths from 3 feet to full roadway widths.
Steel plate finger type expansion joints for bridges
Steel Sliding Plate Finger expansion joints
Contact us for details.
Applications
Steel plate finger type expansion joints for bridges are suitable for use under heavy traffic, and mainly applied to the device with 20-320mm expansion. Their special doweled connection system makes them particularly useful where the impact on the main structure should be minimised. Finger type joints are still specified on many bridge projects due to proven long-term structural performance. These joint systems are also convenient to install on bridge rehabilitation projects requiring a shallow joint depth and/or staged construction.
Steel Sliding Plate Finger expansion joints
Steel plate finger type expansion joints for bridges
Contact us for details.
| Type | C | h | Anchor bolt | b | H | Surface layer height |
| SF-80 | 80 | 28 | M18x180 | 740 | 33 | 120 |
| SF-100 | 100 | 28 | M18x180 | 800 | 33 | 120 |
| SF-120 | 120 | 30 | M18x180 | 860 | 35 | 120 |
| SF-140 | 140 | 30 | M18x180 | 920 | 35 | 120 |
| SF-160 | 160 | 30 | M18x180 | 980 | 35 | 120 |
| SF-180 | 180 | 32 | M20x200 | 1080 | 37 | 120 |
| SF-200 | 200 | 32 | M20x200 | 1140 | 37 | 150 |
| SF-220 | 220 | 32 | M20x200 | 1200 | 37 | 150 |
| SF-240 | 240 | 34 | M22x220 | 1260 | 39 | 150 |
| SF-260 | 260 | 34 | M22x220 | 1320 | 39 | 150 |
| SF-280 | 280 | 34 | M22x220 | 1380 | 39 | 150 |
| SF-300 | 300 | 36 | M24x240 | 1480 | 41 | 150 |
| SF-320 | 320 | 36 | M24x240 | 1540 | 41 | 150 |
| SF-340 | 340 | 38 | M24x240 | 1600 | 43 | 150 |
| SF-360 | 360 | 38 | M24x240 | 1680 | 43 | 150 |
Packing Details:
Delivery Details:
Around 20 days after receiving the payment.
Steel plate finger type expansion joints for bridges
Contact us for details.
Hongrui Boya (belongs to Shuanglin Group) professionally supplys Road, bridge and building support, expansion joint, waterproof materials.
It has one factory, three companies for domestic and foreign markets. 50 workers, 8 enginnerings, and over 20years experience of manufacture.
Main products are Bridge bearings, bridge expansion joint, concrete waterstop products, rubber air bag, polysulfide sealant etc.
ISO certification, CE standard, AASHTO, and SGS test, with a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in infraconstruction and other industries.
Factory Workshop
Store Room Our Team
Steel plate finger type expansion joints for bridges
Contact us for details.
A: We are factory.
A: Generally it is 2-3 days if the goods are in stock. or it is around 20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample, but the sample charges and freight cost should be paid by the customers.
A: Payment
