SNV309 Remote communication terminal

Instruction Manual

NOTE: THE BELOW INTROUCE USE FOR “ GSM MOBILE PHONE VERSION” AND “GPRS WEB SERVICE VERSION”, “ GSM /GPS MOBILE PHONE VERSION” AND “GPRS/GPS WEB SERVICE VERSION”, READER CHOOSE TO READ ACCORDING YOUR PURCHASE REQUIREMENT!!!!

Description

SNV series overhead type Fault Indicator system is based on the Sensor that through CT get the (10KV-50KV) line’s current signal, through smart computer chip by program calculating, Analysis ,judge the short circuit or ground fault. When Sensor detect the fault happen, then the Fault indicator warn the manager through turn red flag, and shine red led. It is good for power managing user to find the fault happen reason and place, then fast solve the problem and make the power restore.

SNV Fault Indicator with the aid of the professional control terminal equipment and Web server, it can achieve to remote read and manage the Fault indicator state on times.

There are two channels for reading and managing the remote fault indicators. One is through GSM mobile phone SMS command control. Second is user computer software control. Power managing user, can get the fault indicator information on times

One: Fault indicator sensor

Type：SNV308 Indicator

Description

SNV Indicators suitable for overhead lines with a 50KV below four remotes short circuit &Earth fault indicator, through measuring the current of a cable, to judge the fault on the power lines according to the change of current, grounding fault, and the fault state, real time current, battery voltage and other information is uploaded to the remote server, which provides reliable data for the various types of fault diagnosis and location of overhead lines

Character:

Function character

a. real time measurement of three-phase on line current；

b. Detection and judgment of short circuit fault；

c. Detection and judgment of ground fault；

d. Data Upload function；

e. Parameter setting

f. Support setting controller (PDA)

g. Intelligent motor control flop to red flag

h. Six three-color fault indicating led；(red, green, blue)

i. One yellow state led light；

j. Support line CT power charge for battery；

k. Support timing reset, power on auto reset, remote reset；

l. can be efficiently mounted and unloaded；

m. The structure parts are made of antirust and anticorrosion material；

n. In waking up state(wireless setting model),During 7 minutes, without operate, there will be auto reset.(Tips: in waking up state, FI prohibited fault test)

Function display

Flag state

Fault indicating Led light：

1) short circuit permanent fault indicating: Six 3-color led will shine red color, and four times, every 2 second，And turn to red flag at same time。

2) short circuit temporary fault indicating: Six 3-color led will shine green color, and four times, every 2 second，And turn to red flag at same time。

3) Earth Fault indicating：Six 3-color led will shine Blue color, and four times, every 2 second. And turn to red flag at same time.

yellow state Led light：

Battery voltage too low：Shine 1 time, every2second

Battery voltage low：  shine 2 time, evey2second

Wireless setting state:   shine 4 times, every 2 second

Two: Setting Controller(PDA)

Type: SNV306-Remote control PDA

Description:

   PDA is a setting controller, it use for wireless remote to set and change Fault indicator sensor and Control terminal parameter.

PDA have the function to read the Fault indicator real time state, such as: line current and Fault indicator battery voltage.

At same time, user can do the fault indicator one line test through PDA.

Three: Control Terminal

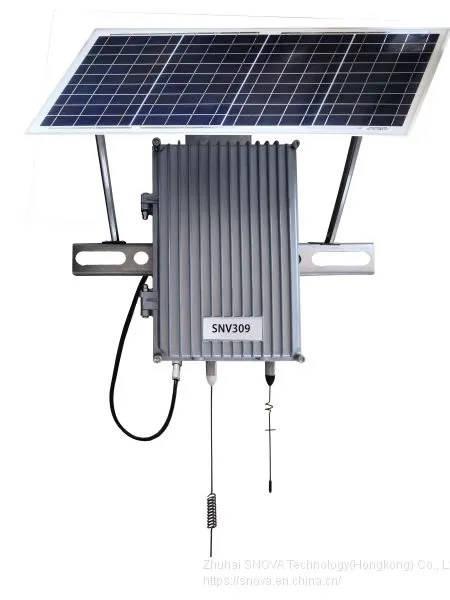

Type: SNV309-communication terminal RTU

  Control terminal is use for the communication between the fault indicator , GPS satellite and web server or user GSM mobile phone. There need insert a SIM card with GPRS and GSM function.

  First,  Fault indicator will auto upload information to Control Terminal real time through 433M wireless communication..

  Second, When user use mobile phone, send SMS command to control terminal, then terminal will execute command and send Corresponding information to user mobile phone.

  Third, When the control accessed with web server, the terminal will upload all information to web sever. User can read and manage the all the accessed fault sensor state real time through run a professional software on computer. Computer required connected with internet.

 Fourth, GPS Function, when the terminal put outside, then the GPS antenna will connect with GPS satellite and terminal will get the GPS position, longitude and latitude value.

Four: Software system

Type ：SNV10000  Software APP

    SNV software is a professional APP use for reading and managing fault indicators.

   User run the APP, then login and accessed with web sever. It is a convenient and intuitive interface. We can directly watch the current chart real time, and history current chart.

Then below is some of the software Page screenshot.
