YASHIDA horizontal grinder 525

Name: YASHIDA horizontal grinder 525
Brand: YASHIDA
Price: USD $17,600 - 33,700 / Set

FOB Price

USD $17,600 - $33,700 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port shanghai port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	YASHIDA	Place of Origin:	Anhui, China	Type:	Surface Grinding Machine
Certification:	CE ISO	After-sales Service Provided:	No overseas service provided	Weight:	1600kg
Dimension(LWH):	200016001900mm	Voltage:	380V	Condition:	New
Power(W):	3P	CNC or Not:	CNC	Max. Grinding Length:	580mm
Max. Grinding Diameter:	280mm

Product Description

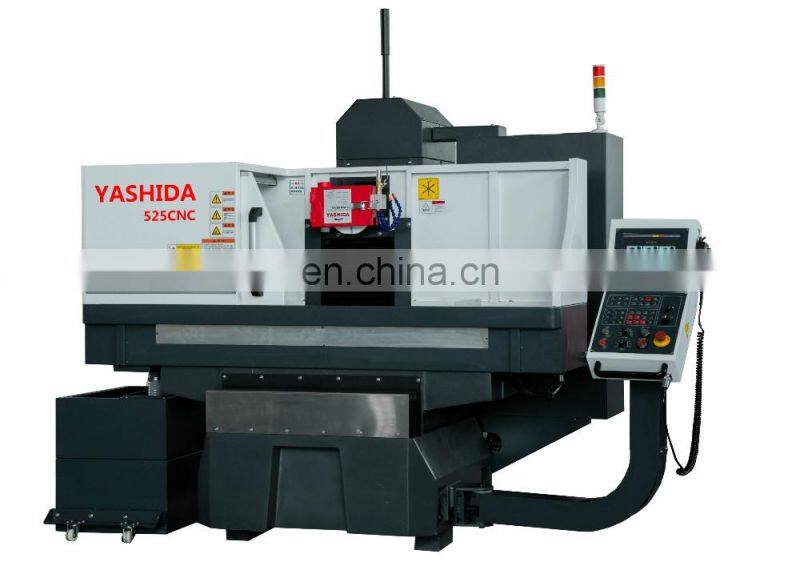

YASHIDA 525CNC HORIZONTAL GRINDER

MACHINE CHARACTERISTICS

1,The base adopts ridid and highrt stability structure instead of traditional grinding machine structure.Three supporting surfaces of 90mm height are designed,which makes the moving effect of the machine more convenient.

2,The saddle guide adopts double-V Sstructure with high stability and low vibration and strengthens the structures with higher density and width at the bottom to ensure the stability in motion.

3,High stability one V one flat structure is adopted to ensure stability and flexibility.

Specification		unit	horizontal grinder 525CNC(three axis)
Working ability	working table	mm	500/250
	Maximum left and right movement	mm	580
	Maximum movement front and rear	mm	280
	Maximum distance from work surface to spindle center	mm	480
	Work table maximum load capacity	kgs	200
Workbench structure	Workbench T-slot	mm*N	14*1
	Workbench speed	m/min	1 to 14
	Work surface	mm	≤0.003
	Work surface roughness	mm	≤Ra 0.63
	Mpg feed	mm/min	0.001/0.01/0.1
	Mpg maximum feed rate	mm	Y axis 800 X axis 1200
upper and lower structure	Mpg feed	mm	0.0001/0.001/0.01
upper and lower structure	Mpg maximum feed rate	mm	600

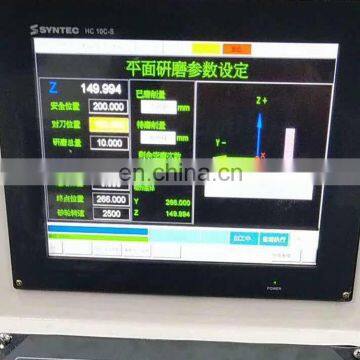

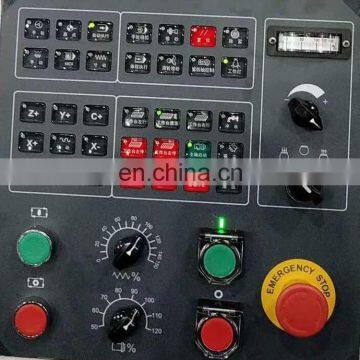

CNC system	grinding system	FC	SSYNTEC[EHMC]
Spindle speed	wheel speed	r/min	2850/3600
Spindle speed	wheel size	mm	2051331.75
Motor	spindle motor	HXP	3P
	Upper and lower servo motor	HXP	0.85KW
	Hydraulic motor, left and right servo motor	HXP	1.8KW
	Front and rear servo motor	HXP	0.85KW
	Flushing motor	HXP	0.4KW
	Vacuuming motor	HXP	0.75KW
Size	machine size	mm	200016001900
	package size	mm	230018002000
	net weight/gross weight	kg	1600/1800

HORIZONTAL GRINDER AREA

Horizontal grinding area is mainly for plane machining, groove machining, step machining, mirror machining, connector processing, rectangular tooth machining, tungsten steel tool processing, roller sanding, etc.

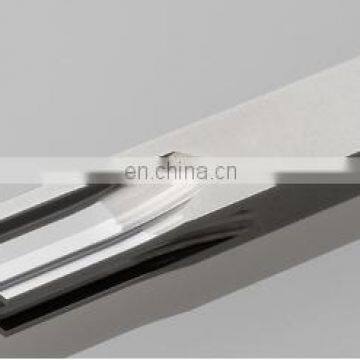

Tungsten steel blade

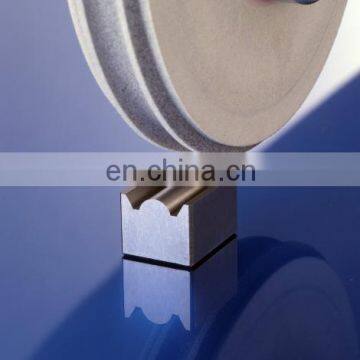

Roller forming sanding

Alloy blade

Base part: Abandoning the base structure of the traditional grinding machine, adopting a rigid and stable truss structure, achieving higher processing requirements and a more beautiful overall shape. And the base is designed with 90mm high three support surfaces to improve the handling effect of the machine.

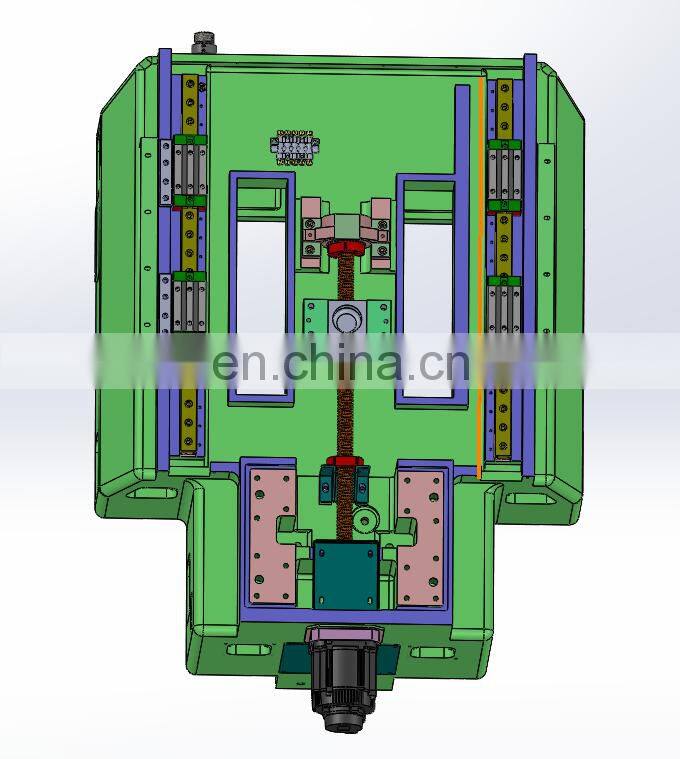

Linear guide section : roller linear guides on the front and rear Y-axis for better machine stability.
Screw drive section :Screw and servo motor use direct drive to improve transmission error and repeat
positioning accuracy at ±0.002mm.

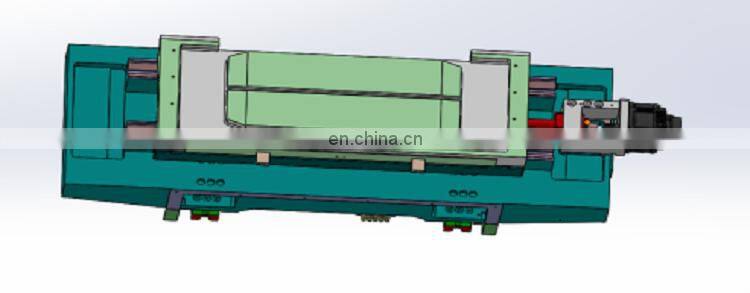

Left and right X-axis features

Saddle rail section :The guide rail adopts a double V-shaped structure with high stability and low vibration, and the reinforcement structure with larger density and width at the bottom to ensure stability during motion.

Hydraulic transmission part :The left and right X-axis adopts proportional hydraulic transmission to ensure work efficiency and can be positioned for sand repair.
Screw drive section: The left and right X-axis screw and servo motor are directly connected to ensure the positioning accuracy and can be combined with sand cleaning.

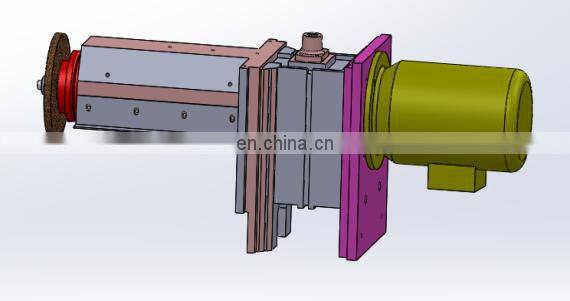

Horizontal grinder spindle

The main shaft of the main shaft is adopted and the flange end is made of 1:5 shaft so that it can be effectively combined with the grinding wheel of the small grinding machine.

Our Company

Company Profile

Established in January 2017, the registered capital is 10 million yuan. Its predecessor was Kunshan Risedian Precision Machinery Co., Ltd. Established a core parts R&D center in Taiwan, Kunshan Operation Center, and a standard manufacturing plant in Maanshan, Anhui. At present, the production base is in Maanshan, with a plant area of 12,000 square meters and a staff of 104.

Main business

The company is mainly engaged in the production, manufacture and sales of five major categories of manual grinding machines, centerless grinding machines, CNC grinding machines, high-speed washing machines and high-speed machining centers. The products are widely used in aerospace, automotive electronics, new energy and environmental protection. Equipment, military and other fields

Production capacity

After the project is put into production, the designed production capacity is 1000 grinding machines, 1000 CNC engraving and milling machines, and 5000 sets of sheet metal equipment processing capacity mainly cover East China .North China South China and overseas emerging markets. Currently serving more than 6,000 companies

Our company has six large gantry machining centers and two imported horizontal boring and milling centers. Large-scale laser laser cutting machine 1, CNC bending machine, plate gold spray water lines. With an annual output of more than 1000 grinders, CNC milling machine more than 1,000 units of the scale, sheet metal processing 5000 sets of assembly processing capacity. Plant area of 12,000 square meters 30 years of grinding industry experience, to provide you with one-stop grinding solutions!
We mainly produce precision surface grinding machines, centelless grinding machines, machining centers, and engaving and milling machine.

Customer Photo

CUSTOMER VISIT

Customers come to our processing base to know products and negotiate with us.

SALES NETWORK

Our company has more than 50 distributor in China, covering 13 provinces,the foreign business covers the whole world.It involves 16 countries and regions,including Southeast Asia market,European and American markets.

Our Service

Pre-Sales Service

For the love of God we promise customers as follow:
Our product quality warranty is one year, except for man-made damage,and consumables such as grinding wheel and wire rope except also.

After-Sales Service

We also have technical support and online service, If you have any problems with the use or technical problems above, we have a dedicated engineer to solve the problem or give professional advice in 24hours.

Packing & Delivery

PACKAGING
Size	230018002000mm
Weight	1600KG
Packaging Details	Standard package,wooden case. We are located in Kunshan city, close to Shanghai port, it is very convenient to transport.

FAQ

Q: Why choose Kuroda?

A: 1. In the field of grinding, CNC grinding is a leading position in China. In the field of forming grinding, we have been adhering to the past 29 years and serving more than 5,400 customers.

2.Products from the development, design, manufacture, assembly of the entire production process are carried out between plants, with a complete production chain. Is your most reliable guarantee.

Q: Does the standard accessories are included in the price?

A: Yes, all of our prices include standard accessories and also taxes include.

Q: How does the product guarantee machining accuracy?

A: The concept of traditional scratching technology We have always insisted on the traditional processing technology, we do not pursue the quantity, strictly grasp the quality. Every machine is carefully designed. Today we spend an hour and the machine can serve you for more than a year.

If you have another question, pls feel free to contact us as below:

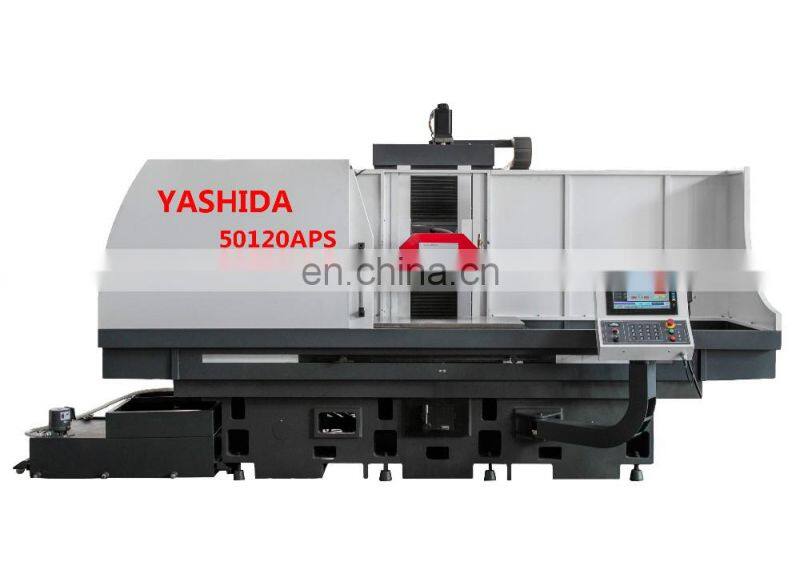

YASHIDA50120APS grinder
