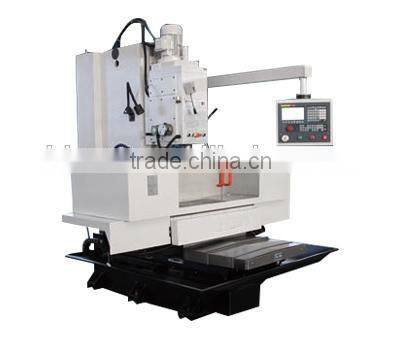

ZK5140 CNC Vertical Drilling machine
Main parameters |
unit |
ZK5140 |
Maximum hole diameter |
mm |
40 |
Spindle maximum torque |
Nm |
200 |
Maximum feed resistance |
N |
12000 |
Motor power |
KW |
3 |
Spindle travel (Z-axis) |
mm |
250 |
Distance from Spindle center to column slide way |
mm |
335 |
Spindle speed |
R/min |
45-2000 |
Bench size |
mm |
850×400 |
T slot |
mm |
18×3 |
Cutting feed rate(Z) |
Mm/min |
600 |
X-axis travel |
mm |
700 |
Z-axis travel |
mm |
400 |
Fast moving speed(XYZ) |
M/min |
15/15/3 |
Distance from Spindle center to table |
mm |
100-690 |
Positioning accuracy(X-Y) |
|
0.025 |
Repeat positioning accuracy(X-Y) |
mm |
0.015 |
Dimensions(L*W*H) |
mm |
2280×2150×2360 |
Machine tool net weight |
kg |
2600 |
ZK5140 CNC Vertical Drilling machine
ZK5140 CNC Vertical Drilling machine
ZK5140 CNC Vertical Drilling machine
Services you enjoy: |
|
Our company strictly observe relevant national regulations about Product-Quality Law with technical standard and contract requirements to track , monitor and test to ensure product quality |
|
On the basis of sector standard , the products’ warranty period is within one year from the date of delivery and acceptance |
|
We will set up files for every piece of sold-product and simultaneously appoint engineers to the guidance of installation and debugging process , and carry out the technical traning course for operators according to the specific case |
ZK5140 CNC Vertical Drilling machine
FAQ |
MOQ |
One set of slant bed cnc lathe |
Delivery Time |
Delivery time will be confirmed by different machines with different configurations |
|
Warranty Period |
12 months since the B/L date |
|
Payment terms |
Prefer to do 100% L/C at sight or 100% T/T (30% advance payment and 70% balance payment before shipping ) |
