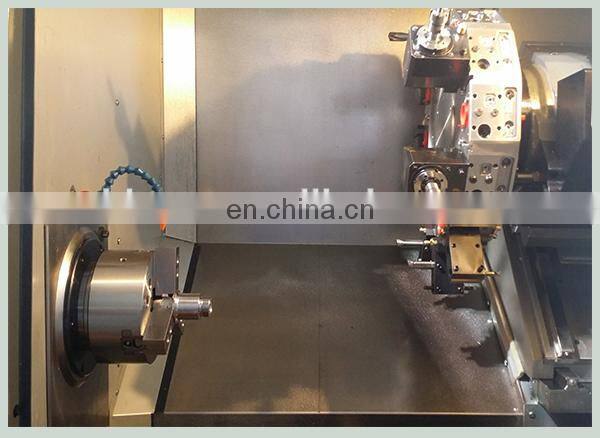

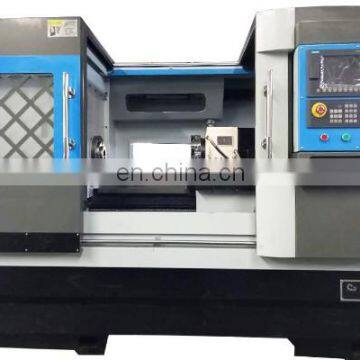

CK6136A cnc fabrication , mini lathe cnc heavy duty machines
Mini lathe Machine Use
It can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
CNC Lathe Features
Four position electric turret
Frequency conversion stepless speed regulation
Standard configuration: manual chuck
Optional configuration: spring collet, hydraulic chuck, automatic feeding device, gang type tools
Main technical parameter
ITEM | Parameter | Unit | CKNC6136 | CK6136A | CK6140 | CKNC6150 | CKNC6150A |
Processing Range | Max.swing over bed | mm | 360 | 360 | 400 | 500 | 500 |
Max.swing over slide | mm | 200 | 200 | 230 | 300 | 300 | |
Max. processing length | mm | 750/1000 | 500 | 750/1000 | 1000 | 1000 | |
Feed | Guideway Width of bed | mm | 280 | 350 | 350 | 390 | 390 |
X axis travel | mm | 210 | 210 | 220 | 260 | 250+10 | |
Z axis travel | mm | 750 | 750 | 750 | 750,1000,1500,2000 | ||
X/Z positioning precision | mm | 0.02/0.03 | 0.015/0.02 | 0.02/0.03 | 0.02/0.03 | 0.02/0.03 | |
X/Z repositioning precision | mm | 0.012/0.016 | 0.01/0.015 | 0.012/0.016 | 0.012/0.016 | 0.012/0.016 | |
Processing precision |
| IT6-IT7 | |||||
ellipticity |
| 0.01 | |||||
Surface roughness |
| Ra≤1.6 | |||||
Spindle speed range |
| Two steps, 80-400-2000 | 50-3000 | 50-3000 | 30-150, 100-500, 320-1600 | 60-200,200-650,650-1600 | |
Spindle | Spindle head type |
| ISO A2-6/D6 | A2-6 | A2-6 | ISO A2-8/D8 | c-5, c-8,D-8 |
Dia. Of spindle thru- hole | mm | 52 | 56 | 66 | 82 | 82, 105 | |
Spindle hole tapper | mm | MT6 | MT6 | MT6 | 90mm 1:20 | 105mm, 1:20 | |
chunk | mm | 200(8”) | 200(8”) | 200(8”) | 250 | 250 | |
Spindle Motor power | kw | 3.7/5.5 | 5.5 | 5.5 | 7.5(three steps frequency) | 7.5(three steps frequency) | |
Tool Holder | Tool holder type |
| Vertical 4 stations | ||||
controller | controller |
| KND(standard), FANUC, GSK,SIEMENS(optional) | ||||
Dimesion | N.W | kg | 1700 |
| 2100 | 2500/2700 | 3100 |
Dimension | m | 2.1*1.1*1.7 2.3*1.5*1.8 |
| 2.7*1.7*1.7 | 2.8*1.2*1.7(1m) 3*1.7*1.8(1m) | 2.8*1.2*1.7 | |

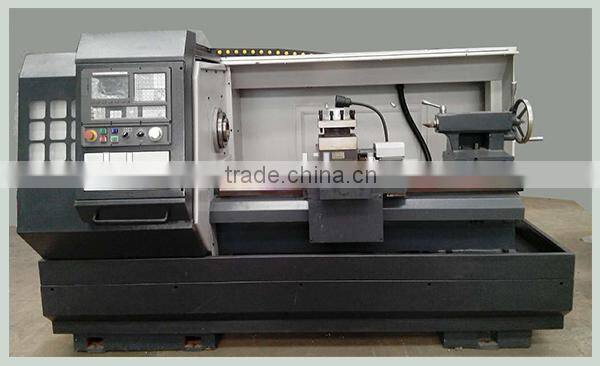

CK6136A cnc fabrication , mini lathe cnc heavy duty machines

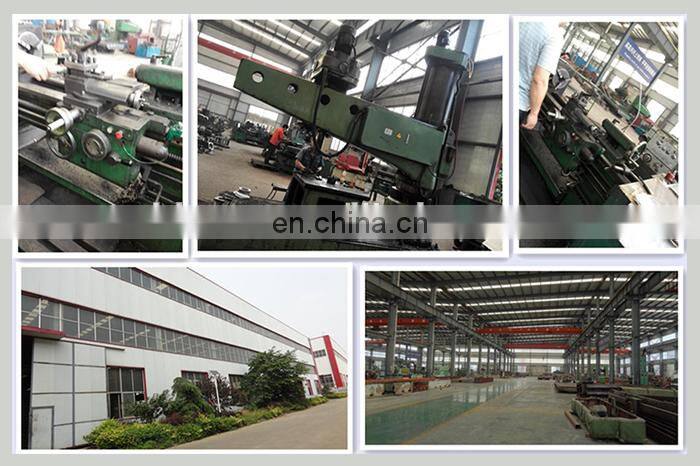

1. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.
2. The main products are horizontal / vertical/ gantry machining center, boring and milling machine, slant bed CNC tuning lathe, CNC vertical turning lathe, Drilling and tapper center etc.
3. We have passed the ISO9001:2008 international quality management system authentication.
1. MOQ
1 set
2. Delivery Time
Some of the products are in stock and others need about 2 month or more .
3. Warranty
13 month after the B/L date.
4. Training and maintenance
After the contact signed, you can send someone to our company for professional operation traning.
Why choose us?
1. faithful: Honest is the key to communication.
2. High quality : 20 years rich experienced assembly skills,
Main parts imported from Japan, Germany, Taiwan etc.
3. Service: Customer first
4. Timely : Reply your inquiry within 8 hours
Delivery machines within agreement time.
5. Price: win-win price.
