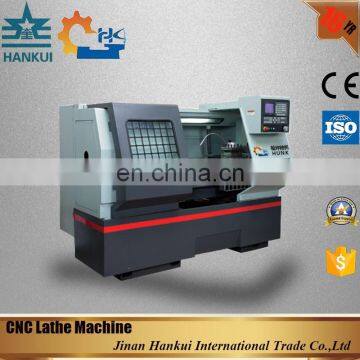

Second hand operated metal machining CNC lathe for sale
This product uses 30 degrees or 45 degrees of inclined type layout with one-piece hollow tubular bed, which greatly improves the flexural rigidity and torsional stiffness of machine when working. At the same time after two aging treatment, it has improved the stability, high rigidity and stability of the machine, which ensure high accuracy of the whole machine. The X and Z axis control the half close loop CNC lathe by direct-connected servo.
It can complete the processing of vehicles, groove, inner (outer) hole, spherical, R cone angle, curved shape, cone shape, face shape, male thread single head, thread single head and multiple thread processing. It is applicable for multi and mass production, and can meet the processing demands for complex and high precision parts.

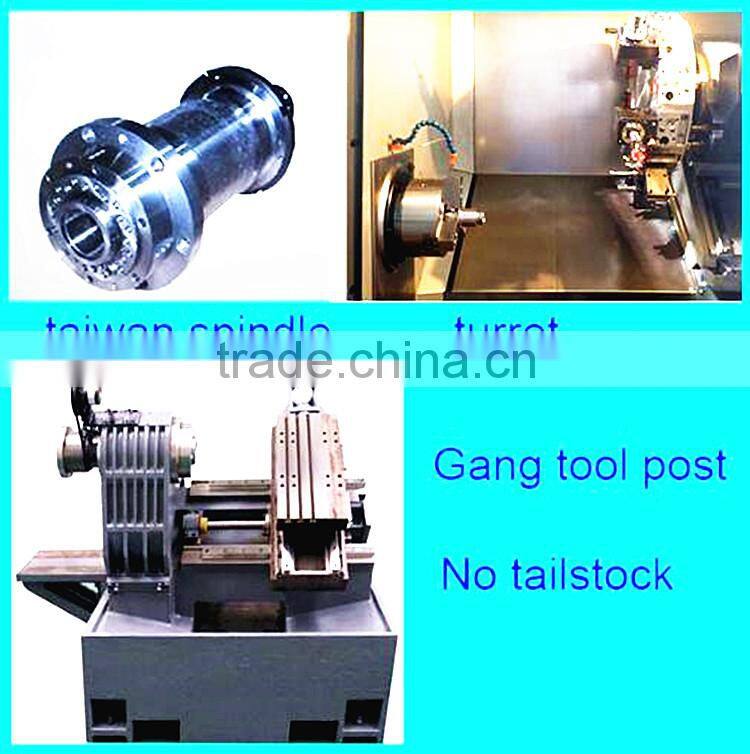

CNC lathe details
The main technical parameters:
ITEM | Parameter | unit | CKNC6180 | CKNC61100 | CKNC61125 | |
Processing Range | Max.swing over bed | mm | 800 | 1000 | 1250 | |
Max.swing over slide | mm | 480 | 660 | 880 | ||
Max. processing length | mm | 1500 | 1500/3000/6000 | |||
Feed | Guideway Width of bed | mm | 550 | 660 | 660 | |
X axis travel | mm |
|
|
| ||
Z axis travel | mm | 1500,2000,3000 | 1500,2000,3000 | 150,2000,3000 | ||
X/Z axis lead screw | m/min | 4/7 | 4/5 | 4/5 | ||
X/Z axis rapid speed | mm | 0.025/0.03 | 0.025/0.03 | 0.025/0.03 | ||
X/Z positioning precision | mm | 0.01/0.015 | 0.01/0.015 | 0.01/0.015 | ||
X/Z repositioning precision |
| IT6-IT7 | IT6-IT7 | IT6-IT7 | ||
Processing precision |
| 0.01 | 0.01 | 0.01 | ||
Surface roughness |
| Ra1.6 | Ra1.6 | Ra1.6 | ||
Spindle | Spindle speed range |
| Three steps frequency, 40~130,110~350,300~950 | Three steps frequency, 15-500 | Three steps frequency, 15-500 | |
Spindle head type |
| C11 | C11 | C11 | ||
Dia. Of spindle thru- hole | mm | 105 | 130 | 130 | ||
Spindle hole tapper | mm | 1:20 (metric system) 120 | (metric system) 140 1:20 | (metric system) 140 1:20 | ||
chunk | mm | 400(16”) | 500(20”) | 500(20”) | ||
Spindle Motor power | kw | 11 | 15 | 15 | ||
Tool Holder | Tool holder type |
| Electric 4 stations | Electric 4 stations | Electric 4 stations | |
Turning tool size | mm | 30*30 | 35*35 | 35*35 | ||
Tailstock | Tailstock sleeve travel | mm | 250 | 250 | 250 | |
Tailstock sleeve dia. | mm | 100 | 100 | 100 | ||
Tailstock sleeve taper | mm | Morse5 | Morse6 | Morse6 | ||
| controller |
| KND(standard), FANUC, GSK,SIEMENS(optional) | |||
Dimesion | Dimesions | kg | 3900 | 6000 8500 13500 | ||
N.W | m | 3.7*1.5*1.6 | 4750(550)*1920*1800 | |||
We can transport the goods according to the customer's specific requirements. The port is qingdao.

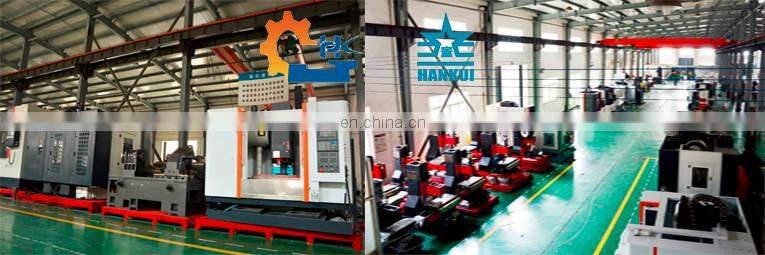

We are a company which manufacture the CNC lathe and machining center for several decades, we can maufacture different kind of lathe according to the customer's specific requirements. Without any doubt, all of our items are with excellent quality and reasonable price, hope we can help you
Hankui is your best friends forever!
