Product Details
| Brand Name | HANKUI | Place of Origin | Shandong, China | |
| Model Number | CKNC6180 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
CNC Machinery Metal Equipment
Advantages of our lathe machine:
High quality casting lathe bed
Advanced confirgurations including the NSK bearing,Hiwin screw,Servo motor and so on
Professional engineer support and perfect service
Technical parameter
| Specification | CKNC6180 |
| Max.swing over bed | 800 mm |
| Max.swing over slide | 480 mm |
| cessing length | 1500 mm |
| Guideway width of bed | 550 mm |
| X axis travel | 400 mm |
| Z axis travel | 1500 mm |
| X/Z axis lead screw | 4 / 7 m/min |
| X/Z axis rapid speed | 0.025 / 0.03 mm |
| X/Z axis positioning precision | 0.01 / 0.015 mm |
| X/Z axis re-positioning precision | IT6 - IT7 |
| Processing precision | 0.01 |
| Surface roughness | Ra 1.6 |
| Spindle Speed range | Three steps frequency 40 -950 |
| Spindle head type | C11 |
| Dia.of spindle thru-hole | 105 mm |
| Spindle hole tapper | Metric system: 120 |
| Chuck | 400 mm |
| Spindle motor power | 15 kw |
| Tool holder type | Vertical 4 stations |
| Turning tool size | 30*30 mm |
| Tailstock sleeve travel | 250 mm |
| Tailstock sleeve diameter | 100 mm |
| Tailstock sleeve tapper | Morse5 |
| Machine Weight | 3900 kg |
| Dimension | 3.7*1.5*1.6 m |
| Control system | Siemens (Standard), Fanuc/Mitsubishi/GSK for options |

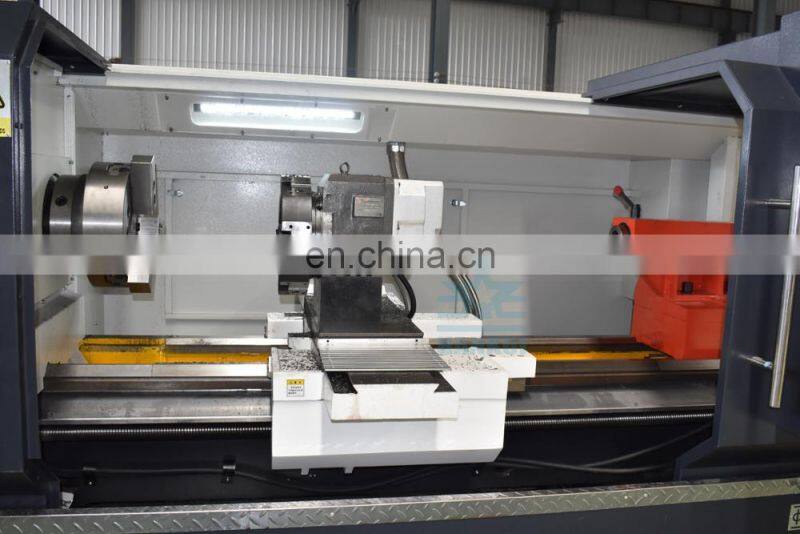

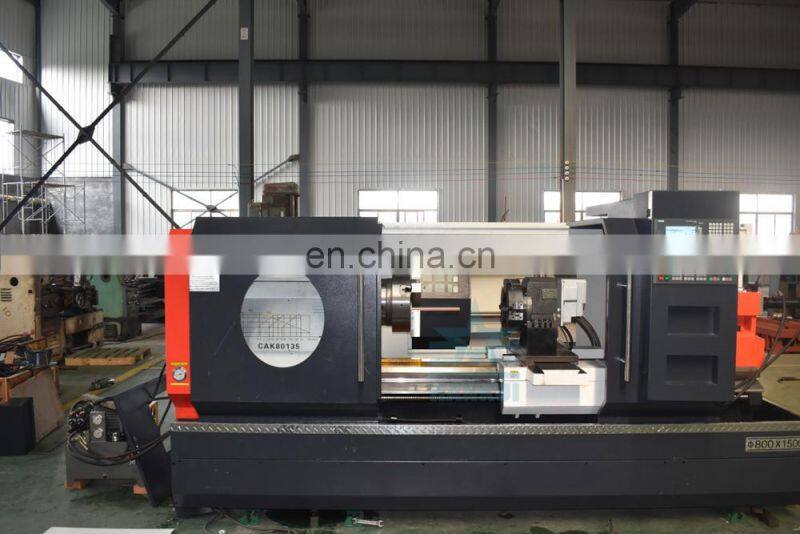

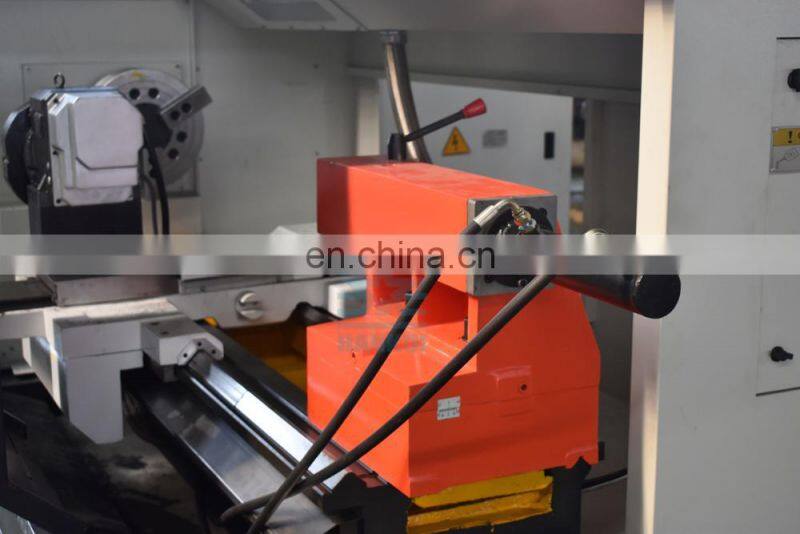

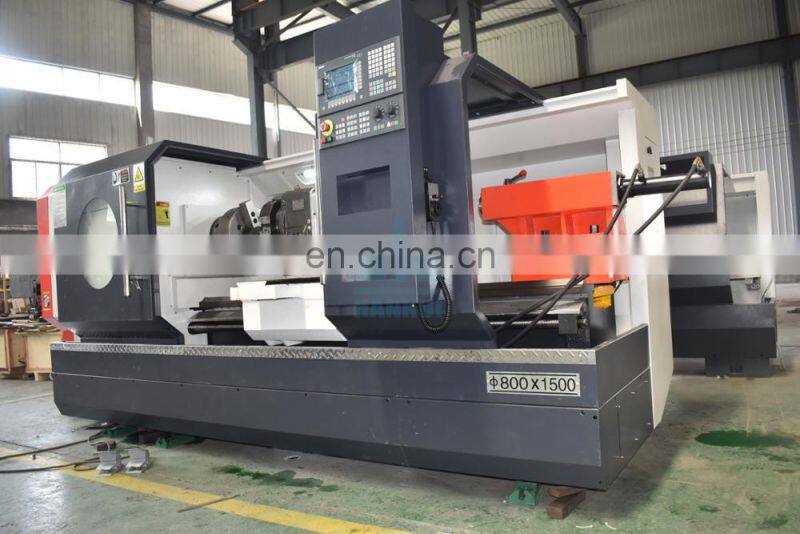

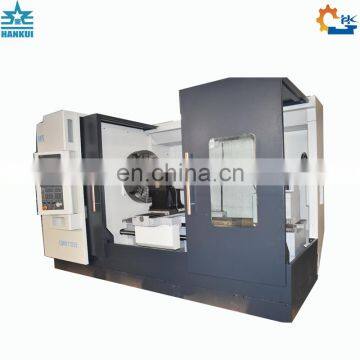

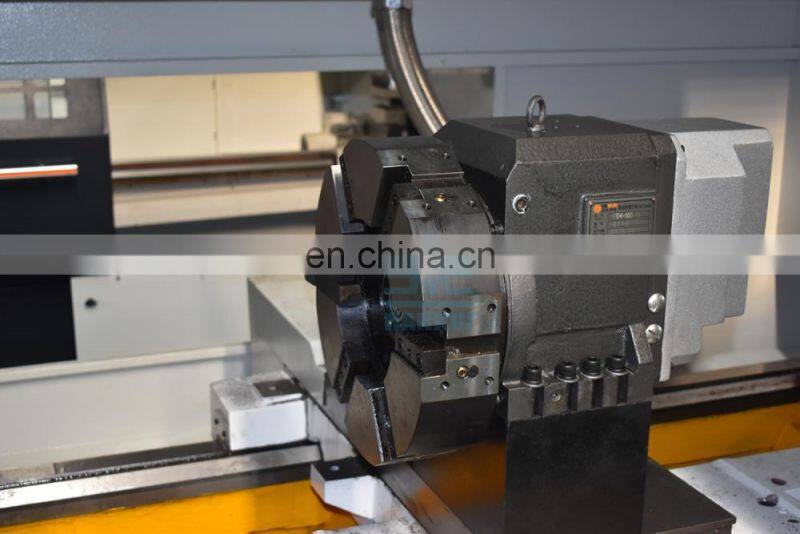

Lathe Machine Showing
RFQ
1. About warranty time
One year for whole set machine
2. About delivery time
a. there are more than 40 sets of machine tool are in stock
b. we have own mechanical production line
c. There is a long-term cooperation with the shipping company, can make the goods more quickly and efficiently so that can delivered safely to the designated place as guest.
3. About package
wooden box
4. About special design
We have a very rich experience and strong machine tool research and development capability to meet your requst.
5. About payment
TRADE ASSURANCE,TT,L/C, OTHERS

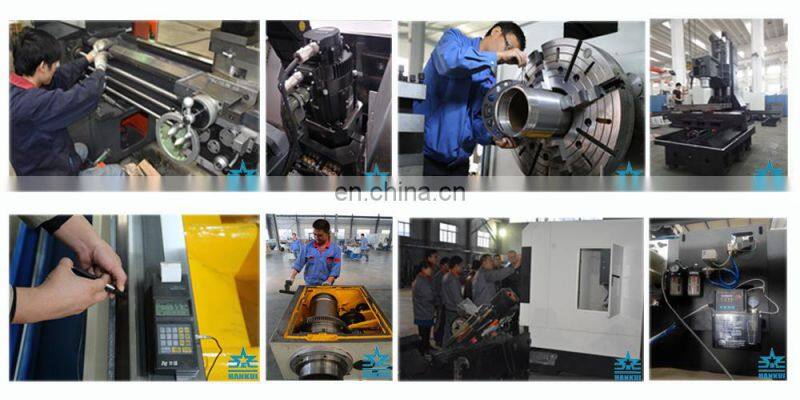

Packaging and Company showing
