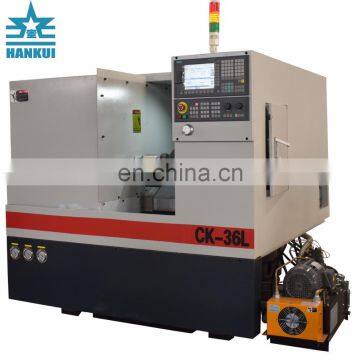

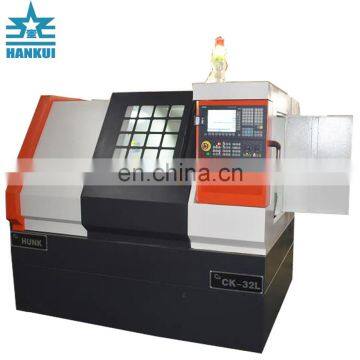

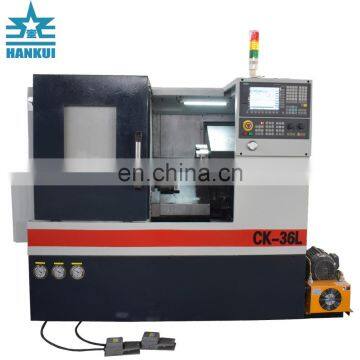

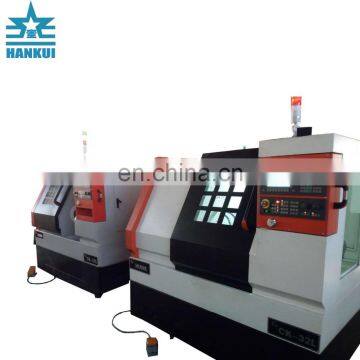

CK32L Benchtop Micro Metal Lathe for Sale

1)The major basic parts such as the lathe bed, lathe feet, the middle supporting plate, the spindle box are all made of HT300 cast iron. The whole lathe bed and the lathe feet are all adopt 45 degrees casting structure as a whole. The compact and reasonable symmetric structure ensures high rigidity and bending vibration performance of basic parts. The guide rail surface of lathe bed adopts superaudio quenching and the penetration depth can reach to 2 mm, which provides the guarantee for the stability of lathe for a long time using.


2)The middle supporting plate together with the whole lathe bed, the middle slip plate and the sliding surface of supporting plate are all adopt the line rail technology of Taiwan, with fast speed, eliminating intermittent creep, high rigidity, low friction, and low noise characteristics. With automatic pressure lubrication, it improves the machine accuracy.


3)The feed of X, Z direction adopts the inner loop preloading large-lead ballscrew with double nut so it is of high feed speed. The drive motor connect with screw straightly via elastic coupling. The feed servo motor passes power to the high precision ball screw directly . It is no gap, and it ensures the accuracy of positioning and synchronization for the lathe.

4)The spindle box adopts spindle unit which is of independent type and sleeve structure and it is equipped with high intensity special bearing for spindle. In terms of lubrication, it adopts the Germany special lubricating oil of bearing, which greatly reduces the thermal deformation of spindle unit and improves the thermal stability and accuracy. The torque in the process of chipping is greatly increased too. It uses spindle unit which is high speed, high precision, and high rigidity. The bearing capacity of axial and radial is very strong, the top speed can reach to 6000 RPM (optional A2-5), and the standard is 4000 RPM .

5)The two guide rail of X, Z direction and screw are all adopt protective device, which ensures the cleanness of lead screw and guide rail. It also ensures the accuracy of drive and motion and machine service life;

6)The outer protective device of the whole lathe is of the full protective structure. It is easy to operate, safe and reliable, beautiful and generous.

7)It uses a reliable device which is automatic and centralized to lubricate. It can lubricate automatically and intermittently to all lubrication points of CNC lathe. And it can settle lubricating time according to operating conditions.

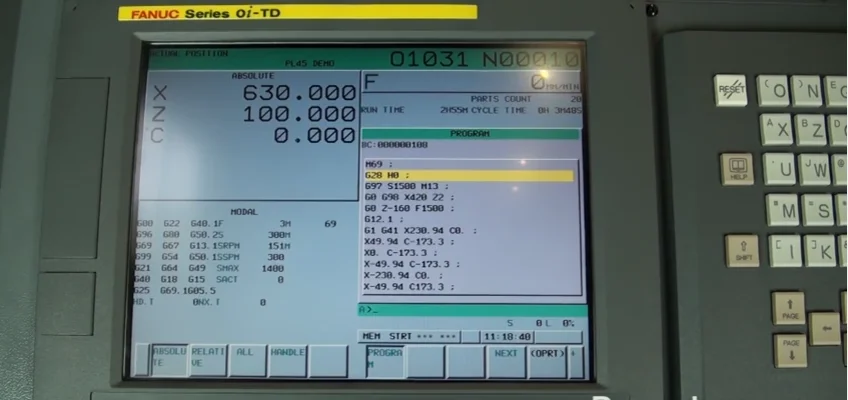

8)The operating system of the lathe adopts the principle of human body engineering so the operation is very convenient.

  Jinan Hankui international trade co., ltd, which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.

  The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc. With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.

Now our products have a large market share and have a high popularity in domestic. Sales and services network have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.

We have passed the ISO9001:2008 international quality management system authentication. “Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.
