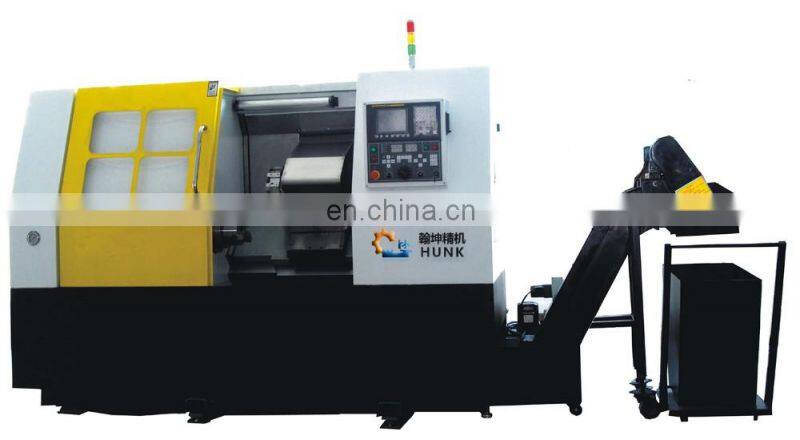

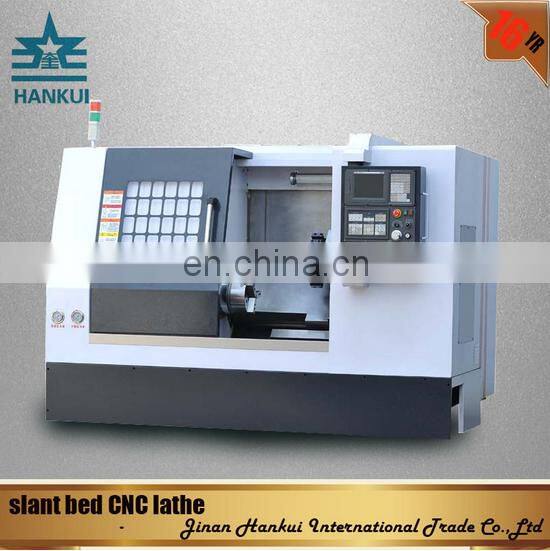

CK36 Automatic Chip Conveyor Horizontal CNC Drilling Machine

CK36 Automatic Chip Conveyor Horizontal CNC Drilling Machine thumbnail-1
CK36 Automatic Chip Conveyor Horizontal CNC Drilling Machine thumbnail-2
CK36 Automatic Chip Conveyor Horizontal CNC Drilling Machine thumbnail-3
CK36 Automatic Chip Conveyor Horizontal CNC Drilling Machine thumbnail-4
CK36 Automatic Chip Conveyor Horizontal CNC Drilling Machine thumbnail-5
CK36 Automatic Chip Conveyor Horizontal CNC Drilling Machine thumbnail-6
CK36 Automatic Chip Conveyor Horizontal CNC Drilling Machine photo-1
CK36 Automatic Chip Conveyor Horizontal CNC Drilling Machine photo-2
CK36 Automatic Chip Conveyor Horizontal CNC Drilling Machine photo-3
CK36 Automatic Chip Conveyor Horizontal CNC Drilling Machine photo-4
CK36 Automatic Chip Conveyor Horizontal CNC Drilling Machine photo-5
CK36 Automatic Chip Conveyor Horizontal CNC Drilling Machine photo-6
US$ 10,800 - 10,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hankui
Place of Origin:
Shandong, China
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Machining Center
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hankui
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Product Description

1.Sleeve type spindle

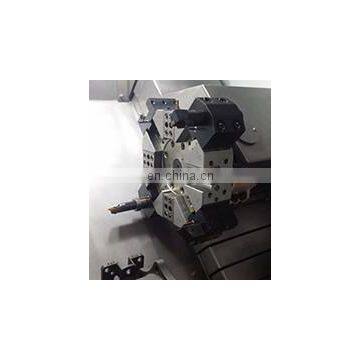

2. 8-station hydraullic turret

3. Taiwan linear guideway

4. Automatic lubrication

5.Hydraulic tailstock

6.Full enclosed cover

7. Hollow hydraulic chuck

8. Three color warning light

Technical parameter
ITEM
CK-32L
CK-36L
CK-40L
CK-50L
CK-63L
CK-80L
Processing range
Max.swing over bed
320
360
400
500
630
800
Max.swing over slide
160
160
220
320
500
640
Max. processing length
350
350
450
550
890
890
Max. cutting dia.(disc type)
200
254
360
420
630
800
Max. bar dia.
40
45
51
65
75
90
spindle
Spindle speed
4000
4000
3500
2500
2250
1500
Spindle nose ISO form
A2-5
A2-5
A2-6
A2-6
A2-8
A2-11
Thru-hole dia.
56
56
66
76
86
112
Chunk dia.
160（6“）
160（6“）
200（8“）
200（8“）
320（12“）
380（15“）
Motor power
3.7(servo)
3.7(servo)
7.5(servo)
11(servo)
18.5(servo)
22(servo)
Body structure
Body structure
30°integrated
30°integrated
45°integrated
45°integrated
30°integrated
30°integrated
X axis travel
200
200
210
260
410
410
Zaxis travel
350
350
450
550
860
860
X/Z axis rapid speed
24/24
24/24
24/24
18/18
18/18
Tool holder
type
63-8T
80-8T
100-8T
160-8T
160-8T
Tool size
20*20
20*20
20*20
25*25
25*25
25*25
tailstock
Tailstock sleeve dia.
52
52
75
150
150
Tailstock sleeve travel
60
60
100
150
150
Tailstock sleeve taper
MT4
MT4
MT5
MT5
MT5
precision
Processing precision
IT6
Repositioning precision
X:0.006,Z:0.008
X:0.006，Z:0.01
roughness
Ra.≤0.8
Ra.≤1.25
dimension
N.W (KG)
1500
1700
2700
3500
5500
5600
Dimension (M)
1.8*1.2*1.7
1.8*1.6*1.6
2.6*1.8*1.6
3.1*1.8*1.8
3.8*2.2*2.2

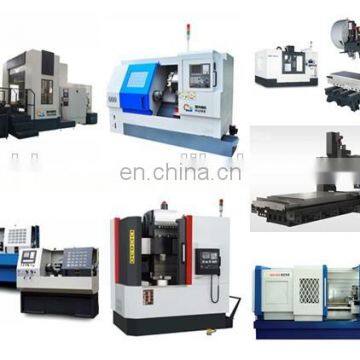

Products Show
Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Packing & Delivery

Packing Details  :Wooden box or as request

Delivery Details : 7-35 days after order




Our Certifications
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 7-35 days.

Q: What is your terms of payment ?

 30% T/T in advance ,balance before shippment.


 Q: Do you have a warranty on your machines?

 One year warranty excluding electrical components.
