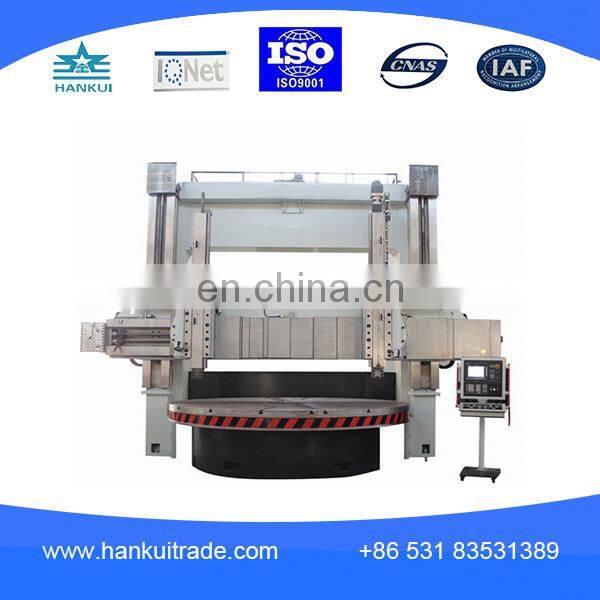

Help CenterCK518 Fanuc Multi-function Disk Brake Vertical Turret Lathe
Related Products
-
CK50L Mini Metal Lathe Machine PriceUS$ 1,099 - 1,099MOQ: 1 Set -
CNC Hydraulic Seals Mill Machine With Spindle MotorUS$ 18,900 - 27,500MOQ: 1 Set
-
Universal Lathe Small Cnc Machine SpecificationUS$ 18,900 - 27,500MOQ: 1 Set
-
4 Jaw CNC Metal Lathe Stailstock Chuck From Chinese SupplierUS$ 18,900 - 27,500MOQ: 1 Set
-
Mini Machine Used CNC LatheUS$ 18,900 - 27,500MOQ: 1 Set
Export Products
1.X, Z axis adopting high precision, high rigidity inner loop double nut large prepress lead ball
screws, feeding fast. Driving motor connected directly with bar screw by flexible coupling, the
feeding servo motor transmitted the powerto high precision bar screw, without gap, which
makes the positioning precision and synchronization.
2.The spindle head adopts the independent spindle, commission fast, increased torque in the
turning process, it adopts the high and big loading capacity speed spindle.
3.Guide ways and bar screw are all with protection, which makes the bar screw and guide ways
cleaning, and makesure the accuracy and service life of the machine.
4.Adopting reliable centralized automatic lubricating system, it can adjust the lubricating time
according to the work time automatically, to protect the machine and improve the machine life
and the precision.
5.The operation system adopts human engineering theory, so it’s very convenient to run.
Product-related Data
| Model/specification | unit | CK516 | CK518 |
| Max. rotating diameter | Mm | 630 | 940 |
| Worktable diameter | Mm | 630 | 850 |
| Steps of spindle speed | 60.100.200 | 15,32,64,96,144,196 | |
| Cutting feedrate | Mm/min | 0.1-1000 | 0.1-1000 |
| Tool post vertical shift distance | Mm | 500 | 650 |
| Tool post horizontal shift distance | Mm | 550 | 640 |
| Rapid movement speed in longitudinal direction | Mm/min | 4000 | 3000 |
| Rapid movement speed in transverse direction | Mm/min | 5000 | 4000 |
| Tool post form | line cutter | line cutter | |
| Section of tool shank | Mm | 25*25 | 30*30 |
| Repositioning accuracy | Mm | 0.005 | 0.005 |
| Positioning accuracy | Mm | x/z0.15/0.02 | x/z0.15/0.02 |
| Motor power | Kw | 7.5/11 | 15 |
| Dimensions | mm | 1880*1310*2670 | 2240*2000*3000 |
Transport Information
Packaging Information
Packaging Detail: High quality wooden case.
Delivery Detail:Within 35 working days after receiving your deposit.
According to the customer's requirements.
If you need to know more about our products,please contact with us!
Factory Information
Our company is specializing in the production of CNC for 2 decades, and we have passed the
ISO9000 certification and the right of import and export. Our company has owned 10 patent
technologies at present, including the appearance, design, the utility model of machine and so
on. And our company is a provincial high-tech enterprises.
Without any doubt, all of our items are with excellent quality and reasonable price, we can
product different kinds of machines according to your specific requirements, we hope that we
can help you, and enter business with you!
