CKNC6136 High Quality Mini CNC Lathe Price List

FOB Price

US$ 7,900 - 13,900 / Set

1 Set(Min. Order)

Port Qingdao Port for CKNC6136 High Quality Mini CNC Lathe Price List
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HANKUI	Place of Origin	Shandong, China
Model Number	CKNC6136	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

Product Description

(1) The major basic parts such as the lathe bed, lathe feet, the middle supporting plate, the spindle box are all made of HT250 cast iron. The lathe feet are the structure of box type.

(2) The middle supporting plate together with the whole lathe bed, the middle slip plate and the sliding surface of supporting plate are all adopt the line rail technology of Taiwan, with the characteristics of fast speed, intermittent creep elimination, high rigidity, low friction, and low noise.

(3) The feed of X, Z direction adopts the inner loop preloading large-lead ball screw with double nut so it is of high feed speed. The drive motor connect with screw straightly via elastic coupling.

(4) Spindle box is designed of high gear position and low speed rotation, which greatly increased the torque in the process of chipping. It uses spindle unit which is high speed, high precision, and high rigidity.

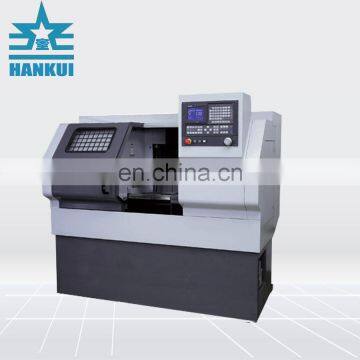

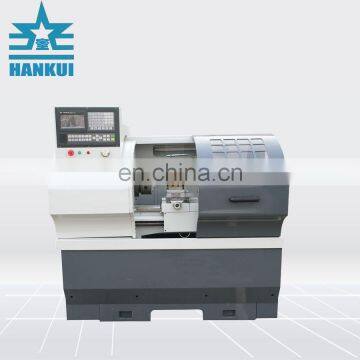

Detailed Images

Technical parameter

Item	CKNC6136	CKNC6136A	CKNC6140	CKNC6150
Max .swing over bed	360mm	360mm	400mm	500mm
Max.swing over slide	200mm	200mm	230mm	300mm
cessing length	750/1000mm	500/750mm	750/1000mm	1000mm
Guideway width of bed	280mm	350mm	350mm	390mm
X axis travel	210mm	210mm	220mm	250+10mm
Z axis travel	750mm	500/750mm	750/1000mm	750/1000/1500/2000
X/Z axis lead screw	2505/3206	2505/3206	250/3206	2505/4010
X/Z axis rapid speed	6/8m/min	6/8m/min	6/8m/min	6/8m/min
X/Z positioning precision	0.02/0.03mm
X/Z repositioning precision	0.012/0.016
processing precision	IT6-IT7
Ellipticity	0.01
Surface roughness	Ra<=1.6
Spindle speed range	Two steps, 80-400-2000	50-3500	50-3500	60-200,200-650, 650-1600
Spindle head type	ISOA2-6/D6	A2-6	A2-6	C-5,C-8,D-8
Dia.of spindle thru-hole	52mm	56mm	66mm	82(105)mm
Spindle hole tapper	MT6			105mm,1:20
Chunk	200(8")			250
Spindle motor power	5.5KW			7.5kw(three steps frequency)
Tool holder type	Vertical 4 stations (Horizontal 6 stations)
Turning tool size	25.*25mm
Tailstock sleeve travel	100mm	120mm	120mm	150mm
Tailstock sleeve dia.	52mm	60mm	60mm	75mm
Tailstock sleeve taper	MT4			MT5
Controller	SIEMENS(standard),Fanuc,KND,GSK(optional)
N.W	1700/2000kg	2100/2300kg	2200/2500kg	2600kg
Dimension	2.11.11.7m 2.351.11.7m	1.91.11.7m 2.11.11.7m	2.51.71.7m 2.71.71.7m	2.61.21.7m 2.81.21.7m

Our Company

Our Certificates

Packing & Delivery

Our most professional packaging

Transport of large trucks to the seaport

And international transport cooperation

FAQ

Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.

Q: What sales terms do you have?
A:T/T, L/C,West Union.

Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,

Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD

Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
