Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller

Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller thumbnail-1
Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller thumbnail-2
Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller thumbnail-3
Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller thumbnail-4
Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller thumbnail-5
Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller thumbnail-6
Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller thumbnail-7
Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller photo-1
Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller photo-2

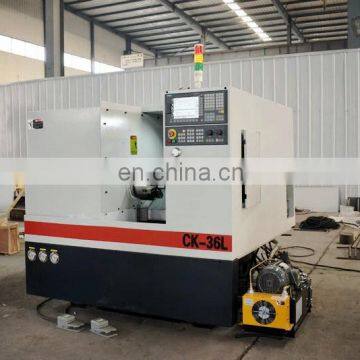

Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller photo-3
Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller photo-4
Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller photo-5

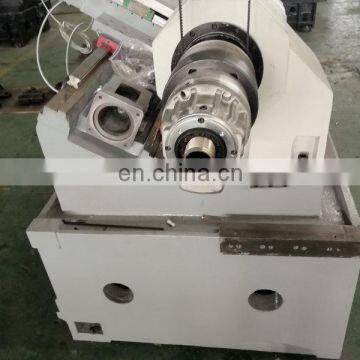

Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller photo-6

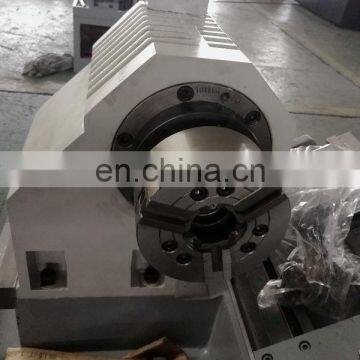

Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller photo-7
US$ 20,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hankui/Hunk/OEM
Place of Origin:
Shandong, China
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Machining Center
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hankui/Hunk/OEM
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Video
Slant Bed CNC Lathe Machine CK36L CK40L With KND Controller
Products Details

Main features

1) Cast iron integral lathe bed, strong rigidity and good stability

2) Independent spindle, variable frequency stepless speed regulation, low noise and vibration, high machining accuracy, energy saving and environmental protection

3)  Spindle with high speed, high precision bearings, processing surface smoothness

4)  X/Z axis use high-speed liner guide rail

Technical parameter
ITEM
CK-32L
CK-36L
CK-40L
CK-50L
CK-63L
CK-80L
Processing range
Max.swing over bed
320
360
400
500
630
800
Max.swing over slide
160
160
220
320
500
640
Max. processing length
350
350
450
550
890
890
Max. cutting dia.(disc type)
200
254
360
420
630
800
Max. bar dia.
40
45
51
65
75
90
spindle
Spindle speed
4000
4000
3500
2500
2250
1500
Spindle nose ISO form
A2-5
A2-5
A2-6
A2-6
A2-8
A2-11
Thru-hole dia.
56
56
66
76
86
112
Chunk dia.
160(6")
160(6")
200(8")
200(8")
320(12")
380(15")
Motor power
3.7(servo)
3.7(servo)
7.5(servo)
11(servo)
18.5(servo)
22(servo)
Body structure
Body structure
30°integrated
30°integrated
45°integrated
45°integrated
30°integrated
30°integrated
X axis travel
200
200
210
260
410
410
Zaxis travel
350
350
450
550
860
860
X/Z axis rapid speed
24/24
24/24
24/24
18/18
18/18
Tool holder
type
63-8T
80-8T
100-8T
160-8T
160-8T
Tool size
20*20
20*20
20*20
25*25
25*25
25*25
tailstock
Tailstock sleeve dia.
52
52
75
150
150
Tailstock sleeve travel
60
60
100
150
150
Tailstock sleeve taper
MT4
MT4
MT5
MT5
MT5
precision
Processing precision
IT6
Repositioning precision
X:0.006,Z:0.008
X:0.006,Z:0.01
roughness
Ra.≤0.8
Ra.≤1.25
dimension
N.W (KG)
1500
1700
2700
3500
5500
5600
Dimension (M)
1.8*1.2*1.7
1.8*1.6*1.6
2.6*1.8*1.6
3.1*1.8*1.8
3.8*2.2*2.2
Main Configuration

For more details configuration, pls contact us directly.

Standard Configuration:



1) 5.5kw servo motor, max. spindle speed 4000rpm, spindle taper A2-5, spindle hole Φ56mm;

2) 8 station hydraulic tool turret hollow 8" hydraulic chuck, with tail stock;


Optional Configuration:


1) 8 station servo VDI(live tool) turret;
2) tool head,if more tool heads needed;
3) Servo 8 station tool turret;

4) 6000r spindle;
5) Chain Chip Conveyor;

Main components
The serial number
Name
Model or drawing No.
Origin
QTY
Note
1
The top
Domestic
1 set
2
X screw pair to the ball
2505
Taiwan
1 pair
3
Z screw pair to the ball
3210/P3
Taiwan
1 pair
4
Angular contact ball bearings
NSK
1 set
With screw
5
X, Z line rail
Taiwan
6
Angular contact ball bearings
NSK
2set
With screw
7
Double grinding coupling
domestic
2 set
8
Cooling pump
domestic
1 set
9
Lubrication system
domestic
1 set
Our Company

Jinan Hankui international trade co., ltd,

which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.

With good quality and professional service, our company cooperate with the customers from India, Mexico, USA, Turkey, Norway, Bangladesh, Indonesia, Pakistan,Syria and so on. There is 24 hour online servive and oversea technology support in our company.

We have passed the ISO9001:2008 , SGS, CE international quality management system authentication. "Honest and trust, Customer ahead, pursuit of excellent", we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.

Packing & Delivery

Packing Details  : Packing by woodenbox or depend on request

Delivery Details : 7-45 days
