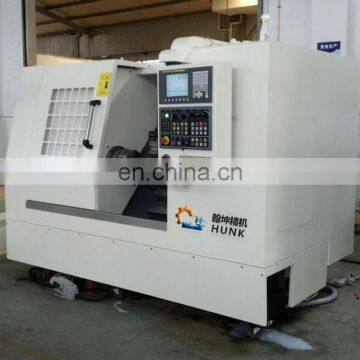

CK36 Mini Slant Bed CNC Lathe Machine for Metal Turn and Mill photo-4
CK36 Mini Slant Bed CNC Lathe Machine for Metal Turn and Mill photo-5

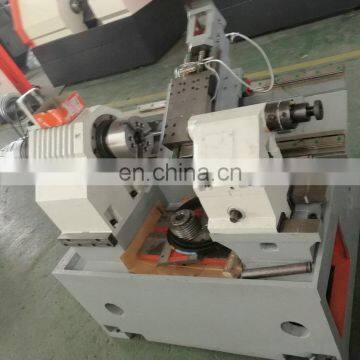

CK36 Mini Slant Bed CNC Lathe Machine for Metal Turn and Mill photo-6

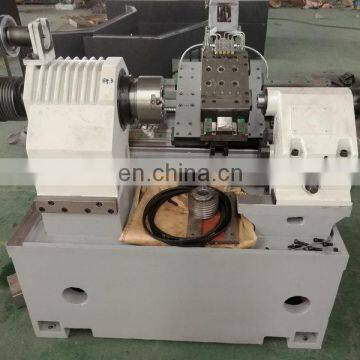

CK36 Mini Slant Bed CNC Lathe Machine for Metal Turn and Mill photo-7
US$ 20,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hankui/Hunk/OEM
Place of Origin:
Shandong, China
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Machining Center
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hankui/Hunk/OEM
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Video
CK36 Mini Slant Bed CNC Lathe Machine for Metal Turn and Mill
Main Configuration

For more details configuration, pls contact us directly.

Technical parameter
ITEM
CK-32L
CK-36L
CK-40L
CK-50L
CK-63L
CK-80L
Processing range
Max.swing over bed
320
360
400
500
630
800
Max.swing over slide
160
160
220
320
500
640
Max. processing length
350
350
450
550
890
890
Max. cutting dia.(disc type)
200
254
360
420
630
800
Max. bar dia.
40
45
51
65
75
90
spindle
Spindle speed
4000
4000
3500
2500
2250
1500
Spindle nose ISO form
A2-5
A2-5
A2-6
A2-6
A2-8
A2-11
Thru-hole dia.
56
56
66
76
86
112
Chunk dia.
160(6")
160(6")
200(8")
200(8")
320(12")
380(15")
Motor power
3.7(servo)
3.7(servo)
7.5(servo)
11(servo)
18.5(servo)
22(servo)
Body structure
Body structure
30°integrated
30°integrated
45°integrated
45°integrated
30°integrated
30°integrated
X axis travel
200
200
210
260
410
410
Zaxis travel
350
350
450
550
860
860
X/Z axis rapid speed
24/24
24/24
24/24
18/18
18/18
Tool holder
type
63-8T
80-8T
100-8T
160-8T
160-8T
Tool size
20*20
20*20
20*20
25*25
25*25
25*25
tailstock
Tailstock sleeve dia.
52
52
75
150
150
Tailstock sleeve travel
60
60
100
150
150
Tailstock sleeve taper
MT4
MT4
MT5
MT5
MT5
precision
Processing precision
IT6
Repositioning precision
X:0.006,Z:0.008
X:0.006,Z:0.01
roughness
Ra.≤0.8
Ra.≤1.25
dimension
N.W (KG)
1500
1700
2700
3500
5500
5600
Dimension (M)
1.8*1.2*1.7
1.8*1.6*1.6
2.6*1.8*1.6
3.1*1.8*1.8
3.8*2.2*2.2
Products Details

1.The major basic parts such as the lathe bed, lathe feet, the middle supporting plate, the spindle box are all made of HT300 cast iron. The whole lathe bed and the lathe feet are all adopt 45 degrees casting structure as a whole. The compact and reasonable symmetric structure ensures high rigidity and bending vibration performance of basic parts. The guide rail surface of lathe bed adopts superaudio quenching and the penetration depth can reach to 2 mm, which provides the guarantee for the stability of lathe for a long time using.

2)The middle supporting plate together with the whole lathe bed, the middle slip plate and the sliding surface of supporting plate are all adopt the line rail technology of Taiwan, with fast speed, eliminating intermittent creep, high rigidity, low friction, and low noise characteristics. With automatic pressure lubrication, it improves the machine accuracy.

3) The feed of X, Z direction adopts the inner loop preloading large-lead ballscrew with double nut so it is of high feed speed. The drive motor connect with screw straightly via elastic coupling. The feed servo motor passes power to the high precision ball screw directly . It is no gap, and it ensures the accuracy of positioning and synchronization for the lathe.

4)The spindle box adopts spindle unit which is of independent type and sleeve structure and it is equipped with high intensity special bearing for spindle. In terms of lubrication, it adopts the Germany special lubricating oil of bearing, which greatly reduces the thermal deformation of spindle unit and improves the thermal stability and accuracy. The torque in the process of chipping is greatly increased too. It uses spindle unit which is high speed, high precision, and high rigidity. The bearing capacity of axial and radial is very strong, the top speed can reach to 6000 RPM (optional A2-5), and the standard is 4000 RPM .

Main components
The serial number
Name
Model or drawing No.
Origin
QTY
Note
1
The top
Domestic
1 set
2
X screw pair to the ball
2505
Taiwan
1 pair
3
Z screw pair to the ball
3210/P3
Taiwan
1 pair
4
Angular contact ball bearings
NSK
1 set
With screw
5
X, Z line rail
Taiwan
6
Angular contact ball bearings
NSK
2set
With screw
7
Double grinding coupling
domestic
2 set
8
Cooling pump
domestic
1 set
9
Lubrication system
domestic
1 set
Our Company

Jinan Hankui international trade co., ltd, which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.

With good quality and professional service, our company cooperate with the customers from India, Mexico, USA, Turkey, Norway, Bangladesh, Indonesia, Pakistan,Syria and so on. There is 24 hour online servive and oversea technology support in our company.

We have passed the ISO9001:2008 , SGS, CE international quality management system authentication. "Honest and trust, Customer ahead, pursuit of excellent", we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.

Packing & Delivery

Packing Details  : Packing by woodenbox or depend on request

Delivery Details : 7-45 days
