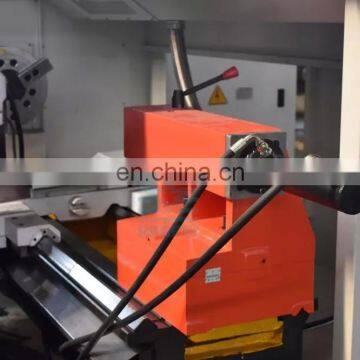

CK6180 German Technology Benchtop Cnc Lathe Machinery for Sale photo-4

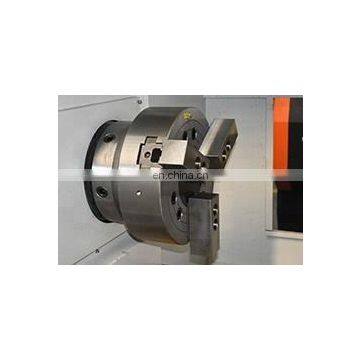

CK6180 German Technology Benchtop Cnc Lathe Machinery for Sale photo-5

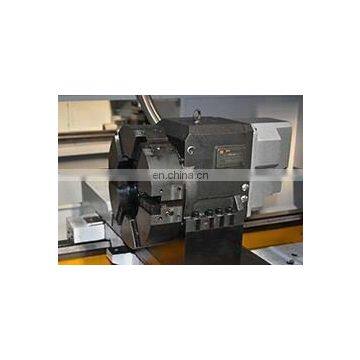

CK6180 German Technology Benchtop Cnc Lathe Machinery for Sale photo-6
CK6180 German Technology Benchtop Cnc Lathe Machinery for Sale photo-7
US$ 23,300 - 23,300 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
Hankui/Hunk/OEM
Place of Origin:
Shandong, China
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Machining Center
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hankui/Hunk/OEM
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Video

CK6180 German Technology Benchtop Cnc Lathe Machinery for Sale

Products Details
Technical parameter
Item
CKNC6136
CKNC6136A
CKNC6140
CKNC6150
Max .swing over bed
360mm
360mm
400mm
500mm
Max.swing over slide
200mm
200mm
230mm
300mm
cessing length
750/1000mm
500/750mm
750/1000mm
1000mm
Guideway width of bed
280mm
350mm
350mm
390mm
X axis travel
210mm
210mm
220mm
250+10mm
Z axis travel
750mm
500/750mm
750/1000mm
750/1000/1500/2000
X/Z axis lead screw
2505/3206
2505/3206
250/3206
2505/4010
X/Z axis rapid speed
6/8m/min
6/8m/min
6/8m/min
6/8m/min
X/Z positioning precision
0.02/0.03mm
X/Z repositioning precision
0.012/0.016
processing precision
IT6-IT7
Ellipticity
0.01
Surface roughness
Ra<=1.6
Spindle speed range

Two steps,

80-400-2000
50-3500
50-3500

60-200,200-650,

650-1600
Spindle head type
ISOA2-6/D6
A2-6
A2-6
C-5,C-8,D-8
Dia.of spindle thru-hole
52mm
56mm
66mm
82(105)mm
Spindle  hole tapper
MT6
105mm,1:20
Chunk
200(8")
250
Spindle motor power
5.5KW
7.5kw(three steps frequency)
Tool holder type
Vertical 4 stations (Horizontal 6 stations)
Turning tool size
25.*25mm
Tailstock sleeve travel
100mm
120mm
120mm
150mm
Tailstock sleeve dia.
52mm
60mm
60mm
75mm
Tailstock sleeve taper
MT4
MT5
Controller
SIEMENS(standard),Fanuc,KND,GSK(optional)
N.W
1700/2000kg
2100/2300kg
2200/2500kg
2600kg
Dimension

2.1*1.1*1.7m

2.35*1.1*1.7m

1.9*1.1*1.7m

2.1*1.1*1.7m

2.5*1.7*1.7m

2.7*1.7*1.7m

2.6*1.2*1.7m

2.8*1.2*1.7m
ITEM
CKNC6163
CKNC6180
CKNC61100
CKNC61125
Max.swing over bed
630mm
800
1000
1250
Max.swing over slide
350mm
480
600
850
cessing length
1500mm
1500/3000/6000
Guideway width of bed
550mm
660mm
X axis travel
400mm
520
625
Z axis travel

1000,1500,2000,3000mm
X/Z axis lead screw
4/7m/min
4/5m/min
X/Z axis rapid speed
0.025/0.03mm
X/Z positioning precision
0.01/0.015mm
X/Z repositioning precision
IT6-IT7
Procecessing precision
0.01
Surface  roughness
Ra1.6
Spindle speed range
Three steps frequency,40-125,110-350,290-950
Three steps frequency,15-500
Spindle head type
C11
Dia.of spindle thru-hole
105mm
130mm
Spindle hole tapper
1:20(Metric system)120mm
(metric system)140mm 1:20
Chunk

320(12")optional

400,500mm
400(16")
500(12")
Spindle motor power
11kw
11/15kw
15kw
Tool holder type
Electric 4 staions
Turning tool size
30*30mm
35*35mm
Tailstock sleeve travel
250mm
Tailstock sleeve dia
100mm
Tailstock sleeve taper
Morse 5
Morse6
Controller
SIEMENS,FANUC,KND,GSK
N.w
3600kg
3900KG
6000,8500,13500KG
Dimesion
3700*1500*1600mm
3700*1500*1600

4200*1920*1800(1.5M),4750*1920*1800(2M),

5750*1920*1800(3M)
Flat Bed Cnc

Small Mini Cnc Lathe Machine CK6132 / CK6136


CK6132 (Processing Length is 350mm)
CK6136/CK6136A (Processing length is 750mm/550mm)


3.7kw / 5.5kw inverter motor;

Max. spindle speed is 3000rpm;

Dia. of spindle thru-hole: 40mm/46mm;

4 stations electric turret tool;

Manual 3 jaw self-centering chuck, diameter 160/200mm

CK6140 Flat Bed Cnc Lathe Machine

Standard Configuration:

Siemens CNC Controller

Processing length: 1000mm

5.5KW variable frequency motor;

Max. spindle speed is 3500rpm

Dia. of spindle thru-hole:66mm;

4 stations electric turret tool;
Manual 3 jaw self-centering chuck, diameter 200mm


Optional: Fanuc/Mitsubishi/GSK/KND

6 stations electric turret tool;

Hollow 8 inch hydraulic chuck

CK6150 CNC Horizontal Lathe Machine

Standard Configuration:
Siemens CNC Controller

Processing length: 1000mm
5.5KW variable frequency motor;
Max. spindle speed is 3500rpm
Dia. of spindle thru-hole:66mm;
4 stations electric turret tool;
Manual 3 jaw self-centering chuck, diameter 200mm

Optional: Fanuc/Mitsubishi/GSK/KND
Hollow/Solid 10 inch hydraulic chuck;

6 stations electric turret tool;

Servo spindle motor;

Processing length: 1500mm/2000mm

CK6163 Cnc Lathe Machine

Standard Configuration:
Siemens CNC Controller

Processing length: 1500mm
11KW variable frequency motor;
Max. spindle speed is 950rpm, three steps frequency spindle speed range;

Dia. of spindle thru-hole:105mm;
4 stations electric turret tool;
Manual 3 jaw self-centering chuck, diameter 320mm.

Optional: Fanuc/Mitsubishi/GSK/KND
Hollow 12 inch hydraulic chuck /Solid 15 inch hydraulic chuck;
6 stations electric turret tool;
Servo spindle motor;
Processing length: 2000mm/3000mm

CK6180 CNC Lathe Machine

Standard Configuration:
Siemens CNC Controller
Processing length: 1500mm
15KW variable frequency motor;
Max. spindle speed is 950rpm, three steps frequency spindle speed range;
Dia. of spindle thru-hole:105mm;
4 stations electric turret tool;
Manual 3 jaw self-centering chuck, diameter 400mm.

Optional: Fanuc/Mitsubishi/GSK/KND
Hollow 12 inch hydraulic chuck /Solid 15 inch hydraulic chuck;
6 stations electric turret tool;
Servo spindle motor;
Processing length: 2000mm/3000mm/4000mm

CK61100 Big size cnc lathe

Standard Configuration:
Siemens CNC Controller
Processing length: 1500mm
15KW variable frequency motor;
Max. spindle speed is 500rpm, three steps frequency spindle speed range;
Dia. of spindle thru-hole:130mm;
4 stations electric turret tool;
Manual 3 jaw self-centering chuck, diameter 400mm.

Optional: Fanuc/Mitsubishi/GSK/KND

6 stations/8 stations electric turret tool

Hydraulic chuck

4 jaw manual chuck, diameter 500mm

Processing length: 3000mm

CK61125 Cnc Lathe Machine

Standard Configuration:
Siemens CNC Controller

Guideway width of bed:660mm
Processing length: 1500mm
15KW variable frequency motor;
Max. spindle speed is 500rpm, three steps frequency spindle speed range;
Dia. of spindle thru-hole:130mm;
4 stations electric turret tool;
Manual 4 jaw self-centering chuck, diameter 800mm.

Optional: Fanuc/Mitsubishi/GSK/KND

Guideway width of bed: 755mm
6 stations/8 stations electric turret tool
Hydraulic chuck
4 jaw manual chuck, diameter 1000mm
Processing length: 3000mm

Our Company
Packing & Delivery

Packing Details  : Packing by woodenbox or depend on request

Delivery Details : 7-45 days
