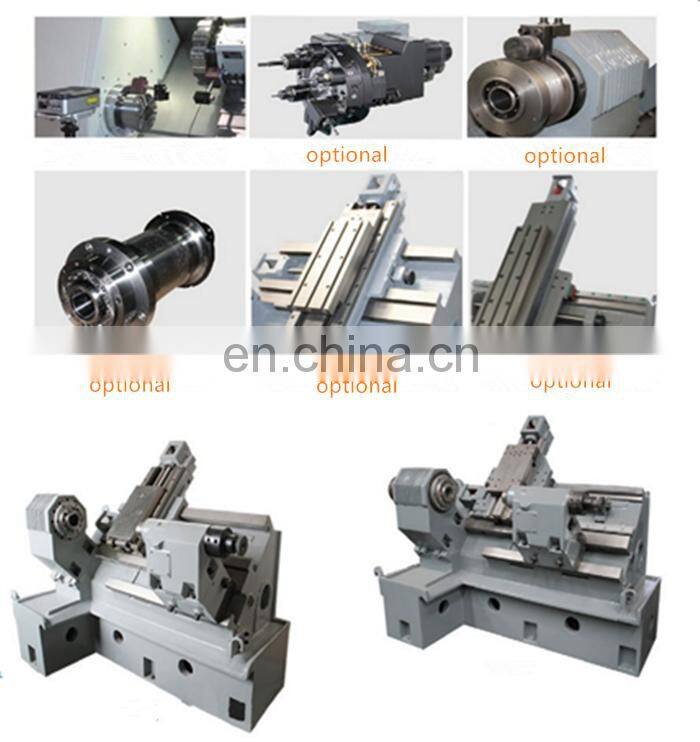

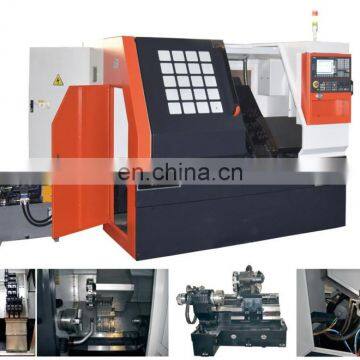

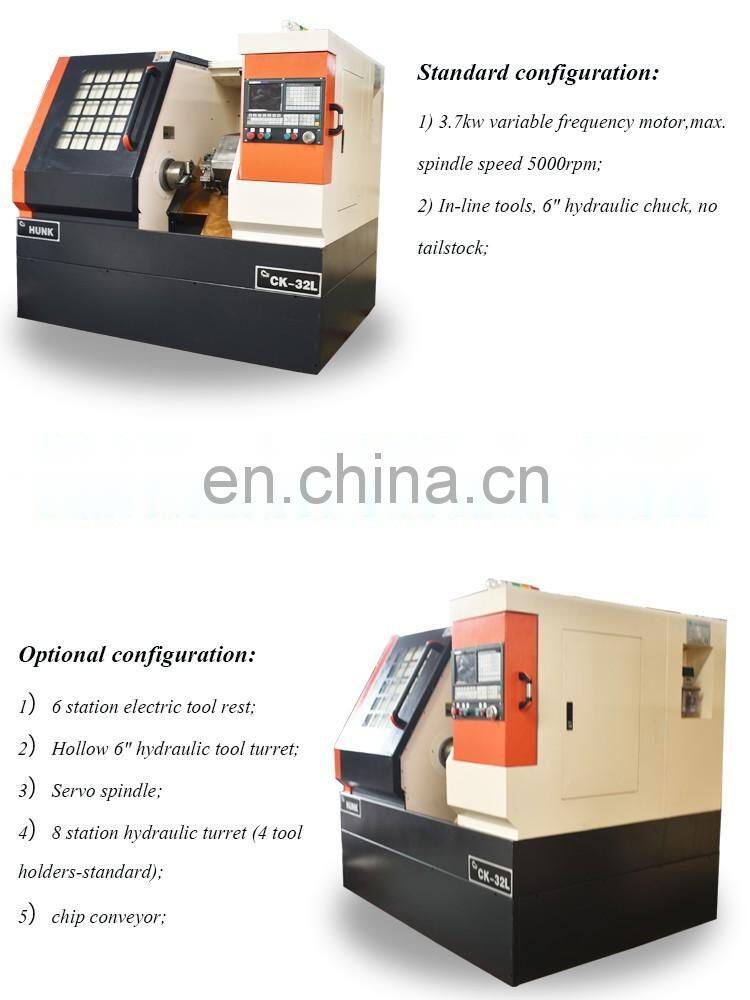

Help CenterCK-32L Turning Precision Universal Cnc Lathe Machine Price
Related Products
-
CKNC61100 Turret Metal Universal Lathe Indexing of Milling MachineUS$ 35,808 - 42,036MOQ: 1 Set -
CKNC61100 Cnc Turning Turret Lathe Machine SpecificationUS$ 35,808 - 42,036MOQ: 1 Set
-
Metal Lathe Cutting Tools CKNC61125 5 Axis Cnc Controller BoardUS$ 35,807 - 42,036MOQ: 1 Set
-
CKNC6150 High Quality Wheel Repair Horizontal Cnc LatheUS$ 9,550 - 12,608MOQ: 1 Set
-
CK-63L China Horizontal Cnc Metal Lathe Manufacturing Companies PriceUS$ 40,300 - 52,330MOQ: 1 Set
Export Products
Product-related Data
| item | Parameter | unit | CK-32L | CK-36L |
| Processing | Max.swing over bed | mm | 320 | 360 |
| Max.swing over slide | mm | 160 | 160 | |
| Max. processing length | mm | 350 | 350 | |
| Max. cutting dia.(disc type) | mm | 200 | 254 | |
| Max. bar dia. | 40 | 45 | ||
| spindle | Spindle speed | 4000 | 4000 | |
| Spindle nose ISO form | A2-5 | A2-5 | ||
| Thru-hole dia. | 56 | 56 | ||
| Chunk dia. | mm | 160(6”) | 160(6”) | |
| Motor power | kw | 3.7(servo) | 3.7(servo) | |
| Body structure | Body structure | 30°integrated | 30°integrated | |
| X axis travel | mm | 200 | 200 | |
| Zaxis travel | mm | 350 | 350 | |
| X/Z axis rapid speed | mm | 24/24 | ||
| Tool holder | type | mm | 63-8T | |
| Tool size | mm | 20*20 | 20*20 | |
| tailstock | Tailstock sleeve dia. | mm | 52 | |
| Tailstock sleeve travel | mm | 60 | ||
| Tailstock sleeve taper | mm | MT4 | ||
| precision | Processing precision | IT6 | ||
| Repositioning precision | X:0.006, Z:0.008 | |||
| roughness | Ra.≤0.8 | |||
| dimension | N.W | kg | 1500 | 1700 |
| Dimension | m | 1.8*1.2*1.7 | 1.8*1.6*1.6 |
Packaging Detail: High quality wooden case.
Delivery Detail:Within 35 working days after receiving your deposit.
According to the customer's requirements.
Transport Information
Packaging Information
If you need to know more about our products,please contact with us!
Jinan Hankui International Trade co., LTD, is a high tech enterprise and also an exporter, with 10000000 RMB capital,Integrated with manufacturing, processing and sales of machine tools, which has more than 10 years experience in machine tools production. As the strategic partner of Jinan First Machine Tool Co., Ltd, we have mastered the advanced machine tool technology and dedicated to customers domestic and abroad and made an excellent achievement.The main products are machine tools and metal parts. We have a strong technical force and rich experience in machine tools industry,and our designers, R&D and engineering technicians had taken part in the design and production of advanced level machine tools in China, such as general utility horizontal machining center, CNC vertical lathe, CNC slant bed lathe, vertical machining center, CNC double column machining center, etc.
Factory Information
Certificate Information
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
