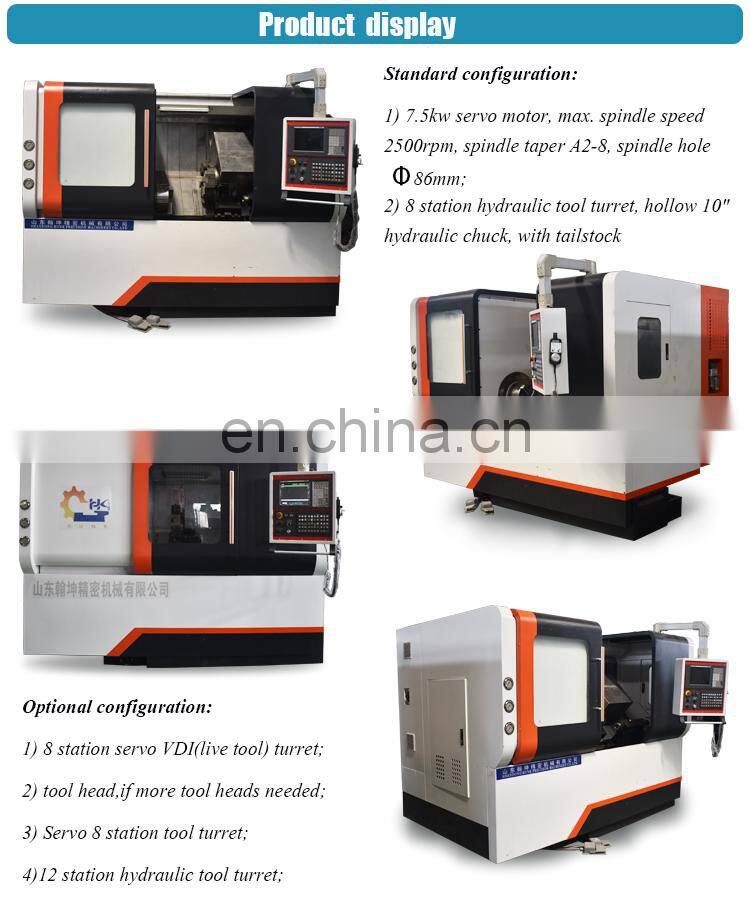

Desktop Lathe CNC Turning center CK50L China Mini CNC Lathe Machine Price
unit |
CK50L |
CK63L |
CK80L |
|
Max.swing over bed |
mm |
500 |
630 |
800 |
Max.swing over slide |
mm |
320 |
500 |
640 |
cessing length |
mm |
550 |
890 |
890 |
Max.cutting Dia. |
mm |
420 |
630 |
800 |
Max.bar Dia |
mm |
80 |
80 |
90 |
Spindle Speed |
rpm |
2500 |
2200 |
1500 |
Spindle Nose ISO form |
|
A2-8 |
A2-8 |
A2-11 |
Thru-hole Dia. |
mm |
86 |
86 |
112 |
Chuck Dia. |
mm |
250(10") |
320(12") |
380(15") |
Motor power |
kw |
5.5/7.5/11(servo) |
11/15(servo) |
18-22(servo) |
Body Structure |
|
30° integrated |
30° integrated |
|
X axis travel |
mm |
260 |
410 |
410 |
Z axis travel |
mm |
550 |
860 |
860 |
X/Z axis Rapid Speed |
m/min |
24/24 |
18/18 |
18/18 |
Type |
|
100-8T |
160-8T |
160-8T |
Tool size |
mm |
25*25 |
25*25 |
25*25 |
Tailstock sleeve Dia |
mm |
75 |
150 |
150 |
Tailstock sleeve Travel |
mm |
100 |
150 |
150 |
Tailstock sleeve Tapper |
|
MT5 |
MT5 |
MT5 |
Procssing precision |
|
IT6 |
IT6 |
IT6 |
Re-Procssing precision |
|
X0.006 Z0.01 |
X0.006 Z0.01 |
X0.006 Z0.01 |
Roughness |
|
Ra≤1.25 |
Ra≤1.25 |
Ra≤1.25 |
Machine N.W |
kg |
3500 |
5500 |
5600 |
Dimension |
mm |
3100*1800*1800 |
3800*2200*2200 |
3800*2200*2200 |
1)Frame feature

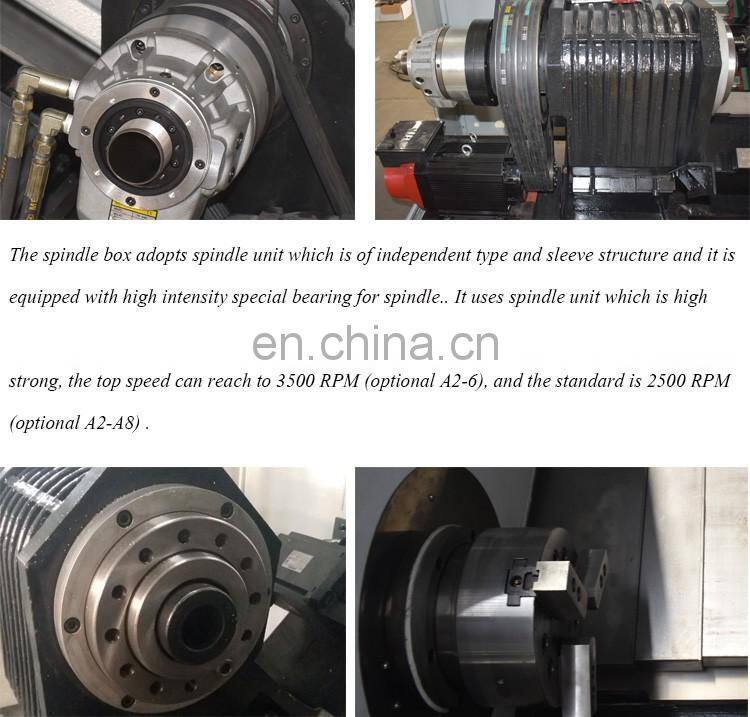

2) Spindle Feature
3) protective device
The two guide rail of X, Z direction and screw are all adopt protective device,
which ensures the cleanness of lead screw and guide rail. It also ensures the
accuracy of drive and motion and machine service life;

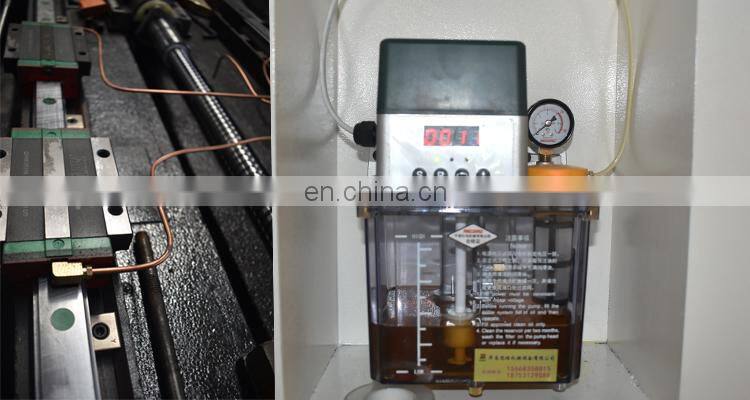

4) lubrication
It uses a reliable device which is automatic and centralized to lubricate. It can lubricate automatically and
intermittently to all lubrication points of CNC lathe. And it can settle lubricating time according to operating
conditions.
Jinan Hankui international trade co., ltd, which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.
The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc. With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.
Now our products have a large market share and have a high popularity in domestic. Sales and services network have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.
We have passed the ISO9001:2008 international quality management system authentication. “Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.
