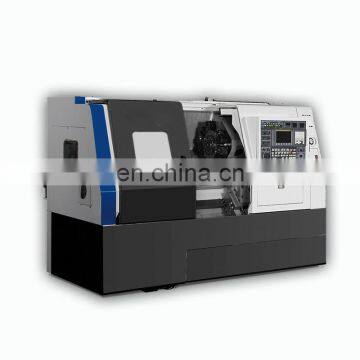

Micro CNC Lathe With C Axis Machine And Bar Feeder
Product Description
Technical Parameter
| Item | Unit | CK32L | CK36L | CK40L | CK50L | CK63L | CK80L |
| Max.Swing over Bed | mm | 320 | 360 | 400 | 500 | 660 | 800 |
| Max.Swing Over Slide | mm | 160 | 160 | 220 | 320 | 500 | 640 |
| Max.Processing Length | mm | 350 | 350 | 450 | 550 | 890 | 890 |
| Max.Cutting Dia.(disc type) | mm | 200 | 254 | 360 | 420 | 630 | 800 |
| Max.Bar Dia | 40 | 55 | 55 | 80 | 80 | 90 | |
| Spindle Speed | rpm | 4000 | 4000 | 3500 | 2500 | 2200 | 1500 |
| Spindle Nose ISO Form | A2-5 | A2-5 | A2-5 | A2-8 | A2-8 | A2-11 | |
| Thru-hole Dia. | mm | 41 | 58 | 58 | 86 | 86 | 112 |
| Chuck Dia. | mm | 160 | 200 | 200 | 250 | 320 | 380 |
| Motor Power | kw | 3.7 | 3.7/5.5 | 5.5/7.5/11 | 11/165 | 18~22 | |
| Body Structure | 45° | 30° integrated | 30° integrated | 30° integrated | |||
| X Axis Travel | mm | 200 | 200 | 210 | 260 | 410 | 410 |
| Z axis Travel | mm | 350 | 350 | 450 | 550 | 860 | 860 |
| X/Z Axis Rapid Speed | 24/24 | 24/24 | 24/24 | 24/24 | 18/18 | 18/18 | |
| Type | 63-8T | 80-8T | 100-8T | 160-8T | 160-8T | ||
| Tool Size | 20*20 | 20*20 | 20*20 | 25*25 | 25*25 | 25*25 | |
| Tailstock Sleeve Dia. | mm | 52 | 52 | 75 | 150 | 150 | |
| Tailstock Sleeve Travel | mm | 60 | 60 | 100 | 150 | 150 | |
| Tailstcok Sleeve Tapper | MT4 | MT4 | MT5 | MT5 | MT5 | ||
| Processing Precision | mm | IT6 | IT6 | IT6 | |||
| Re-positioning Precision | mm | X:0.006 Z:0.008 | X:0.006 Z:0.01 | ||||
| Roughness | Ra≤0.8 | Ra≤1.25 | |||||
| N.W | kg | 1500 | 1700 | 2700 | 3500 | 5500 | 5600 |
| Dimension | mm | 1.6*1.4*1.6 | 1.8*1.6*1.6 | 2.8*1.6*1.6 | 3.1*1.8*1.8 | 3.8*2.2*2.2 | 3.8*2.2*2.2 |
