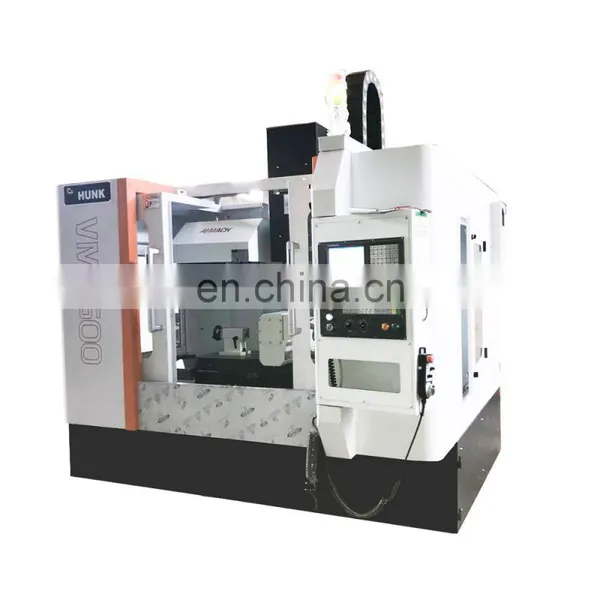

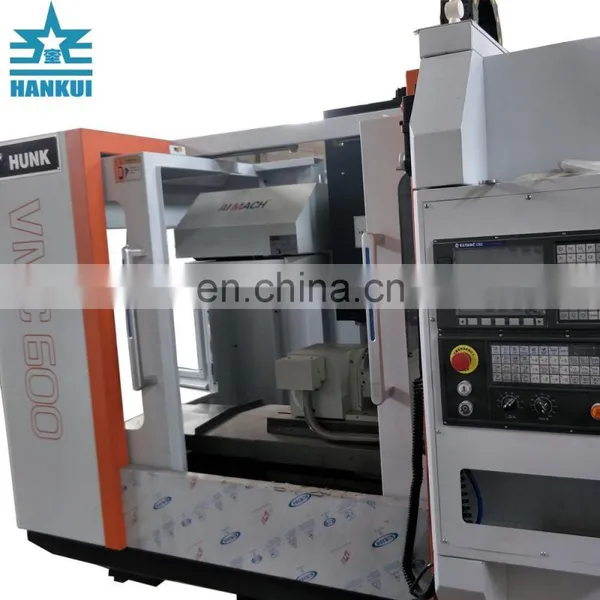

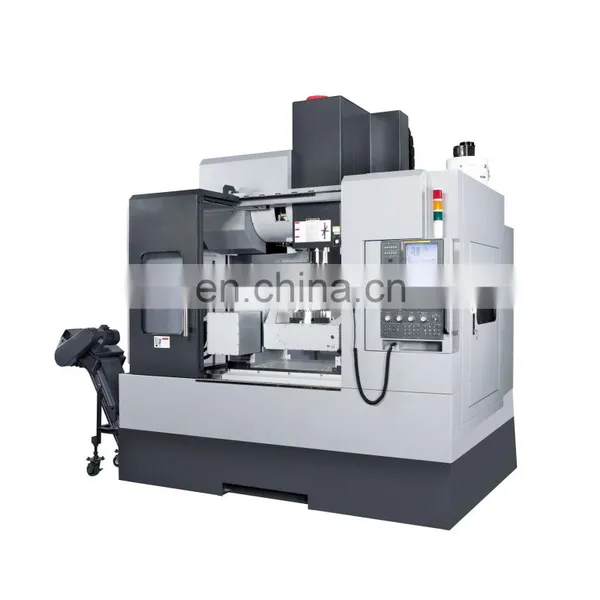

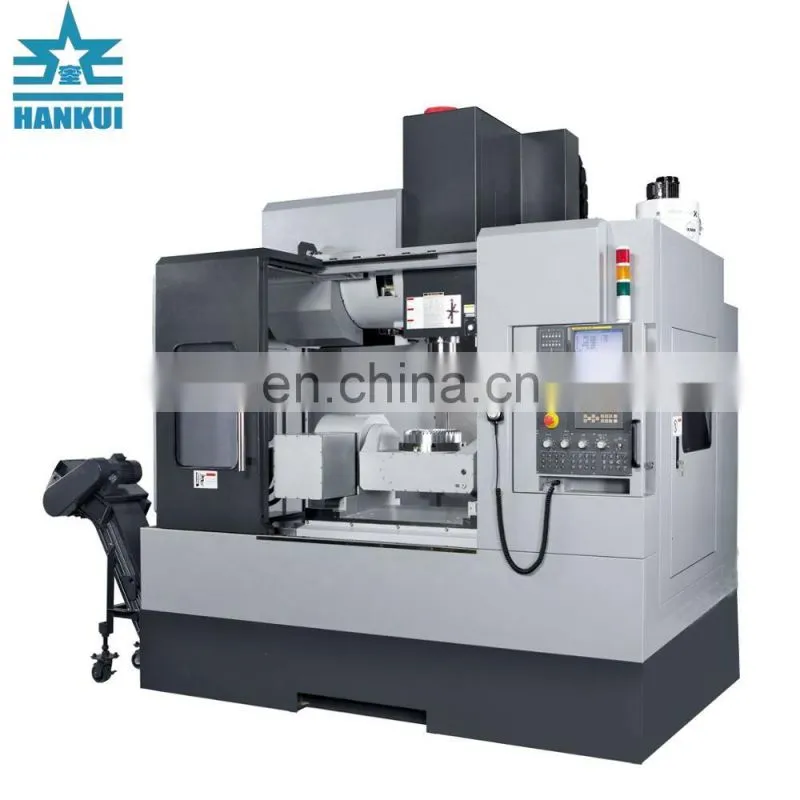

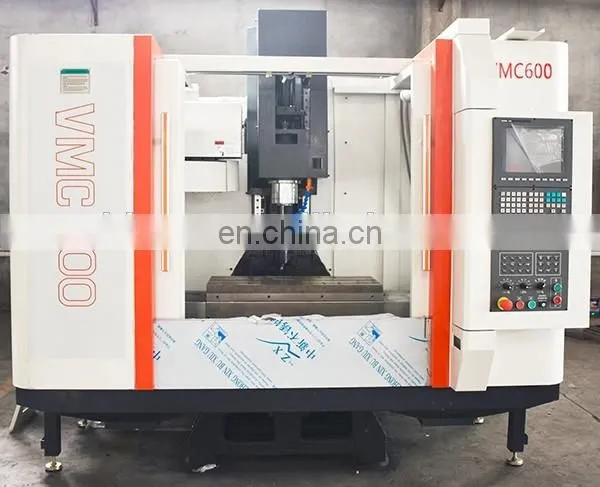

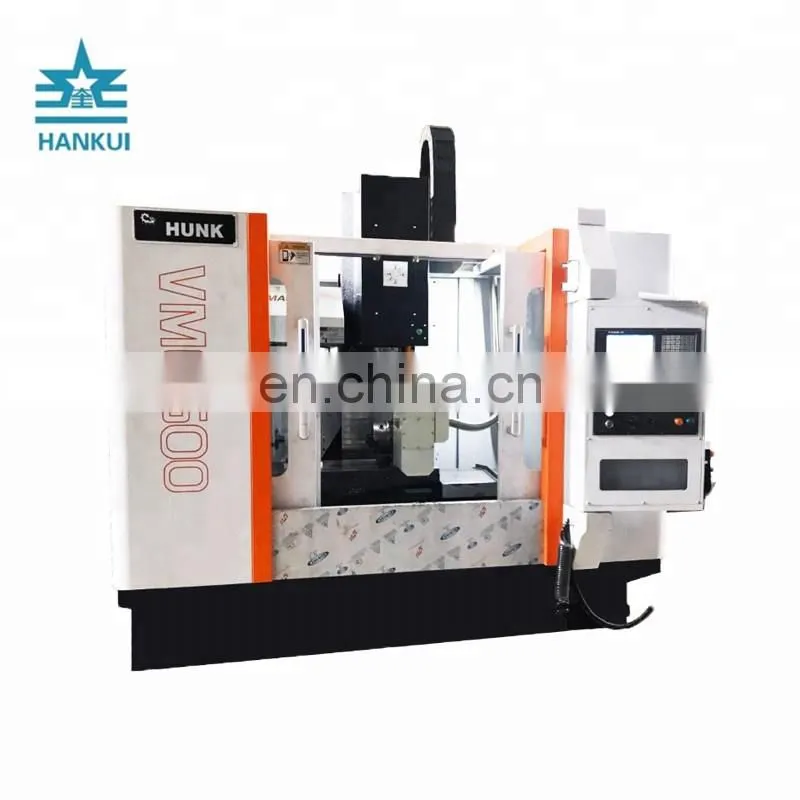

lego technic china vertical lathe machine VMC600L Small 5 axis CNC mill vertical machining center price

Standard configuration:

1)5.5kw servo motor, spindle speed 10000rpm, BT40;

2) 16(standard) tools, Drum-type tool magazine,

3) Nozzle coolant, Belt Driven,

4) HIWIN (Taiwan) ballscrew,

5) PMI (Taiwan) linear guideway,

6) ROYAL/POSA (Taiwan) spindle,

7) Schneider( France) electric parts,

8) Heat exchanger



Optional configuration:

1)No tool magazine;

2) 16 tools, Umbrella-type tool magazine, BT40 spindle;

3) Spindle speed 12000r(with oil cooler), spindle conneted to the drive motor directly;

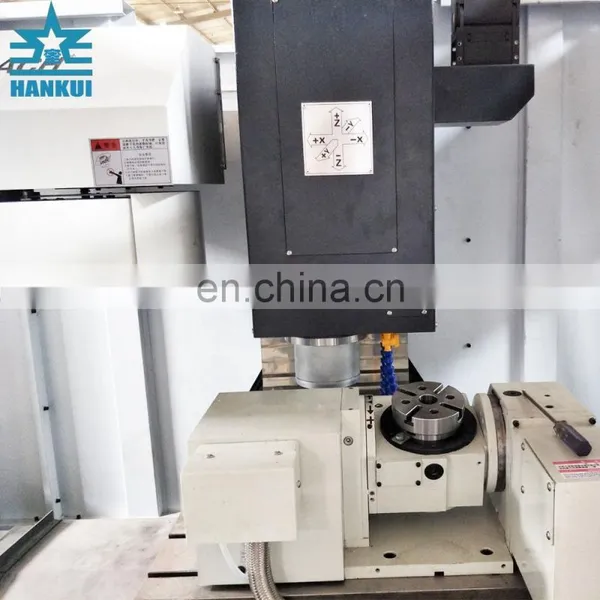

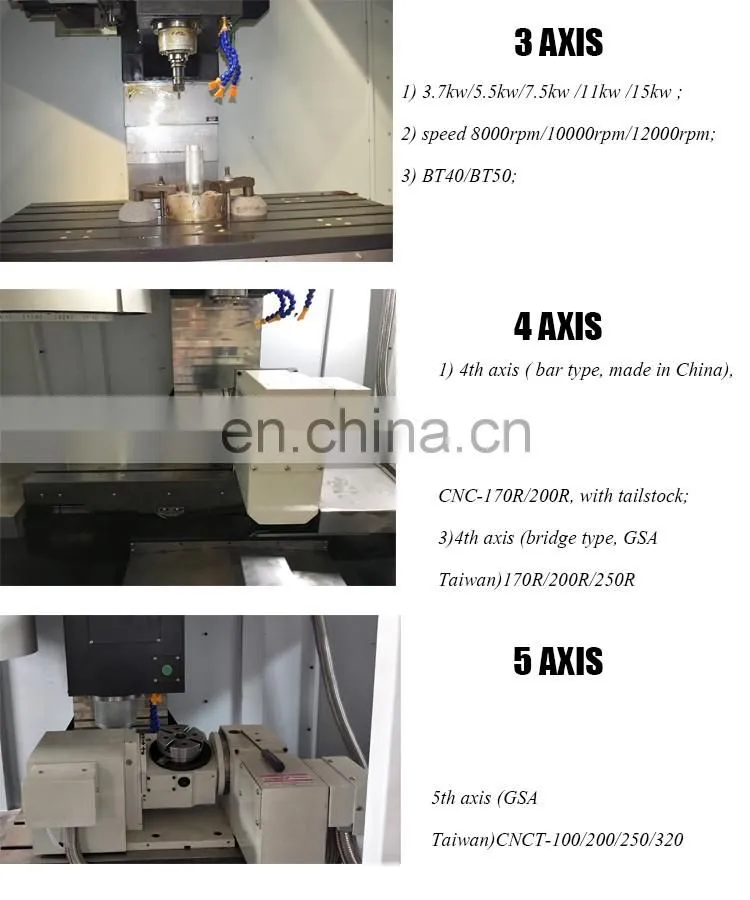

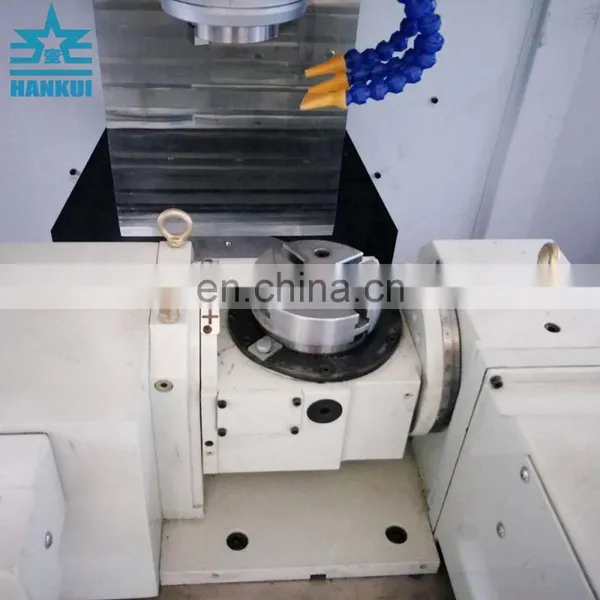

4) 4th axis ( bar type, made in China), center height 110mm/125mm, with tailstock;

5) 4th axis (bar type, GAS Taiwan) CNC-170R/200R, with tailstock;

6)4th axis (bridge type, GSA Taiwan) CNC-120R/170R/200R

1.cast lron(machine bed) Meehanite cast iron                                                   2.CNC controller Siemens/FANUC

3.Main spindle motor Siemens/FANUC                                                               4.Three axis drive motor Siemens/FANUC

5.Spindle brand TaiWAN                                                                                            6.Booster cylinder Taiwan

7.Bearing NSK/FAG/NTN                                                                                         8.Ball screw Taiwan PMI/HIWIN

9.Three axis box guide way American Trellebog                                             10.Three axis Linear guide way PMI/THK

11.3 axis preloaded nut Taiwan/Yinsh                                                                 12.3 axis coupling German/R+W

13.Central lubrication system Herg                                                                     14.Heat exchanger Taiwan/point

15.Oil coolant Taiwan/point                                                                                    16.Air filter Taiwan/Air ATC

17.Electrical components Schneider

Packing:

Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine

Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable

Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.

Q: What sales terms do you have?
A:T/T, L/C,West Union.

Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,

Q: Once  machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.

Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.

Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD

Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.

Q:  Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.

  The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc.

Now our products have a large market share and have a high popularity in domestic. Sales and services network have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.

We have passed the ISO9001:2008 international quality management system authentication. "Honest and trust, Customer ahead, pursuit of excellent", we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.
