Small China Plain Cutter Dredger for Sale With Cutter Head
US$ 200,000 - 300,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Jin Meng Dredger
Place of Origin:
Shandong, China
Model Number:
JMD350
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8/12/18/24/26 Inch Cutter Suction Dredger River Sand Dredging Machine With Engine and Cutter HeadUS$ 500,000 - 800,000MOQ: 1 Set -
Portable China Cutter Sand Suction Dredger With Leading Dredging Equipment and MachineryUS$ 500,000 - 1,000,000MOQ: 1 Set
-
Marine 20inch Cutter Suction Dredger Machinery for Mining and Dredging in BangladeshUS$ 400,000 - 700,000MOQ: 1 Set
-
China River Sand Suction Low Price Sand Dredger Machine for SaleUS$ 500,000 - 800,000MOQ: 1 Set
-
Medium Sized Non Propelled Cutter Suction Dredger Equipment for Salt DredgingUS$ 1,000,000 - 2,000,000MOQ: 1 Set
Brand Name
Jin Meng Dredger
Place of Origin
Shandong, China
Model Number
JMD350
Type
Cutter Suction Dredger
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 Year
Weight
70T
Dimension(L*W*H)
23x5.8x1.8m
Power Type
Diesel
Condition
New
Draught
100 cm
Dredging Depth
8 m
| 1. Detailed technical specifications for JMD350 14 inch cutter suction dredger |
| Water flow | 1,100m3/h |
| Solid sand capacity | 290cbm/h |
| Max. dredging depth 45° | 10m |
| Discharge distance | 1100m |
| LOA | 26m |
| Dredger after assembly | Length* width* depth 19*7*2m |
| Engine room pontoon | Length* width* depth 11.55*3*2m |
| Side pontoon | Length* width* depth 16*2*2m |
| Structure | Can be dismantle and assemble at working site |
| Average draught | 1.4m |
| Diameter discharge pipe | 250mm/10inch |
| Diameter suction pipe | 300mm/12inch |
| Main engine power&type | 351 kw Cummins engine KTA19-M |
| Rotate speed | 1800r/min |
| Hydraulic winch | 50 kn |
| Hydraulic cutter power | 50 kw |
| Diameter cutter head | 1300mm |
| Diameter spud cylinder | 100 mm |
| Spud diameter | Φ325mmx14m |
| Emergency genset power | 24GF Cummins |
| Max. oil consumption | 52.6L/H |

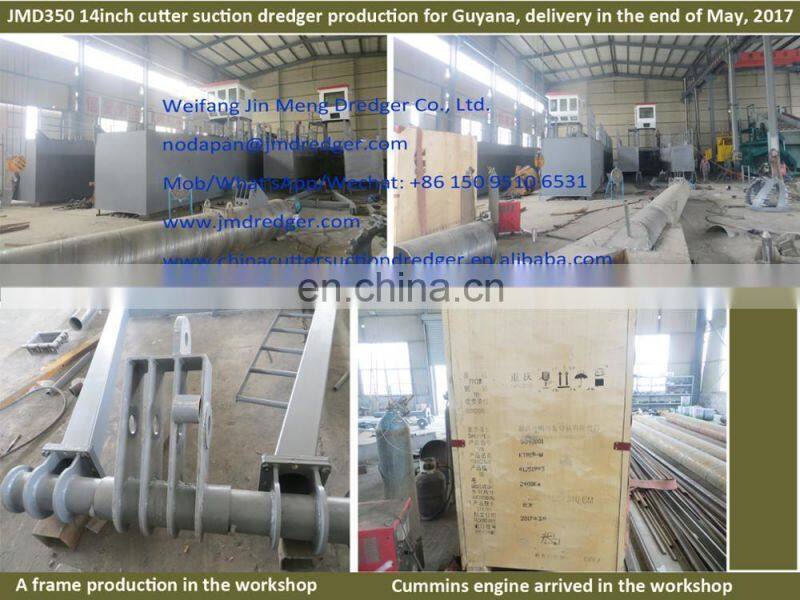

| 2. Cutter dredger production in the workshop |
|
Working site and construction of cutter suction dredger: sea, port, lake, and river. Soil conditions: relative hard soil, harden sand, sludge, sea sand, river sand, clay, mud, and so on. The design, construction, quality inspection is according to the standards and regulations of CCS. The hull, machinery equipments and other spares are at the requirements of CCS. The hull is square, cross keel, which is full welding steel structure, and authorized by CCS. |
| 3. Cutter dredger put into container for transportation |
| The dredger is dismantle type, can be transported by truck and assembly in the working place |

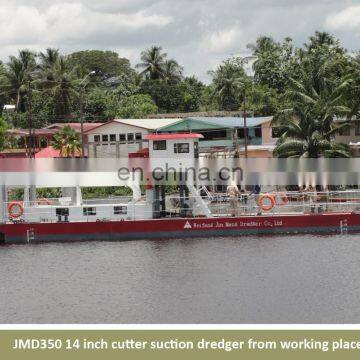

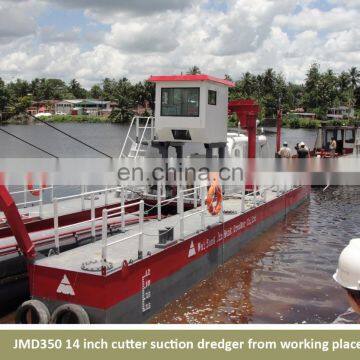

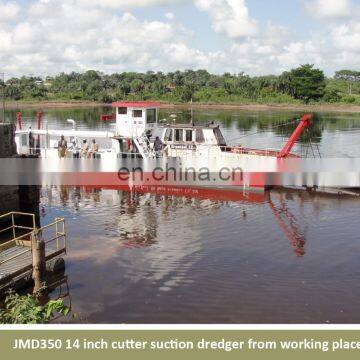

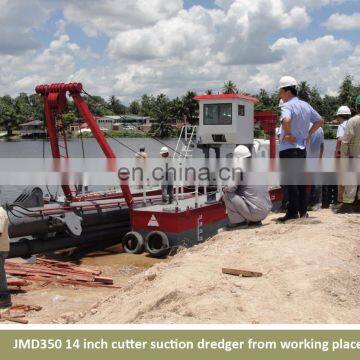

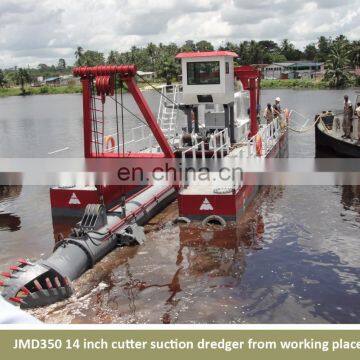

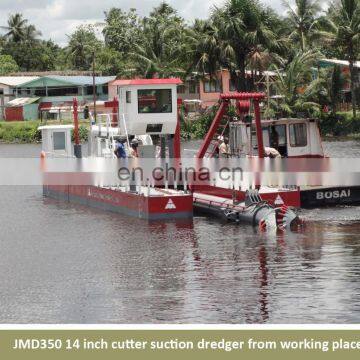

| 4. Cutter dredger installation in the working place |
|
Composition of the system ——One main engine pontoon ——Two side pontoons ——Connected devices of floating pontoon ——Upper structures ——Equipment base and special strengthen devices and equipments |
| 5. Diesel engine on the cutter suction dredger/Deutz/Cummins/Cat engine |
| 6. Hydraulic winch on the cutter suction dredger |
| 7. Dredging pump on the cutter dredger |
| 8. Cutter dredger transportion in the port/transported in bulk |
| 9. Cutter suction dredger pushed into water after assembly in the working place |
| 10. Cutter suction dredger tested in the working place |
| 11. Cutter suction dredger with double dredging pumps for dredging depth more than 20m |
| 12. Work boat for servicing of the dredger |
| 13. Cutter suction dredger sold to different countries |
Inch |
Water flow |
Solid sand capacity |
Dredging depth |
Distance |
8/6 |
550m3/h |
110cubic meter/h |
6m |
600m |
10/8 |
800m3/h |
160cubic meter/h |
8m |
800m |
12/10 |
1450m3/h |
290cubic meter/h |
10m |
1100m |
14/12 |
2500m3/h |
500cubic meter/h |
12m |
1200m |
14/12 |
2500m3/h |
625cubic meter/h |
20m |
1700m |
20/18 |
3500m3/h |
700cubic meter/h |
15m |
1500m |
20/18 |
3500m3/h |
875cubic meter/h |
20m |
1800m |
24/20 |
6000m3/h |
1200cubic meter/h |
15m |
2000m |
24/20 |
6000m3/h |
1500cubic meter/h |
20m |
2000m |
30/24 |
8000m3/h |
1600cubic meter/h |
18m |
1800m |
| 14. Company profile as manufacturer/supplier for cutter suction dredger |
