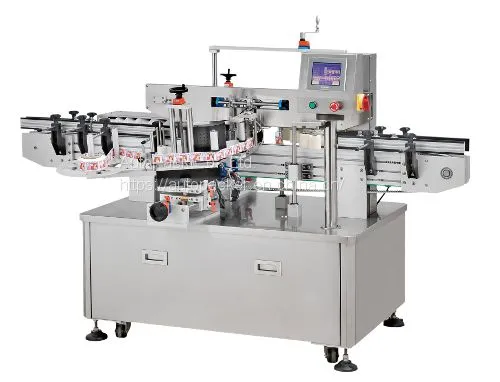

Help CenterHigh Speed Front and Back Labeling Machine LD-350S
Related Products
-
Tabletop Round Bottle Labeling Machine LR-100US$ 1 - 1MOQ: 1 Set -
Horizontal Round Bottle Labeling Machine LR-460US$ 1 - 2MOQ: 1 Set
-
Rotary Round Bottle Labeling MachineNegotiableMOQ: 1 Set
-
Horizontal Round Bottle Labeling MachineNegotiableMOQ: 1 Set
-
Rotary Round Bottle LabelerNegotiableMOQ: 1 Set
Model No.: LD-350S
High Speed Front and Back Labeling Machine LD-350S is ideal for simultaniously applying Front and Back pressure sensitive labels to a container.It suits for Round Oval, Square ,Rectangular or Irregular products labeling. Armed with 2 Label Applicators. Both of applicator could run individually.
FEATURES:
Servo Motor Driven / Max Labeling Speed: 40 Meter/ Min
PLC Program and Touch Screen for Easy work
Labeling speed synchronizes with conveyor ensure quality labeling
Alignment Belt makes bottle Self-Centering and Distances bottles
Top Hold-Down Conveyor enhance stability while labeling
Two copies Wipe Down Roller ensures smooth labeling
Through Beam Optic Fiber Sensation to get perfect product Positioning
No Further Sensor Adjustments required for different labels
Simple Adjustment of labeling head by Hand Wheel with Position Indicator
Label Count Down feature
Production Run Counter
Quick and easy Changeover
Heavy Duty Conveyor by MCC Slat Chain conveyor
Sanitary SUS#304 and anodized aluminum frame
OPTIONS:
Wrap Station for quality bottles labeling
Mitsubishi Servo Motor : Labeling Speed at 40 Meter / Min
Touch Screen Control System with Job Memory
Motorized Screw Spacer
LION LDR2100 Clear Label Sensor
Stainless Cabinet Type
Standard Infeed & Accumulation Tray
Motorized Infeed and Accumulation Rotary Table (600mm or bigger)
Belt Type Infeed system: Larger Capacity
Hot Stamping Coding Machine(PE-200 , PM-200)/ Ink jet printer
SPECIFICATIONS:
Labeling Speed: 40~100 bottles/Min(Depends on Container and Label Size)
Label Width: 10~100mm
Label Length: 20~300mm
Label Roll: Inner diameter 75mm / Outer Diameter 300mm
Bottle Size: Diameter 20~125mm / Height 30-160mm
Power: single phase 110/220VAC, 50/60Hz
Machine Dimensions: (L)2200mm (W)1360mm (H)1570mm
(For reference only, the real drawing should be considered as final.)
