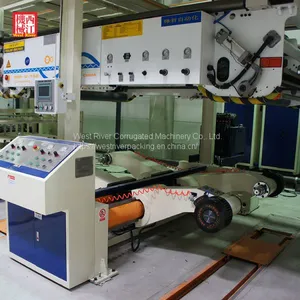

Help CenterAuto Splicer for High Speed Paper Corrugation Machines
Related Products
-
Flexible Cardboard Logistics System For Corrugated Cardboard Production Line | PLC ControlUS$ 5000 - 20000MOQ: 1 Set -
RGV Auto Cardboard Logistics and Storage System for Carton Box Making Finishing Line | Bar Code InfoUS$ 5000 - 20000MOQ: 1 Set
-
West River Corrugated Machinery CorrugatorsUS$ 500000 - 2000000MOQ: 1 Set
-
2/3/5/7Layer Complete Corrugated Cardboard Manufacturing Machine Production Line Fully AutomaticUS$ 380000 - 1000000MOQ: 1 Set
-
7 Layer Complete Corrugated Cardboard Production Line Wet End and Dry EndUS$ 850000 - 1500000MOQ: 1 Set
Features
1. Dual relax rollers structure, make more smooth of each splicing.
2.Effective splicing manner, make paper guide through very convenient all the same.
3.Equipped with unique agglutinate manner of dual rollers press, even worse paper could get better agglutinate, ensure success ratio of splicing.
4.Higher stable success ratio of splicing is over 99%.
5.The machine could be upgraded from low speed type to high speed type.
6.Might connect by network with most production management system.
Character and Parameter
Type | BA-150 | BA-200 | BA-300 |
Max. Splicing Speed (m/min.) | 150 | 200 | 300 |
Relax rollers | 2 | 2 | 2 |
Automatic Tension Force Control | Yes | Yes | Yes |
Low grade paper splicing(option) | Yes | Yes | Yes |
Paper zero tail splicing(option) | Yes | Yes | Yes |
Could be upgraded | Yes | No | No |
Electric requirement:~220v/50Hz | 5A | 5A | 5A |
bar Pressure of compressed air | 5.5 | 5.5 | 5.5 |
Kg Maximum load weight | 3000 | 3200 | 3300 |
Nm Maximum brake torque | 760 | 760 | 760 |
(mm) Diameter of Paper Scrolls | 300 to 1524 | ||
(mm) Breadth of Machine | 1800/2200/2500/2800 | ||
A: Yes, we are the professional manufacturer.
2Q: Where are your factory located in ?
A: Our factory located in Zhaoqing city, Guangdong, China
3Q: Where is the nearest airport of factory ?
A: The nearest airport is Guangzhou Baiyun International airport. It take 1.5 hours from Guangzhou to Zhaoqing factory by car. We are glad to pick you up at the airport.
4Q: What is your business process?
A: Talk about requirements, confirm details, sign a sales contract, pay for deposit, arrange production, test machines, buyer pay for the balance payment, arrange shipment.
5Q: How to control machine quality ?
A: All material are environmental protection,non-pollution
We have professional technicists to supervising to production
Our professional department to examine about every production process
6Q:What can you do if the machine broken?
A: The warranty period is 1 year. If the broken parts can't repair, we can send the new parts to replace the broken parts for free, but you need to pay the freight. After warranty period, we can negotiate to the problems, and we supply the technical support for the whole life of the equipment.
