Borehole & Downhole Testing Digital Well Logging Equipment Manufacturer

Technical Specification

• 12bit A/D Conversion, Program-Controlled Magnification K=0.5~128
• Counting Channel: f≤500KHz
• Digital Signal Transmission Frequency: 9600bit/s
• Power Supply Cycle: 400ms
• Current: 2mA~500 mA Optional
• Signal Input Range: ≤±10V
• Continuous Working Time: ≤24 hr
• Power Consumption:<200W
• Volume: 420×260×210mm,
• Weight:<7Kg
• Working Temperature Range: -10℃~ +50℃
• Working Power Supply: AC220V±10% 50Hz ±5%
• Logging Speed: 0~30 m/min Adjustable (as per sampling interval)

About Product

Applications & Features

• Coal Field Digital Integrated Logging.
• Hydrological Engineering Digital Integrated Logging.
• Solid Metal Ore Digital Integrated Logging.
• Other Minerals Digital Integrated Logging.
• External Laptop (Desktop PC).
• For upward logging, also for downward logging.
• Receive digital signal, analog signal.
• 8 taps of power supply current, Optional.
• Automatic sampling as per depth interval, sampling interval arbitrarily.
• Indoor simulation logging, repeatability observation of instruments and probes.
• Membrane panel, attractive and durable.

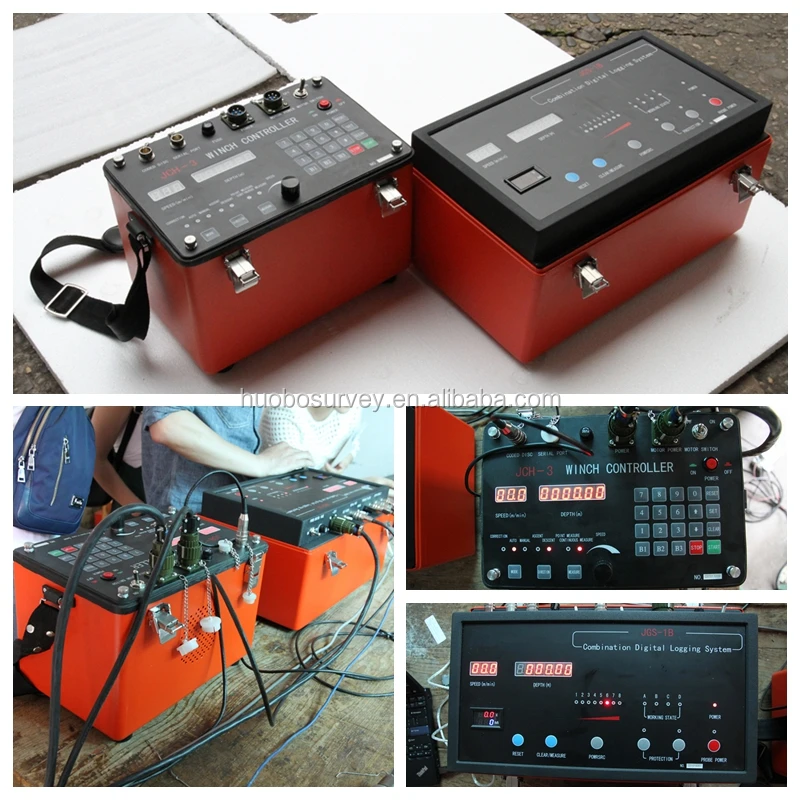

Product Show

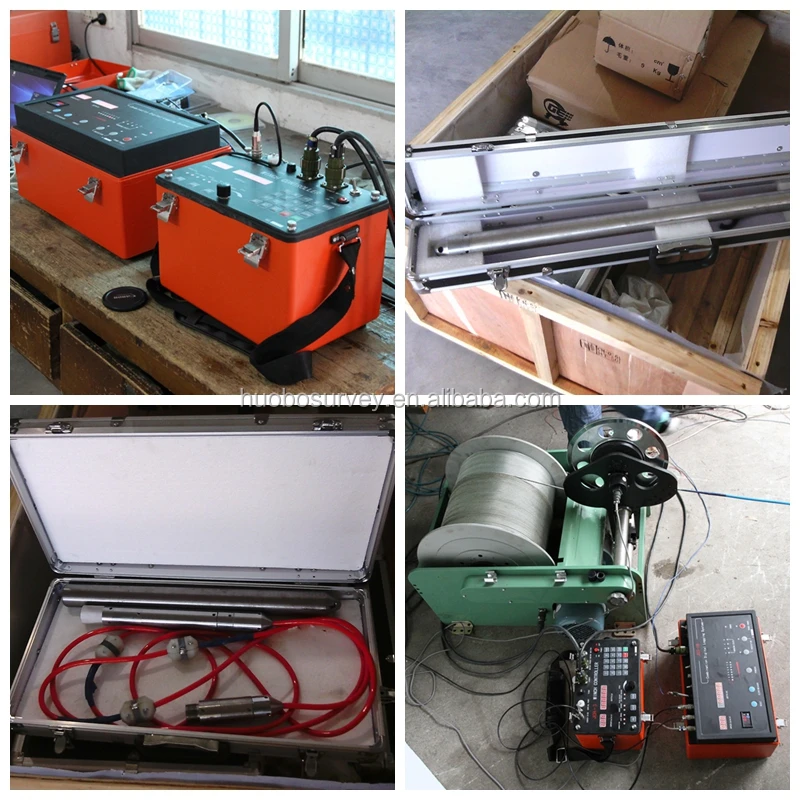

Packing
