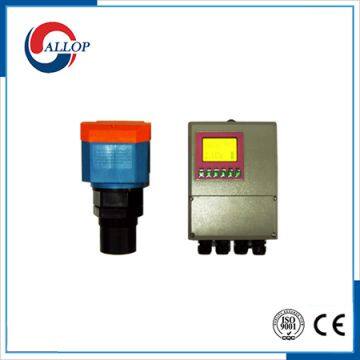

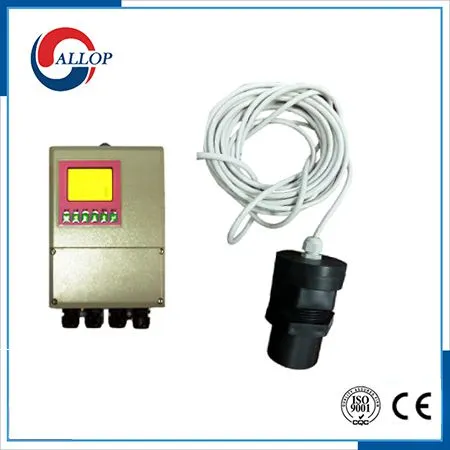

Anti-corrosion ultrasonic liquid level meter gauge
Ultrasonic level sensor for fuel tank with ABS housing and PTFE sensor. Non-contact measuring and LCD display . Which can be used for oil tank,fuel,rivers,alkali,sewage treatment plant etc.Also can be used for the measuring of the solid.
Main specifications
Measuring range:0.4~30m
Pressure:-0.2~1bar
Protection Grade:IP65 / IP66
Accuracy:±0.5%FS
Dead Band:0.25-0.9m(The size of the blind zone is directly proportional to the ranging capability, and the blind zone is inherent.)
Ambient Temperature:-15~+55℃
Relative humidity:≤95%
Connection:M66*3 thread
Output:two wire / 4~20mA, two wire / 4~20mA / HART / RS485
Open a hole with:68mm
Dimensions

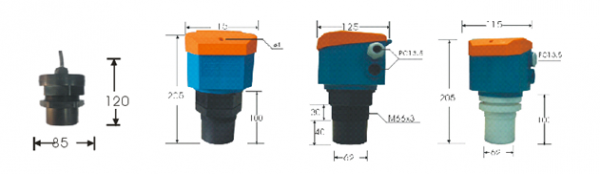

The dimensions of ultrasonic fuel level sensor (unit:mm)

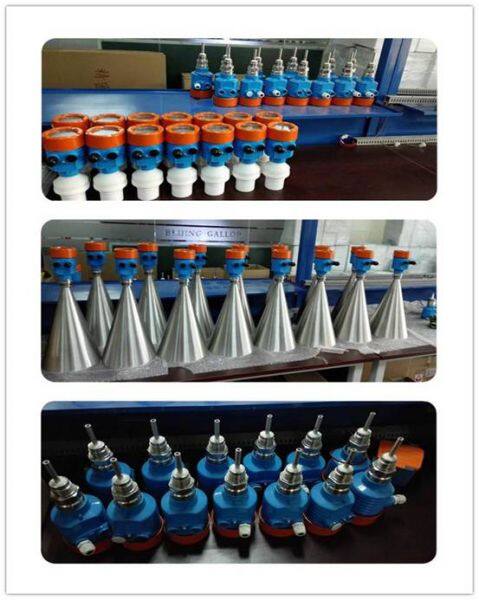

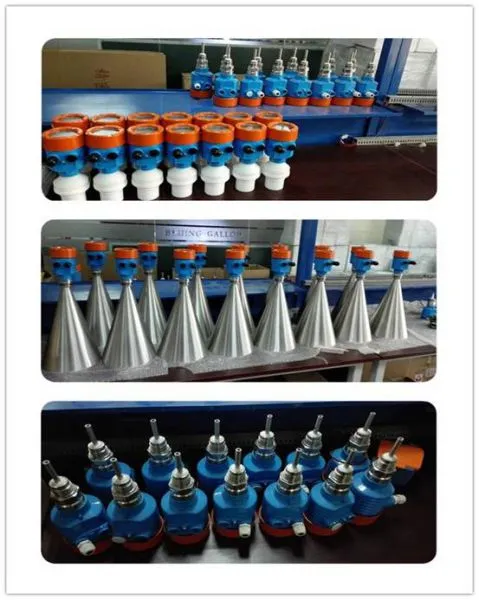

Product application of ultrasonic fuel level sensor
