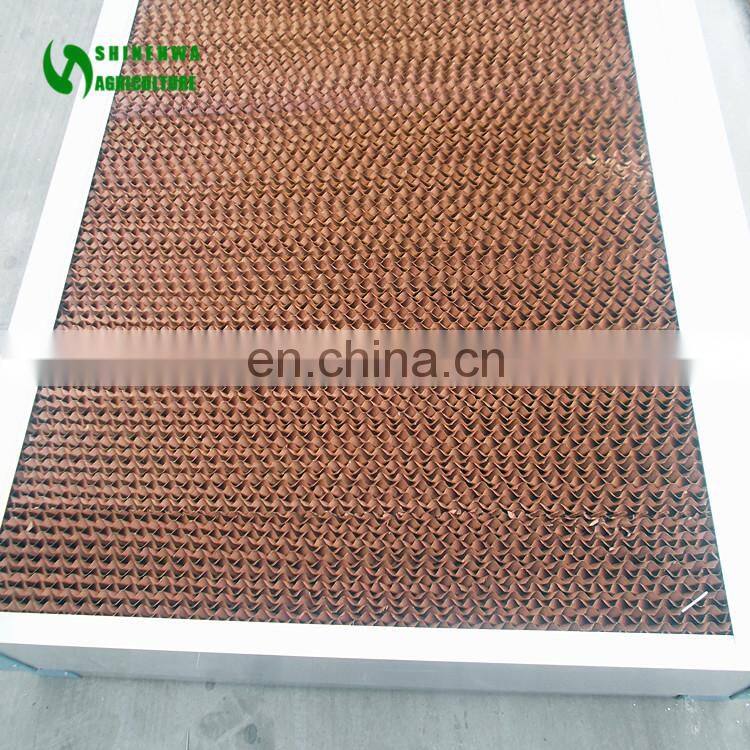

Water Evaporate Cooling Pad For Poultry Farm And Greenhouse

Greenhouse Cooling Pad Abstract

1. It is made from special paper with honeycomb structure. There are two types of wave heights: 5mm and 7mm, and the corrugation is 45° × 45° Interweaving. Adopt new-generation polymers and space crosslink technology for high water absorption, high water proof, mildew-resistance and long service life.

2. The evaporation area is bigger than the surface, with cooling efficiency above 80%.
3. This product contains no surface active agents, absorbing water naturally, diffusingat high speed, with lasting effectiveness. A drop of water is completely diffused within 4-5seconds, which is exceed the national specification standards. The height of natural water absorption is 60~70mm/5min; 200mm/hour, which is fully up to international industrial standards.
4. It contains no phenol or such chemical substances which are easy to cause skin allergies. It is non-toxic, harmless, green, safe, energy-saving, environmental protection,economical and applicable.

1. Working Principle:

2. Installation Diagram

3. Cooling Pad Details:

1)  Corrugated paper with the spatial crossing linking technology, high absorbability, high water resistant, anti-mildew and long service life.

2)  Large evaporation area, cooling efficiency as high as 80%.

3)  The product absorbs water naturally, with fast speed of pervasion and lasting effectiveness. One drop of water can diffuse within 4~5 seconds. The natural absorption height is 60~70mm/5minutes, as 200mm/1.5 hours, having reached international standard.

4)  The product does not contain phenol and other chemicals which is irritant to the skin . It is safe, energy saving, environmental protective, economic and durable.

5)  Galvanized sheet / aluminum panel/stainless steel optional.

The company’s main scope of business includes:

building and installation of glass greenhouse, PC greenhouse, film greenhouse, solar energy greenhouse, sunlight greenhouse;

production and sales of greenhouse parts;

greenhouse system: cooling system, heating system, sunshade system, warming system, irrigation system, lighting system, intelligent sytem, etc.

building light steel structure;

design, plan and building of garden and park and inner greenhouse;

research and promotion of hydroponic vegetable;

research and promotion of other agricultural technology and eco-agriculture.
