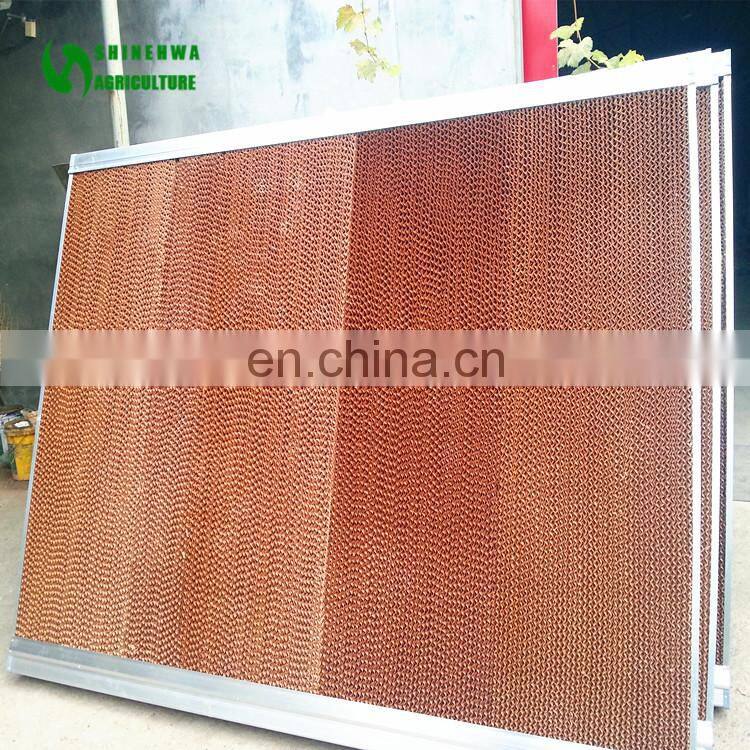

Agricultural Evaporative Cooling Pad For Air Cooling System In Greenhouse

Greenhouse Cooling Pad Abstract

1. It is made from special paper with honeycomb structure. There are two types of wave heights: 5mm and 7mm, and the corrugation is 45° × 45° Interweaving. Adopt new-generation polymers and space crosslink technology for high water absorption, high water proof, mildew-resistance and long service life.

2. The evaporation area is bigger than the surface, with cooling efficiency above 80%.
3. This product contains no surface active agents, absorbing water naturally, diffusingat high speed, with lasting effectiveness. A drop of water is completely diffused within 4-5seconds, which is exceed the national specification standards. The height of natural water absorption is 60~70mm/5min; 200mm/hour, which is fully up to international industrial standards.
4. It contains no phenol or such chemical substances which are easy to cause skin allergies. It is non-toxic, harmless, green, safe, energy-saving, environmental protection,economical and applicable.

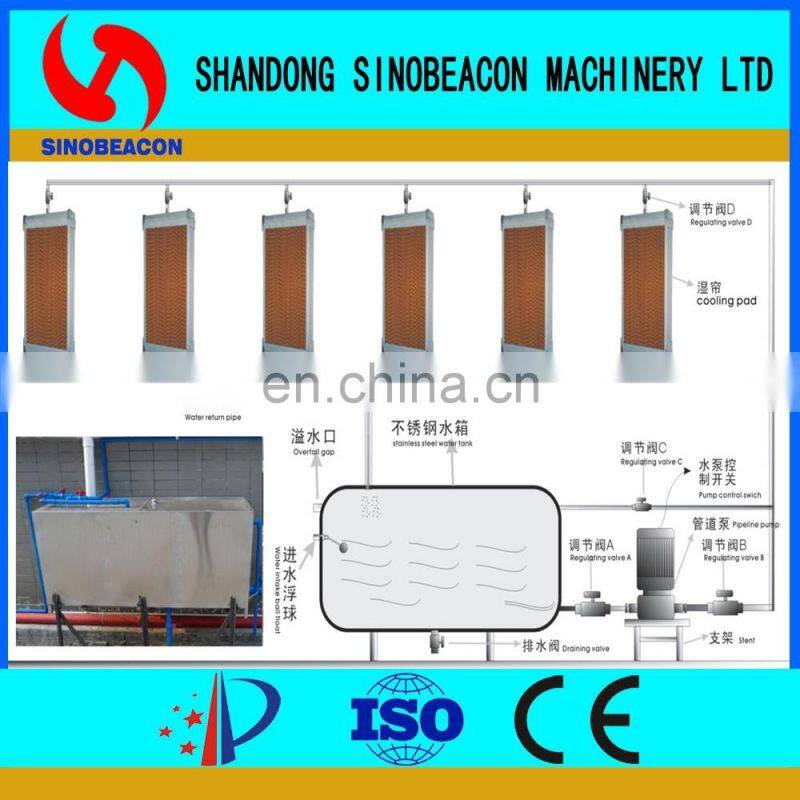

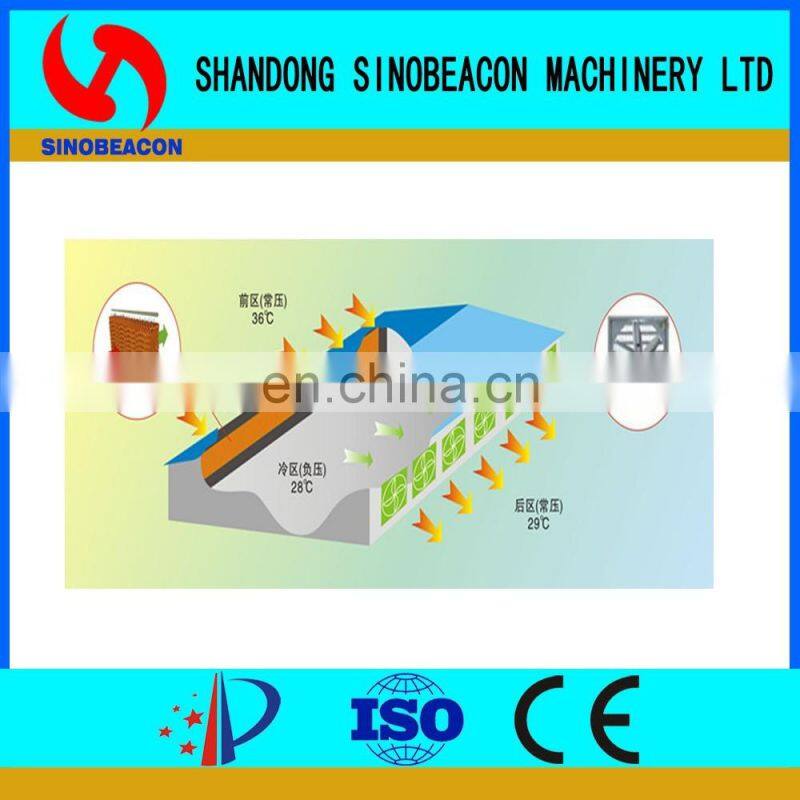

1. Working Principle:

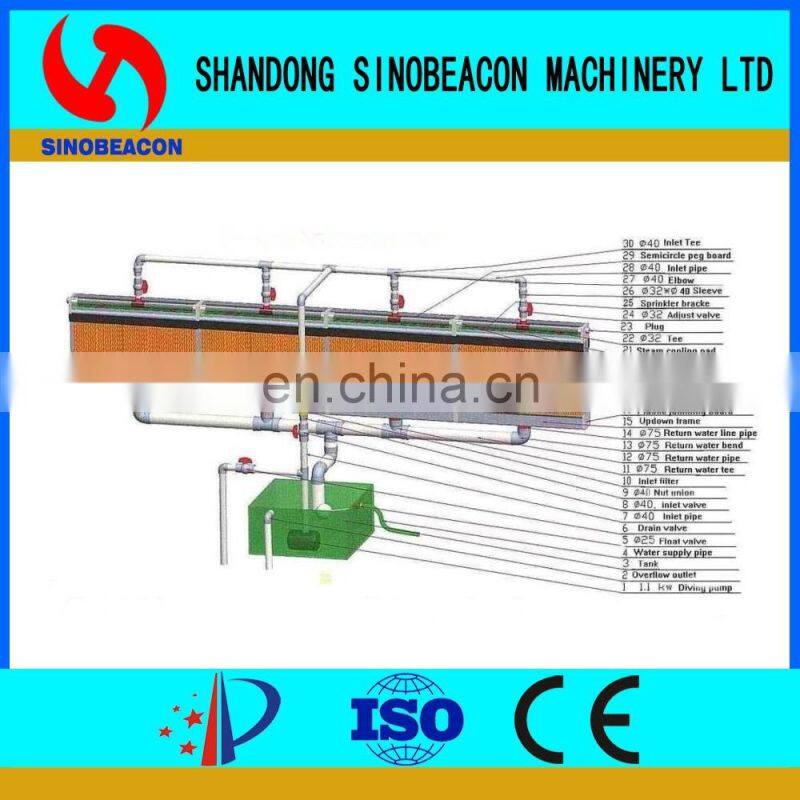

2. Installation Diagram

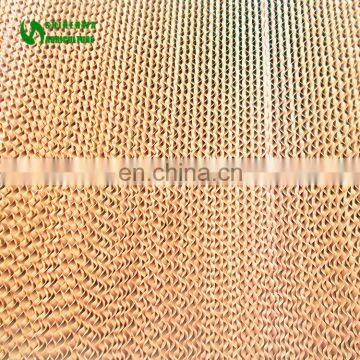

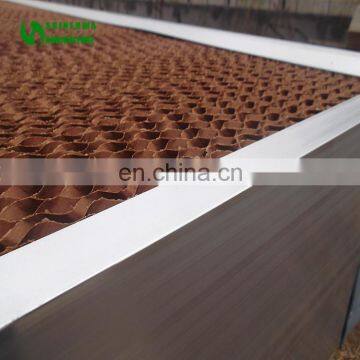

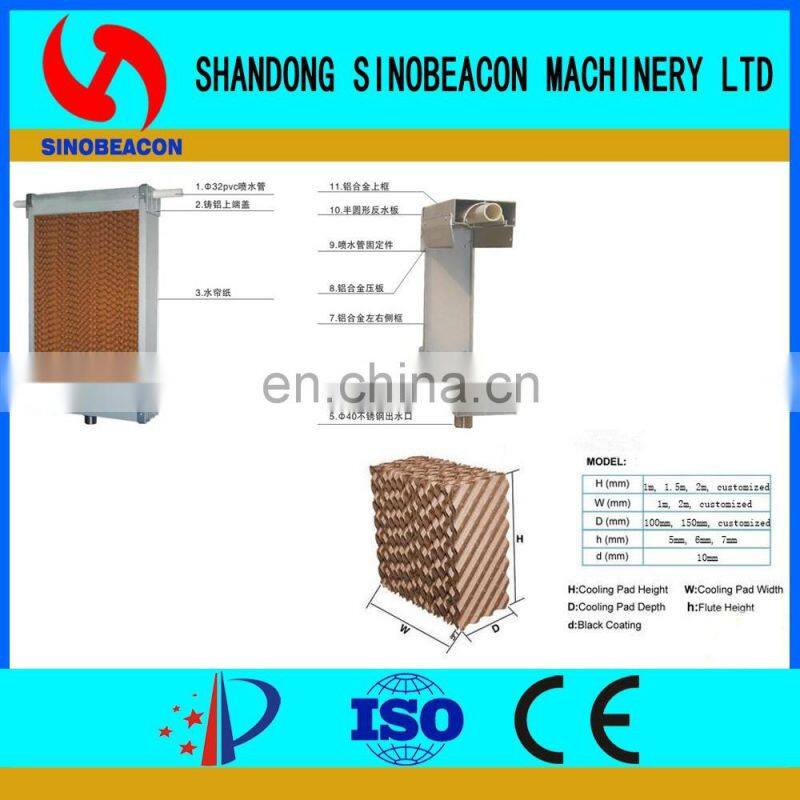

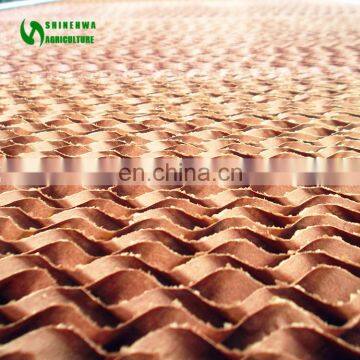

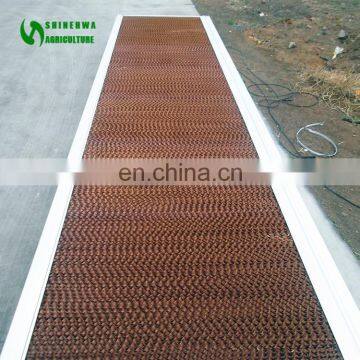

3. Cooling Pad Details:

1)  Corrugated paper with the spatial crossing linking technology, high absorbability, high water resistant, anti-mildew and long service life.

2)  Large evaporation area, cooling efficiency as high as 80%.

3)  The product absorbs water naturally, with fast speed of pervasion and lasting effectiveness. One drop of water can diffuse within 4~5 seconds. The natural absorption height is 60~70mm/5minutes, as 200mm/1.5 hours, having reached international standard.

4)  The product does not contain phenol and other chemicals which is irritant to the skin . It is safe, energy saving, environmental protective, economic and durable.

5)  Galvanized sheet / aluminum panel/stainless steel optional.

The company’s main scope of business includes:

building and installation of glass greenhouse, PC greenhouse, film greenhouse, solar energy greenhouse, sunlight greenhouse;

production and sales of greenhouse parts;

greenhouse system: cooling system, heating system, sunshade system, warming system, irrigation system, lighting system, intelligent sytem, etc.

building light steel structure;

design, plan and building of garden and park and inner greenhouse;

research and promotion of hydroponic vegetable;

research and promotion of other agricultural technology and eco-agriculture.
