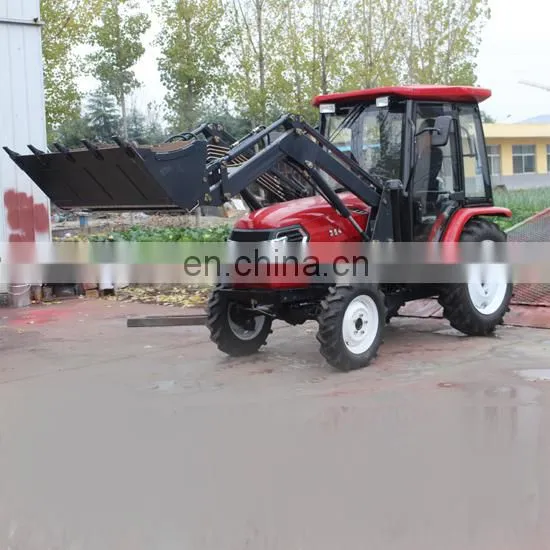

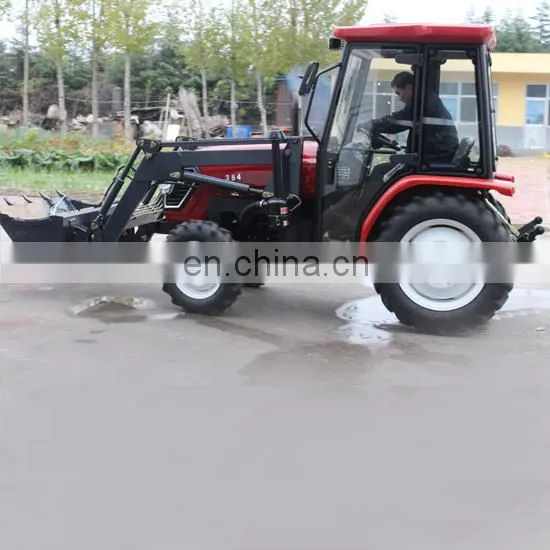

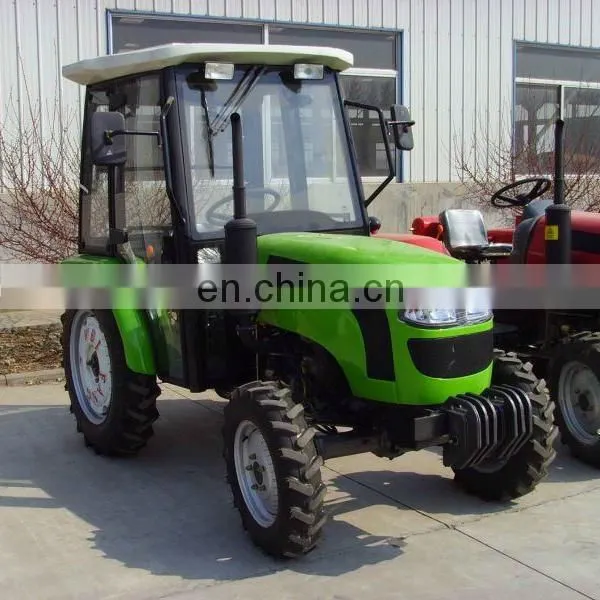

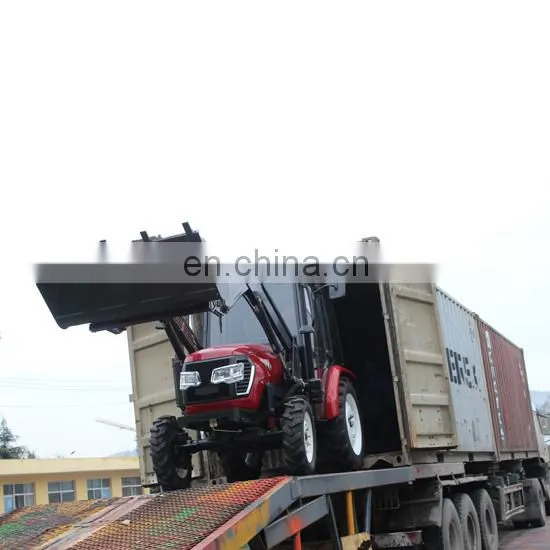

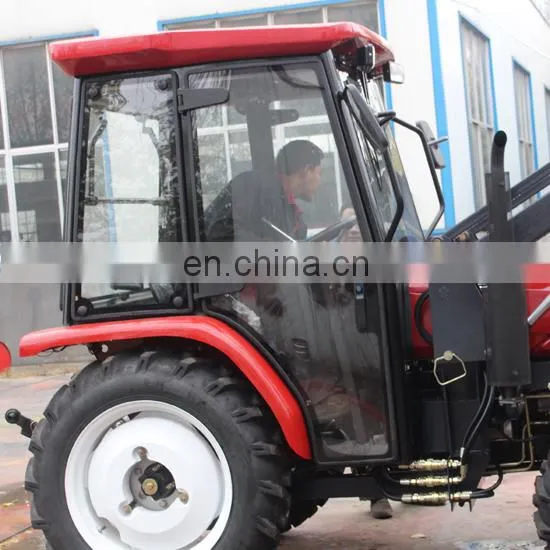

Tractor 354 35hp 4wd agricultural tractor

Name: Tractor 354 35hp 4wd agricultural tractor
Brand: MAP
Availability: InStock

FOB Price

USD $4,700 - $5,700 / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MAP	Place of Origin	Shandong, China
Type	Wheel Tractor	After-sales Service Provided	No overseas service provided
Usage	Farm Tractor
Drive Type	Gear Drive	Condition	New
Power(W)	25.7KW	By wheel	4WD

Agricutural tractor 354
1.4*4 wheel drive
2.Dual clutch
3.Canopy with ROPS

Specification

Model	TY354
Type	4WD Wheeled Type
Length(to the front ballast)	3030mm
Width	1470mm
Height (to the exhaust vent)	1900mm
Front Wheel Tread	1215 Fixed or 1150-1215 Adjusted
Rear Wheel Tread	1300 Fixed or 1300-1350 Adjusted
Axle Base	1710mm
Min. Ground Clearance	347.5mm
Structure weight	1150kgs
Front ballast weight	56kgs
Rear ballast weight	kgs
Rated traction force	683kgs
Engine Model	4122BT
Engine Type	3-Cylinder
Cooler type	Water
Stroke	4 Stroke
Rated Power	26km
Rated Speed	2400r/min
Fuel	Diesel
Front Wheel Tyre	6.00-14
Rear Wheel Tyre	9.5-24
Clutch	Dual-stage clutch
Steering	Power steering
Transmission Type	8+8 with shuttle gearshift
Suspension Type	3-point links
Type and Rev	Semi-independent Type 540/1000
Spline Size	F35 Rectangle Spline with 6 teeth
